216860 Motorola

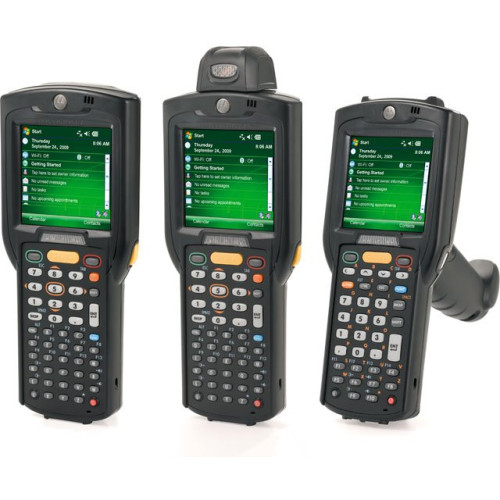

Motorola MC3100 Series Hand Held Computer Part # MC3100-RL4S04E00

Building on the successful MC3000, the new Motorola MC3100 Wireless brings cost-effective mobility and user comfort to key-based applications within the four walls. The rugged and ergonomic MC3100 Wireless offers advanced computing power and data capture capabilities, enhanced security and enterprise class motion sensing capabilities. MC3000 users will require virtually no training on the MC3100 Wireless. Because the MC3000, MC3100 Wireless and many other Motorola mobile computers share a common architectural platform, porting existing applications to the MC3100 Wireless is fast and easy. And compatibility with existing MC3000 accessories provides a seamless upgrade path to the latest in mobile computing.

MC3100-RL4S04E00 - Motorola MC3100 Wireless Handheld Computer

Part Details: MC3100 Wireless, Batch, Windows CE 6.0, 1D Laser Scanner, 2740 mAh Standard Battery, 48 key Keypad, Bluetooth, Color Touchscreen Display. Interface cables and charging cradle sold separately.

Additional Information

Data Collection Type Batch
Keypad 48
Manufacturer Motorola
Product Condition New
RAM Memory 256 MB
Scanner Capability 1D
Scanner Type Laser
Style Full-size
  • Integrated 802.11a/b/g tri-mode radio with comprehensive Voice-over-WLAN support for cost-effective voice and data connectivity
  • Industry leading advanced laser scanning or imaging technology for accurate capture of all linear (1D) and 2D barcodes.
  • 3 different form factors to fit any application use: straight-shooter, gun, or turret
  • Available with Microsoft Windows Mobile 6.X or Windows CE 6.0 operating systems that provide an easy development environment and a large selection of off-the-shelf applications
  • IP54 rated for reliable operation in spite of drops, bumps or exposure to dust and splashing liquids
  • Backward compatibility with MC3000 cradles and accessories allows easy integration without addded costs

Technical Information

  • Connectivity Technology: Batch
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification:
    • 47.24" To Concrete @ -4°F (-20°C) to 122°F (50°C)
    • 59.06" To Concrete73.4°F (23°C)
  • Barcode Symbology Supported: 1D

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC3100
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Name: MC3100 Handheld Terminal

Physical Characteristics

  • Width: 3.3"
  • Depth: 1.8"
  • Length: 7.5"


  • USB: Yes
  • Serial: Yes


  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • Secure Digital (SD) Card
    • MultiMediaCard (MMC)

Display & Graphics

  • Display Screen Type: LCD
  • Backlight Technology: LED
  • Screen Size: 3"
  • Display Color: Color
  • Screen Resolution: 320 x 320

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 624 MHz
  • Processor Type: PXA320

Battery Information

  • Battery Capacity: 2740 mAh
  • Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

  • Bluetooth: Yes
  • Antenna Form Factor: Internal

Touchscreen Information

  • Touchscreen: Yes


  • Operating System: Windows CE 6.0


  • Keyboard Type: Alphanumeric
Extended Details

Recommended Accessories

  • Symbol MC3000 Accessories (VCA3000-01R)

    MC3000 Mobile Computer Accessories, Cable (Auto Charge, 12v) For The MC3x00
    MSRP: $150.00 Price: $113.76
    Ship Free in 3-5 Days
  • Symbol MC3000 Accessories (25-68596-01R)

    MC67 Accessories, USB Client Communication Cable. USB A to Mini B.
    Price: $17.00
    In Stock - Ships Free
  • Symbol MC3000 Accessories (11-69293-01R)

    Fabric holster for the MC3000/MC3100 series, secures to a belt and includes shoulder strap. For use with Rotating Head and Straight Shooter MC3100 variations, not Gun Grip style.
    MSRP: $65.00 Price: $46.97
    In Stock - Ships Free
  • Symbol MC3000 Accessories (CRD3000-1001RR)

    Cradle only, Single Slot and USB/RS-232. Power supply, Communications cables and AC line cord not included.
    MSRP: $160.00 Price: $106.23
    Ship Free in 3-5 Days
  • Symbol MC3000 Accessories (8710-050005-01R)

    Plastic Holster for the MC3000/MC3100 series that secures to a belt.
    Price: $15.69
    In Stock - Ships Free
