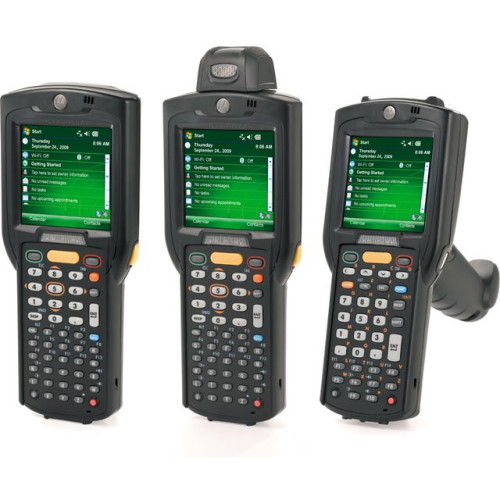

Motorola MC3190 Mobile Computer
Part #: MC3190-GD3H04EIA | SKU: MOT168775

Building on the successful MC3000, the new Motorola MC3190 brings cost-effective mobility and user comfort to key-based applications within the four walls. The rugged and ergonomic MC3190 offers wireless connectivity, advanced computing power and data capture capabilities, enhanced security and enterprise class motion sensing capabilities. MC3000 users will require virtually no training on the MC3190. Because the MC3000, MC3190 and many other Motorola mobile computers share a common architectural platform, porting existing applications to the MC3190 is fast and easy. And compatibility with existing MC3000 accessories provides a seamless upgrade path to the latest in mobile computing.

Motorola MC3190 Mobile Computer

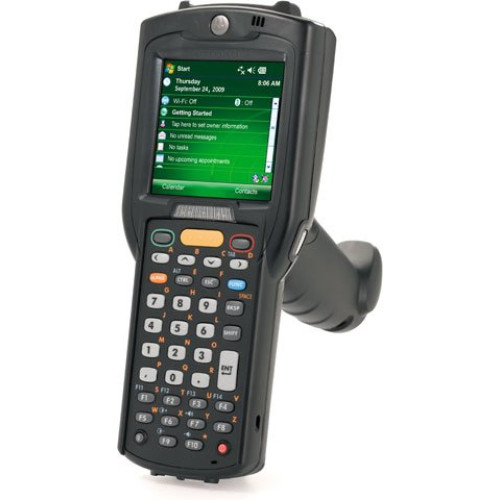

Part Details: MC3190-G, Gun Grip, 2D DPM Imager, 38 key Alpha Shift Keypad, High Capacity Battery, Interactive Sensor Technology, Wi-Fi/Bluetooth, Full Audio, Color Touch Display, Windows CE 6.0 Pro, 256MB RAM/1GB ROM, English. Cables and charging cradle not included.

Additional Information

Manufacturer Motorola
Model Name MC3190
Style Gun

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC3100
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC3190
  • Product Name: MC3190 Handheld Terminal

Technical Information

  • Connectivity Technology: Wireless
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 48" To Concrete

Physical Characteristics

  • Height: 7.5"
  • Width: 3.2"
  • Depth: 6.5"
  • Weight (Approximate): 1.15 lb

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC3190 Handheld Terminal
    • Stylus
    • Strap
    • Li-ion Battery
    • MC3190 Handheld Terminal
    • Stylus
    • Strap
    • Li-ion Battery
  • Certifications & Standards:
    • MIL-STD 810G
    • CCXv4 Certified
    • IP54
    • Electrical Safety:
    • Certified to UL60950-1
    • CSA C22.2No. 60950-1
    • EN60950-1/IEC 60950-1
    • WLAN and Bluetooth:
    • FCC Part 15.247
    • 15.407
    • RSS-210
    • EN 300 328
    • EN 301 893
    • ARIB STD-T33
    • T66
    • T70
    • T71
    • AS/NZS 4268s
    • EMI/RFI Radio Versions:
    • FCC Part 15
    • RSS210 Class B
    • EN 301 489-1
    • 489-17

Network & Communication

  • Bluetooth: Yes
  • Antenna Form Factor: Internal
  • Wireless Security:
    • WPA2
    • 802.1x
    • EAP-TLS
    • TTLS
    • PEAP
    • LEAP
    • EAP-FAST
    • Support for IPv6
    • FIPS140-2 Certified

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • MultiMediaCard (MMC)
    • Secure Digital (SD) Card

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Display & Graphics

  • Screen Size: 3"
  • Display Color: Color
  • Screen Resolution: 320 x 320

Battery Information

  • Battery Capacity: 4800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

  • Keyboard Type: Alpha
  • Number of Keys: 38

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows CE 6.0
