Additional Information
| Display Resolution | 320 x 320 |
|---|---|
| IP Rating | IP54 |
| Interface Options | Bluetooth, Wi-Fi |
| Keypad | 48 |
| Manufacturer | Motorola |
| Model Name | MC3190 |
| Operating System | Windows CE 6.0 Pro |
| Operating Temperature | -4 F - 122 F (-20 C - 50 C) |
| Processor | Marvell PXA320 (624 MHz) |
| RAM Memory | 256 MB |
| Scanner Capability | 2D |
| Scanner Type | Laser |
| Style | Gun |

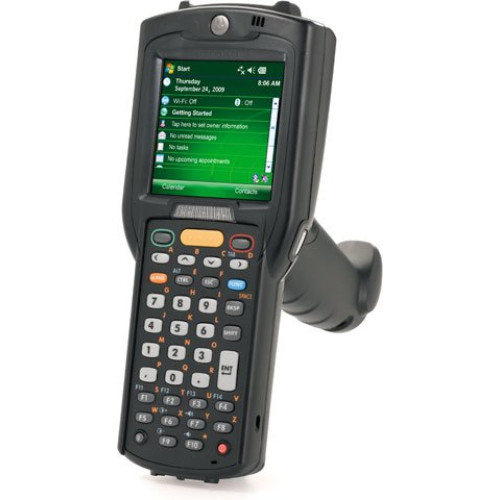

Motorola MC3190 Specs
Technical Information
- Connectivity Technology: Wireless
- Light Source: Laser
- Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Indirect Discharge
- +/-8 kV DC Direct Discharge
- Drop Specification:
- 48" To Concrete @ -4°F (-20°C) to 122°F (50°C)
- 60" To Concrete73.4°F (23°C)
- Barcode Symbology Supported: 2D
General Information
- Product Type: Handheld Terminal
- Product Series: MC3100
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: MC3190-G
- Product Name: MC3190-G Handheld Terminal
Physical Characteristics
- Height: 7.5"
- Width: 3.2"
- Depth: 6.5"
- Weight (Approximate): 1.15 lb
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Package Contents:
- MC3190 Handheld Terminal
- Lithium-Ion Battery
- MC3190 Handheld Terminal
- Lithium-Ion Battery
- Certifications & Standards:
- IP54
- Electrical Safety:
- Certified to UL60950-1
- CSA C22.2No. 60950-1
- EN60950-1/IEC 60950-1
- WLAN and Bluetooth:
- FCC Part 15.247
- 15.407
- RSS-210
- EN 300 328
- EN 301 893
- ARIB STD-T33
- T66
- T70
- T71
- AS/NZS 4268s
- EMI/RFI Radio Versions:
- FCC Part 15
- RSS210 Class B
- EN 301 489-1
- 489-17
- Laser Safety:
- IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
Network & Communication
- Bluetooth: Yes
- Wireless LAN: Yes
- Antenna Form Factor: Internal
- Wireless LAN Standard: IEEE 802.11a/b/g
- Wireless Security:
- WPA2
- 802.1x
- PEAP
- EAP-TLS
- TTLS
- LEAP
- EAP-FAST
Memory
- Flash Memory: 1 GB
- Standard Memory: 256 MB
- Memory Card Slot: Yes
- Memory Card Supported:
- MultiMediaCard (MMC)
- Secure Digital (SD) Card
Display & Graphics
- Display Screen Type: LCD
- Screen Size: 3"
- Display Color: Color
- Screen Resolution: 320 x 320
Battery Information
- Battery Capacity: 4800 mAh
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Processor & Chipset
- Processor Manufacturer: Intel
- Processor Speed: 624 MHz
- Processor Type: XScale
Keyboard/Keypad
- Keyboard Type: Alphanumeric
- Number of Keys: 48
Software
- Operating System: Windows CE 6.0 Professional
Warranty
- Limited Warranty: 1 Year
Touchscreen Information
- Touchscreen: Yes
