177854 Motorola

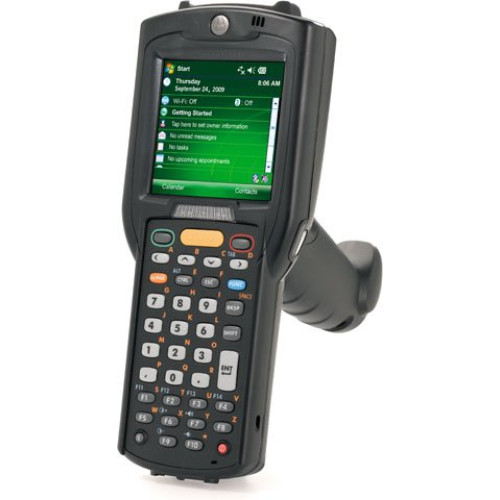

MC3190-GL4H04EAA - Motorola MC3190-G Handheld Computer

MC3190-G, Gun-Grip, Wi-Fi (802.11a/b/g), Bluetooth, Laser Scanner, Windows CE 6.0 Pro, 256MB/1GB Rom, 48 key, High Capacity Battery. Cables and Charging Cradle Not Included.
InStock
Free Shipping

Description

Building on the successful MC3000, the new Motorola MC3190-G brings cost-effective mobility and user comfort to key-based applications within the four walls. The rugged and ergonomic MC3190-G offers wireless connectivity, advanced computing power and data capture capabilities, enhanced security and enterprise class motion sensing capabilities. MC3000 users will require virtually no training on the MC3190-G. Because the MC3000, MC3190-G and many other Motorola mobile computers share a common architectural platform, porting existing applications to the MC3190-G is fast and easy. And compatibility with existing MC3000 accessories provides a seamless upgrade path to the latest in mobile computing.
  • Motorola MAX Rugged meets applicable MIL-STD and IEC specifications for drop, tumble and sealing
  • Mobility Platform Architecture (MPA) 2.0
  • FIPS 140-2 certification and support for the most advanced encryption and authentication algorithms, as well as Virtual Private Networks (VPNs), enables compliance with the most stringent industry security regulations, including sensitive government applications
  • Microsoft Windows Mobile 6.X or Windows CE 6.0 operating system
  • Motorola MAX Sensor
  • Capture the data you need today and tomorrow with industry leading advanced laser scanning or imaging technology
  • Backward compatibility with MC3000 accessories
  • Integrated UHF RFID tag allows enterprises to track and locate MC3100 devices
  • New rugged audio jack
  • Polycarbonate Insert Mold Decorated (IMD) keypad
  • WLAN: 802.11a/b/g tri-mode radio, comprehensive Voiceover-WLAN support
  • WPAN: Bluetooth v2.1 with EDR

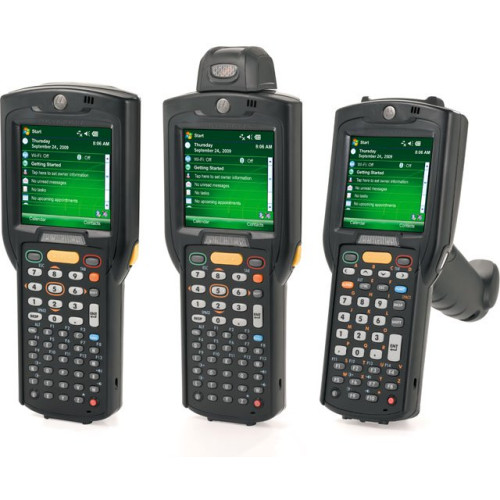

  • Keypad options: 28 key numeric, 38 key shifted alpha, 48 key alphanumeric
  • Compatibility with Motorola Mobility Services Platform (MSP) and Motorola Mobility Suite provides superior centralized and remote management

Additional Information

Style Gun
Manufacturer Motorola

Technical Information

  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 48" To Concrete
  • Barcode Symbology Supported: 1D

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC3100
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC3190-G
  • Product Name: MC3190-G Handheld Terminal

Physical Characteristics

  • Height: 7.5"
  • Width: 3.2"
  • Depth: 6.5"
  • Weight (Approximate): 1.15 lb

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC3190-G Handheld Terminal
    • Battery
    • Stylus
    • Strap
    • MC3190-G Handheld Terminal
    • Battery
    • Stylus
    • Strap
  • Certifications & Standards:
    • Electrical Safety:
    • Certified to UL60950-1
    • CSA C22.2No. 60950-1
    • EN60950-1/IEC 60950-1
    • WLAN and Bluetooth:
    • USA: FCC Part 15.247 15.407
    • Canada: RSS-210
    • RF Exposure:
    • USA: FCC Part 2 FCC OET Bulletin 65 Supplement C
    • Canada: RSS-102
    • EMI/RFI Radio Versions:
    • USA: FCC Part 15
    • Canada: RSS210 Class B
    • EMI/RFI Batch Versions:
    • USA: FCC Part 15
    • Canada: ICES 003 Class B
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2
    • 802.1x
    • EAP-TLS
    • TTLS
    • PEAP
    • LEAP
    • EAP-FAST
    • CCXv4 certified
    • Support for IPv6
    • FIPS140-2 Certified

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital (SD) Card

Display & Graphics

  • Display Screen Type: LCD
  • Screen Size: 3"
  • Display Color: Color
  • Screen Resolution: 320 x 320

Battery Information

  • Battery Capacity: 4800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 624 MHz
  • Processor Type: PXA320

Touchscreen Information

  • Touchscreen: Yes

Keyboard/Keypad

  • Number of Keys: 48

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows CE 6.0 Professional
