Motorola MC3190-S Mobile Computer Motorola MC3190-S Mobile Computer

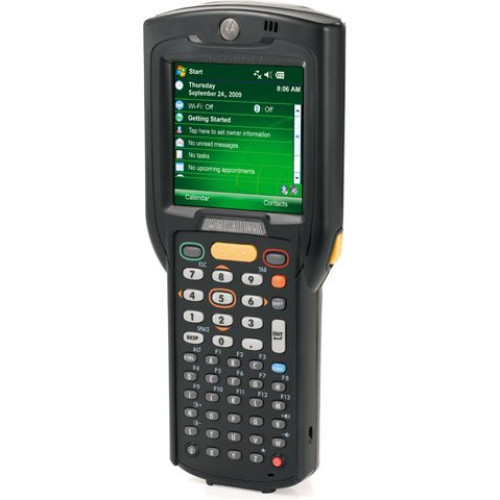

Motorola MC3190-S Mobile Computer
Part #: MC3190-SI2H04E0A | SKU: MOT91628

Building on the successful MC3000, the new Motorola MC3190 brings cost-effective mobility and user comfort to key-based applications within the four walls. The rugged and ergonomic MC3190 offers wireless connectivity, advanced computing power and data capture capabilities, enhanced security and enterprise class motion sensing capabilities. MC3000 users will require virtually no training on the MC3190. Because the MC3000, MC3190 and many other Motorola mobile computers share a common architectural platform, porting existing applications to the MC3190 is fast and easy. And compatibility with existing MC3000 accessories provides a seamless upgrade path to the latest in mobile computing.

Motorola MC3190-S Mobile Computer

Part Details: MC3190-S, Brick Straight Shooter, 2D Imager, 28 key Numeric Keypad, High Capacity Battery, Wi-Fi/Bluetooth, Full Audio, Color Touch Display, Windows CE 6.0 Pro, 256MB RAM/1GB ROM, English. Cables and Charging Cradle Not Included. For the full kit see (Part# MC3190-SI2H04E0A-KIT).

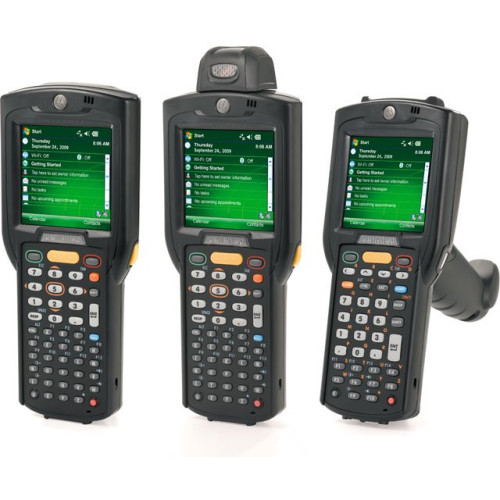

Need a different version of the Motorola MC3190 Mobile Computer? View all 74 configurations

Additional Information

Display Resolution 320 x 320
IP Rating IP54
Interface Options Bluetooth, Wi-Fi.
Manufacturer AIDC Motorola
Model Name MC3190
Operating System Windows CE 6.0
Operating Temperature -4 F - 122 F (-20 C - 50 C)
Processor Marvell PXA320 (624 MHz)
Scanner Capability 2D
Scanner Type Imager
Style Full-size
Motorola MC3190 Specs Motorola MC3190 Specs (pdf)

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-8 kV DC Direct Discharge
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification:
    • 48" To Concrete @ -4°F (-20°C) to 122°F (50°C)
    • 60" To Concrete73.4°F (23°C)

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC3100
  • Product Name: MC3190 Handheld Terminal

Physical Characteristics

  • Height: 7.5"
  • Width: 3.3"
  • Depth: 1.8"
  • Weight (Approximate): 14.95 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC3190 Handheld Terminal
    • Battery
    • MC3190 Handheld Terminal
    • Battery
  • Certifications & Standards:
    • EMI/RFI:
    • Batch
    • USA:FCC Part 15
    • Canada: ICES 003 Class B
    • EU: EN55022 Class B EN55024
    • Japan: CISPR 22
    • Japan:Class B
    • Australia: AS3548
    • Radio:
    • USA: FCC Part 15
    • Canada: RSS210 Class B
    • EU: EN 301 489-1
    • EU: EN 301 489-17
    • Electrical Safety:
    • CSA C22.2 No. 60950-1
    • EN 60950-1
    • IEC 60950-1
    • Certified to UL / cUL 60950-1
    • Laser Safety:
    • EN 60825-1
    • IEC 60825-1
    • IEC Class2/FDA Class II
    • RF Exposure:
    • USA: FCC Part 2
    • USA:FCC OET Bulletin 65 Supplement C
    • Canada: RSS-102
    • EU: EN 62311
    • Australia: Radiocommunications Standard 2003
    • WLAN:
    • Tri-mode IEEE 802.11a/b/g
    • CCXv4 certified
    • Support for IPv6
    • FIPS140-2 Certified
    • WPAN:
    • (Bluetooth Support) Class II
    • v2.1 with Enhanced Data Rate (EDR)
    • Integrated antenna

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2
    • 802.1x
    • EAP-TLS
    • PEAP
    • TTLS
    • LEAP
    • EAP-FAST

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • Secure Digital (SD) Card
    • MultiMediaCard (MMC)

Display & Graphics

  • Display Screen Type: LCD
  • Screen Size: 3"
  • Display Color: Color
  • Screen Resolution: 320 x 320

Battery Information

  • Battery Capacity: 4800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Keyboard/Keypad

  • Keyboard Type: Numeric
  • Number of Keys: 28

Software

  • Operating System: Windows CE 6.0 Professional

Warranty

  • Limited Warranty: 1 Year

Touchscreen Information

  • Touchscreen: Yes
Extended Details
