177855 Motorola

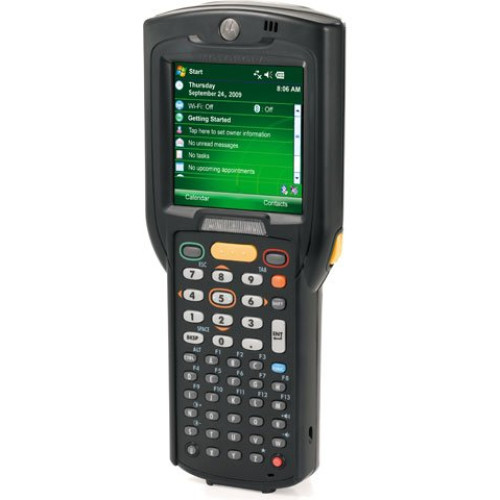

MC3190-SI2H24E0A - Motorola MC3190-S Handheld Computer

MC3190-S, Brick Straight Shooter, 2D Imager, 28 key Numeric Keypad, High Capacity Battery, Wi-Fi/Bluetooth, Full Audio, Color Touch Display, Windows Mobile 6.5 Classic, 256MB RAM/1GB ROM, English. Cables and charging cradle not included.
InStock
Free Shipping

Description

Building on the successful MC3000, the new Motorola MC3190-S brings cost-effective mobility and user comfort to key-based applications within the four walls. The rugged and ergonomic MC3190-S offers wireless connectivity, advanced computing power and data capture capabilities, enhanced security and enterprise class motion sensing capabilities. MC3000 users will require virtually no training on the MC3190-S. Because the MC3000, MC3190-S and many other Motorola mobile computers share a common architectural platform, porting existing applications to the MC3190-S is fast and easy. And compatibility with existing MC3000 accessories provides a seamless upgrade path to the latest in mobile computing.
  • Motorola MAX Rugged meets applicable MIL-STD and IEC specifications for drop, tumble and sealing
  • Mobility Platform Architecture (MPA) 2.0
  • FIPS 140-2 certification and support for the most advanced encryption and authentication algorithms, as well as Virtual Private Networks (VPNs), enables compliance with the most stringent industry security regulations, including sensitive government applications
  • Microsoft Windows Mobile 6.X or Windows CE 6.0 operating system
  • Motorola MAX Sensor
  • Capture the data you need today and tomorrow with industry leading advanced laser scanning or imaging technology
  • Backward compatibility with MC3000 accessories
  • Integrated UHF RFID tag allows enterprises to track and locate MC3100 devices
  • New rugged audio jack
  • Polycarbonate Insert Mold Decorated (IMD) keypad
  • WLAN: 802.11a/b/g tri-mode radio, comprehensive Voiceover-WLAN support
  • WPAN: Bluetooth v2.1 with EDR
  • Keypad options: 28 key numeric, 38 key shifted alpha, 48 key alphanumeric
  • Compatibility with Motorola Mobility Services Platform (MSP) and Motorola Mobility Suite provides superior centralized and remote management

Additional Information

Style Full-size
Manufacturer Motorola

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Indirect Discharge
    • +/-8 kV DC Direct Discharge
  • Drop Specification:
    • 48" To Concrete @ -4°F (-20°C) to 122°F (50°C)
    • 60" To Concrete73.4°F (23°C)

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC3100
  • Product Name: MC3190 Handheld Terminal

Physical Characteristics

  • Height: 7.5"
  • Width: 3.3"
  • Depth: 1.8"
  • Weight (Approximate): 14.95 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC3190 Handheld Terminal
    • Battery
    • MC3190 Handheld Terminal
    • Battery
  • Certifications & Standards:
    • EMI/RFI:
    • Batch
    • USA:FCC Part 15
    • Canada: ICES 003 Class B
    • EU: EN55022 Class B EN55024
    • Japan: CISPR 22
    • Japan:Class B
    • Australia: AS3548
    • Radio:
    • USA: FCC Part 15
    • Canada: RSS210 Class B
    • EU: EN 301 489-1
    • EU: EN 301 489-17
    • Electrical Safety:
    • CSA C22.2 No. 60950-1
    • EN 60950-1
    • IEC 60950-1
    • Certified to UL / cUL 60950-1
    • Laser Safety:
    • EN 60825-1
    • IEC 60825-1
    • IEC Class2/FDA Class II
    • RF Exposure:
    • USA: FCC Part 2
    • USA:FCC OET Bulletin 65 Supplement C
    • Canada: RSS-102
    • EU: EN 62311
    • Australia: Radiocommunications Standard 2003
    • WLAN:
    • Tri-mode IEEE 802.11a/b/g
    • CCXv4 certified
    • Support for IPv6
    • FIPS140-2 Certified
    • WPAN:
    • (Bluetooth Support) Class II
    • v2.1 with Enhanced Data Rate (EDR)
    • Integrated antenna

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2
    • 802.1x
    • TTLS
    • EAP-TLS
    • PEAP
    • LEAP
    • EAP-FAST

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • MultiMediaCard (MMC)
    • Secure Digital (SD) Card

Display & Graphics

  • Display Screen Type: LCD
  • Screen Size: 3"
  • Display Color: Color
  • Screen Resolution: 320 x 320

Battery Information

  • Battery Capacity: 4800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Keyboard/Keypad

  • Keyboard Type: Numeric
  • Number of Keys: 28

Software

  • Operating System: Windows Mobile 6.5 Classic

Warranty

  • Limited Warranty: 1 Year

Touchscreen Information

  • Touchscreen: Yes
