Additional Information
| Display Resolution | 320 x 320 |
|---|---|
| IP Rating | IP54 |
| Interface Options | Bluetooth, Wi-Fi |
| Keypad | 48 |
| Manufacturer | Motorola |
| Model Name | MC3190 |
| Operating System | Windows CE 6.0 Pro |
| Operating Temperature | -4 F - 122 F (-20 C - 50 C) |
| RAM Memory | 256 MB |
| Scanner Capability | 2D |
| Scanner Type | Imager |
| Style | Full-size |

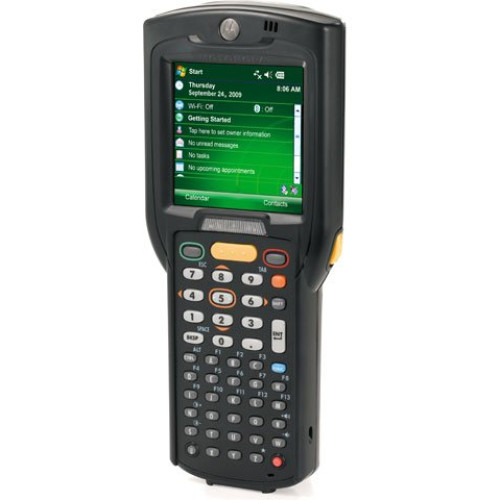

Motorola MC3190 Specs
Technical Information
- Connectivity Technology: Wireless
- Image Sensor: Imager
- Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
- Drop Specification:
- 48" To Concrete
- 60" To Concrete @ 163.4°F (73°C)
General Information
- Product Type: Handheld Terminal
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: MC3100
- Product Name: MC3190 Handheld Terminal
Physical Characteristics
- Width: 3.3"
- Depth: 1.8"
- Length: 7.5"
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Package Contents:
- MC3190 Handheld Terminal
- Battery
- MC3190 Handheld Terminal
- Battery
- Certifications & Standards:
- EMI/RFI:
- Batch
- USA:FCC Part 15
- Canada: ICES 003 Class B
- EU: EN55022 Class B EN55024
- Japan: CISPR 22
- Japan:Class B
- Australia: AS3548
- Radio:
- USA: FCC Part 15
- Canada: RSS210 Class B
- EU: EN 301 489-1
- EU: EN 301 489-17
- Electrical Safety:
- CSA C22.2 No. 60950-1
- EN 60950-1
- IEC 60950-1
- Certified to UL / cUL 60950-1
- Laser Safety:
- EN 60825-1
- IEC 60825-1
- IEC Class2/FDA Class II
- RF Exposure:
- USA: FCC Part 2
- USA:FCC OET Bulletin 65 Supplement C
- Canada: RSS-102
- EU: EN 62311
- Australia: Radiocommunications Standard 2003
- WLAN:
- Tri-mode IEEE 802.11a/b/g
- CCXv4 certified
- Support for IPv6
- FIPS140-2 Certified
- WPAN:
- (Bluetooth Support) Class II
- v2.1 with Enhanced Data Rate (EDR)
- Integrated antenna
Network & Communication
- Bluetooth: Yes
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11a/b/g
- Wireless Security:
- WPA2 (Personal or Enterprise)
- 802.1x
- EAP-TLS
- TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
- PEAP (TLS, MSCHAPv2, EAP-GTC)
- LEAP, EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)
- CCXv4 certified
- support for IPv6
- FIPS140-2 Cer
Memory
- Flash Memory: 1 GB
- Standard Memory: 256 MB
- Memory Card Slot: Yes
- Memory Card Supported:
- Secure Digital (SD) Card
- MultiMediaCard (MMC)
Display & Graphics
- Display Screen Type: LCD
- Screen Size: 3"
- Display Color: Color
- Screen Resolution: 320 x 320
Battery Information
- Battery Capacity: 4800 mAh
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Processor & Chipset
- Processor Manufacturer: Intel
- Processor Speed: 624 MHz
- Processor Type: XScale
Keyboard/Keypad
- Keyboard Type: Alphanumeric
- Number of Keys: 48
Software
- Operating System: Windows CE 6.0 Professional
Warranty
- Limited Warranty: 1 Year
Touchscreen Information
- Touchscreen: Yes
