Additional Information
| Frequency | UHF |
|---|---|
| Keypad | Alphanumeric |
| Manufacturer | Motorola |
| Operating System | Windows Mobile 6.5 |
| Product Condition | New |
| RAM Memory | 256 MB |
| Scanner Type | Imager |
| Style | Handheld |
- Captures barcodes and UHF RFID tags
- Provides advanced, high efficiency read performance for faster read rates and higher throughput
- Orientation-insensitive design eliminates the need for precise reader and tag alignment, for faster and more accurate reads
- Pinpoint locating technolog
- Easy-to-use Application Programming Interfaces (APIs)
- FIPS 140-2 certified
- Windows Mobile 6.5 based
- Meets and exceeds MIL-STD 810F standards for drop, tumble and sealing
- Built for all-day enterprise use
- Motorola MAX Data Capture
- 3" QVGA 320 x 320 display with backlight

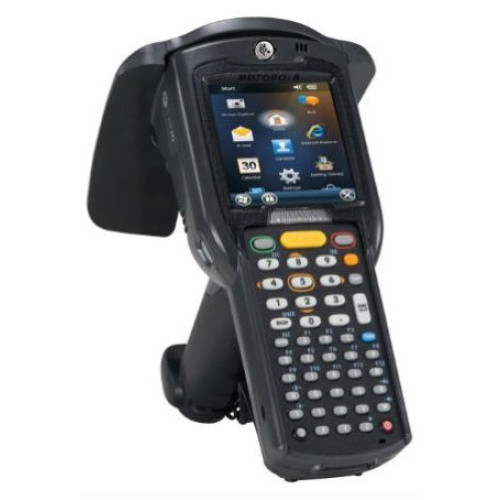

Motorola MC3190-Z Specs
Technical Information
- Connectivity Technology: Wireless
- Image Sensor: Imager
- Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
- Drop Specification: 48" To Concrete @ 14°F (-10°C) to 122°F (50°C)
- Barcode Symbology Supported: 2D
General Information
- Product Type: Handheld Terminal
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: MC3190-Z
- Product Name: MC3190-Z Handheld Terminal
Physical Characteristics
- Height: 7.6"
- Width: 4.7"
- Depth: 6.4"
- Weight (Approximate): 1.43 lb
Other
- Package Contents:
- MC3190-Z Handheld Terminal
- Li-Ion Battery
- MC3190-Z Handheld Terminal
- Li-Ion Battery
- Certifications & Standards:
- CCXv4 Certified
- FIPS140-2 Certified
- WiFi Certified
- IP54
- MIL-STD 810F
- EMI/EMC:
- FCC Part 15 Class B
- ICES 003 Class B
- IEC 60601-1-2
- EN 301 489-1
- EN 301 489-17
- EN 301 489-3
- Electrical Safety:
- UL 60950-1
- CSA C22.2 No. 60950-1
- IEC 60950-1
- RF Exposure:
- FCC Part 2
- FCC OET Bulletin 65
- Supplement C
- RSS-102
- WLAN, Bluetooth and RFID:
- FCC Part 15.247
- FCC Part 15.407
- RSS-210
- Laser Safety:
- A21CFR1040.10
- IEC/EN 60825-1
Network & Communication
- Bluetooth: Yes
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11a/b/g
- Wireless Security:
- WPA2
- 802.1x
- EAPTLS
- TTLS
- PEAP
- LEAP
- EAP-FAST
- Support for IPv6
Display & Graphics
- Screen Mode: QVGA
- Screen Size: 3"
- Display Color: Color
- Screen Resolution: 320 x 320
Processor & Chipset
- Processor Manufacturer: Marvell
- Processor Speed: 624 MHz
- Processor Type: XScale
Battery Information
- Battery Capacity: 4400 mAh
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
RFID
- Maximum Operating Frequency: 928 MHz
- Minimum Operating Frequency: 902 MHz
Keyboard/Keypad
- Keyboard Type: Alphanumeric
- Number of Keys: 48
Memory
- Flash Memory: 1 GB
- Standard Memory: 256 MB
Touchscreen Information
- Touchscreen: Yes
Warranty
- Limited Warranty: 1 Year
Software
- Operating System: Windows Mobile 6.5
