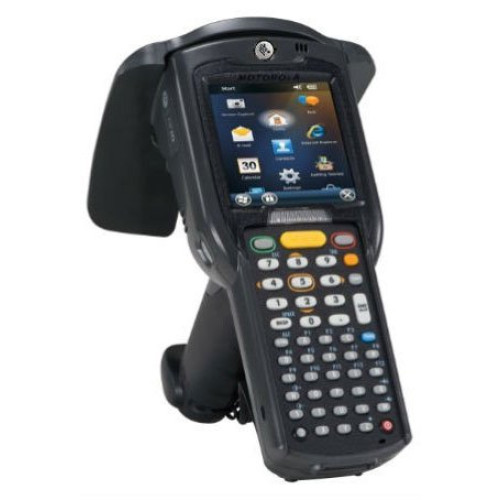

Motorola MC3190-Z RFID Reader Motorola MC3190-Z RFID Reader

Motorola MC3190-Z RFID Reader
Part #: MC319Z-GL4H24E0W | SKU: MOT103352

The Motorola MC3190-Z is a new class of RFID reader bringing the benefits of RFID from industrial environments to the carpeted space. The MC3190-Z features the ergonomics required for all day comfort and ease of use. At just half the weight of its industrial counterparts, the MC3190-Z is the lightest UHF RFID rugged handheld reader on the market, offering a well-balanced design and a convenient gun-style grip for read intensive applications. The MC3190-Z's advanced, high efficiency Motorola RFID reader engine enables faster read rates and higher throughput, making it an excellent addition to retail stores, enterprise office environments and other markets including healthcare.

Motorola MC3190-Z RFID Reader

Part Details: MC3190-Z, Wi-Fi (802.11a/b/g), RFID Reader, UHF, Windows Mobile 6.5, 1D Laser Scanner, 256MB/1GB, 48 key Keypad, Bluetooth, 4800 mAh High Capacity Battery. Interface cables and charging cradle sold separately.
Need a different version of the Motorola MC3190-Z RFID Reader? View all 5 configurations

Additional Information

Frequency UHF
Keypad Alphanumeric
Manufacturer Motorola
Model Name MC3190-Z
Operating System Windows Mobile 6.5
RAM Memory 256 MB
Scanner Type Laser
Style Handheld
Motorola MC3190-Z Specs Motorola MC3190-Z Specs (pdf)

Technical Information

  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 48" To Concrete @ 14°F (-10°C) to 122°F (50°C)
  • Barcode Symbology Supported: 1D

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC3190-Z
  • Product Name: MC3190-Z Handheld Terminal

Physical Characteristics

  • Height: 7.6"
  • Width: 4.7"
  • Depth: 6.4"
  • Weight (Approximate): 1.43 lb

Other

  • Certifications & Standards:
    • CCXv4 Certified
    • FIPS140-2 Certified
    • WiFi Certified
    • IP54
    • MIL-STD 810F
    • EMI/EMC:
    • FCC Part 15 Class B
    • ICES 003 Class B
    • IEC 60601-1-2
    • EN 301 489-1
    • EN 301 489-17
    • EN 301 489-3
    • Electrical Safety:
    • UL 60950-1
    • CSA C22.2 No. 60950-1
    • IEC 60950-1
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin 65
    • Supplement C
    • RSS-102
    • WLAN, Bluetooth and RFID:
    • FCC Part 15.247
    • FCC Part 15.407
    • RSS-210
    • Laser Safety:
    • A21CFR1040.10
    • IEC/EN 60825-1

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2
    • 802.1x
    • EAPTLS
    • TTLS
    • PEAP
    • LEAP
    • EAP-FAST
    • Support for IPv6

Display & Graphics

  • Screen Mode: QVGA
  • Screen Size: 3"
  • Display Color: Color
  • Screen Resolution: 320 x 320

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB

Battery Information

  • Battery Capacity: 4400 mAh
  • Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
  • Number of Keys: 48

RFID

  • Maximum Operating Frequency: 928 MHz
  • Minimum Operating Frequency: 902 MHz

Warranty

  • Limited Warranty: 1 Year

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Embedded Handheld 6.5.3
