Additional Information
| Display Resolution | 480 x 800 |
|---|---|
| IP Rating | IP54 |
| Interface Options | Bluetooth, Wi-Fi |
| Manufacturer | Motorola |
| Model Name | MC40 |
| Operating System | Android, Android 2.3 |
| Operating Temperature | 32 F - 122 F (0 C - 50 C) |
| Processor | Texas Instruments OMAP4 (800 MHz) |
| RAM Memory | 1 GB |
| Scanner Capability | 1D, 2D |
| Scanner Type | Imager |
| Style | Phone-size |

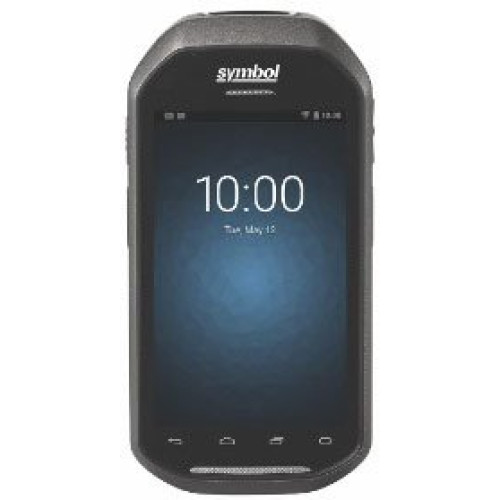

Motorola MC40 Specs
Technical Information
- Connectivity Technology: Wireless
- Image Sensor: Imager
- Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-2 kV DC Indirect Discharge
- Drop Specification:
- 48" To Plywood
- 36" To Tile Over Concrete
- Barcode Symbology Supported:
- 1D
- 2D
General Information
- Product Type: Handheld Terminal
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: MC40
- Product Name: MC40 Handheld Mobile Computer
Physical Characteristics
- Height: 5.7"
- Width: 2.9"
- Depth: 0.8"
- Weight (Approximate): 9.09 oz
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Package Contents:
- MC40 Handheld Mobile Computer
- Battery Lithium-Ion
- MC40 Handheld Mobile Computer
- Battery Lithium-Ion
- Certifications & Standards:
- WLAN:
- EN 300 328
- EN 301 893
- FCC Part 15.247
- 15.407
- RSS-210
- EMI/RFI:
- EN 301 489-1
- 17
- EN 55022 (Class B)
- EN 55024
- EN 61000-3-2
- EN 61000-3-3
- IEC/EN 60601-1-2
- 47 CFR Part 15
- Subpart B
- Class B
- ICES 003 Issue 5
- Class B
- Electrical Safety:
- UL 60950-1
- EN 60950-1
- IEC 60950-1
- Others:
- IP54
Network & Communication
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11a/b/g/n
- Wireless Security:
- Legacy
- WPA and WPA2 Encryption
- WEP (40 and 128 bit)
- TKIP and AES Authentication
- TLS
- TTLS (MS-CHAP)
- TTLS (MS-CHAP v2)
- TTLS (PAP)
- PEAP (MS-CHAP v2)
- PEAP (GTC)
- FAST (MS-CHAP v2)
- FAST (GTC)
- LEAP
Display & Graphics
- Screen Mode: VGA
- Screen Size: 4.3"
- Screen Resolution: 480 x 800
Battery Information
- Battery Capacity: 2680 mAh
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Processor & Chipset
- Processor Speed: 800 MHz
- Processor Type: OMAP 4
Memory
- Flash Memory: 8 GB
- Standard Memory: 1 GB
Software
- Operating System: Android 2.3 Gingerbread
Warranty
- Limited Warranty: 1 Year
Touchscreen Information
- Touchscreen: Yes
