Replacement Part is Available

MC55x, EVM, MC55XL, WLAN, 2D Imager (SE4710), Camera, WEHH 65, 512MB/2GB, NumericKey, Bluetooth, 3600 MAH Battery, Worldwide Except US. Interface Cables And Charging Cradle Sold Separately.
MSRP: $2,014.00 Price: $1,550.78
In Stock - Ships Free

Product was successfully added to your shopping cart.

Continue Shopping
103339 Motorola

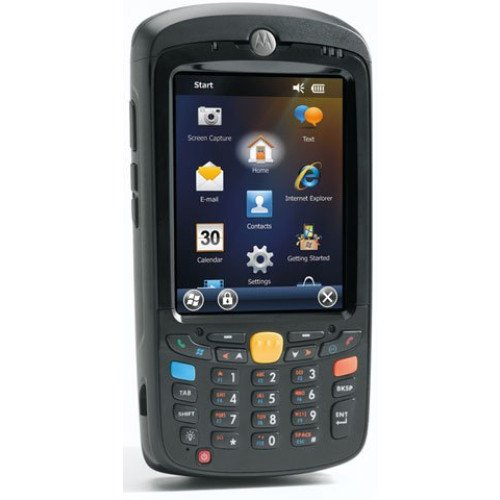

Motorola MC55A0 Hand Held Computer Part # MC55A0-P70SWRQA9WR

When your managers and task workers are on the move inside your facility, the rugged Motorola MC55A0 mobile computer keeps everything they need to take instant action at their fingertips. Pure business on the inside and smart styling on the outside, the MC55A0 lets your workers access business applications, scan bar codes, snap a photo, view a video and place a private or push-to-talk call to virtually anyone in your facility - all with a single device. The sleek lightweight design is not only pocketable, it is at home in front of customers and patients. And with the most rugged design in this product class, your workers get a device they can count on every day - while you get a device you can count on for years.

MC55A0-P70SWRQA9WR - Motorola MC55A0 Handheld Computer

Part Details: MC55A0, Wi-Fi (802.11a/b/g), Bluetooth, 2D Imager DL, Camera, Windows Mobile 6.5, Numeric Keyboard, 256MB/1GB Flash, Extended Battery. Interface cables and charging cradle sold separately. Single slot charging cradle kit (Part# CRD5500-100UES). Four slot charging cradle kit (Part# CRD5501-401CES), requires US AC line cord (Part# 23844-00-00R).

Additional Information

Data Collection Type Wireless
Display Resolution 320 x 240
Drop Rating 6 ft.1.8 m
IP Rating IP64
Manufacturer Motorola
Network Connectivity 802.11a, 802.11a/b/g, 802.11g, Bluetooth
Operating System Windows Mobile 6.5
Operating Temperature 14 F - 122 F
Processor 806 MHz Marvell PXA320
Product Condition New
RAM Memory 256 MB
Scanner Capability 2D
Scanner Type Imager
Style Phone-size
  • 802.11a/b/g tri-mode radio connects to both 2.4GHz and 5GHz WLANs for cost-effective voice and data connectivity
  • Marvell PXA320 806 MHz processor provides best-in-class application performance even on the most demanding multimedia applications
  • Four barcode scanning options that can read linear (1D), 2D, and even damaged or poor quality codes
  • Motorola MAX (IP64) industry leading rugged design and reliability in a wide range of environments.
  • Optional 3.2 megapixel auto-focus flash-enabled digital color camera with user-controllable flash to capture photos, videos, and documents
  • Advanced sleek design for ease of use and user comfort with one-handed operation
  • Backwards compatibility with all MC55 cradles, batteries, and accessories for easy integration without addded costs

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Contact Discharge
  • Drop Specification: 72" To Concrete

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC55A0
  • Product Name: MC55A0 Handheld Terminal

Physical Characteristics

  • Height: 5.8"
  • Width: 3"
  • Depth: 1.1"
  • Weight (Approximate): 11.11 oz


  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC55A0 Handheld Terminal
    • Li-Ion Battery
    • MC55A0 Handheld Terminal
    • Li-Ion Battery
  • Certifications & Standards:
    • Electrical Safety:
    • Certified to UL/cUL 60950-1, IE C/EN60950-1
    • WLAN and Bluetooth (PAN):
    • USA:FCC Part 15.247, 15.407
    • Canada:RSS-210, RSS 310
    • RF Exposure:
    • USA:FCC Part 2, FCC OET Bulletin 65, Supplement C
    • Canada: RSS-102
    • EMI/RFI:
    • North America: FCC Part 15, Class B
    • Canada: ICES 003 Class B
    • Laser Safety:
    • IE C/Class 2/FDA ll in accordance with IE C60825-1/EN 60825-1

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Network Band: Tri Band
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2
    • WEP (40 or 128 bit)
    • TKIP
    • TLS
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS (CHAP)
    • TTLS-MD5
    • TTLS-PAP
    • PEAP-TLS
    • PEAP (MS-CHAP v2)
    • AES
    • LEAP
    • CCXv4 certified
    • FIPS 140-2 certified

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 3600 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)


  • Flash Memory: 1 GB
  • Standard Memory: 256 MB

Touchscreen Information

  • Touchscreen: Yes


  • Operating System: Windows Mobile 6.5 Classic


  • Limited Warranty: 12 Month


  • Keyboard Type: Numeric
Extended Details
