Additional Information
| Display Resolution | 640 x 480 |
|---|---|
| IP Rating | IP67 |
| Interface Options | Bluetooth, Wi-Fi., HSPA+ |
| Manufacturer AIDC | Motorola |
| Model Name | MC67 |
| Operating System | Windows Mobile, Windows Mobile 6.5 |
| Operating Temperature | -4 F - 122 F (-20 C - 50 C) |
| Processor | Texas Instruments OMAP4 (1 GHz) |
| RAM Memory | 512 MB |
| Scanner Capability | 1D, 2D |
| Scanner Type | Imager |
| Style | Phone-size |

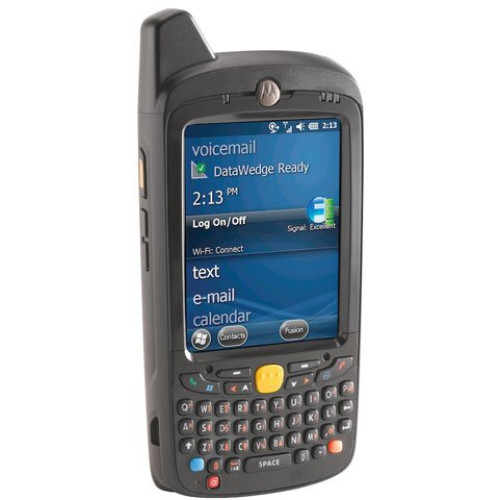

Motorola MC67 Specs
Technical Information
- Connectivity Technology: Wireless
- Image Sensor: Imager
- Electrostatic Discharge (ESD):
- +/-15 kV AC Air Discharge
- +/-8 kV AC Indirect Discharge
- +/-8 kV AC Direct Discharge
- Drop Specification:
- 72" @ -4°F (-20°C) to 122°F (50°C)
- 96"
General Information
- Product Type: Handheld Terminal
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: MC67
- Product Name: MC67 Mobile Computer
Physical Characteristics
- Width: 3"
- Depth: 1.3"
- Length: 6.4"
- Weight (Approximate): 13.58 oz
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority:
- RoHS
- WEEE
- Package Contents:
- MC67 Mobile Computer
- Battery
- MC67 Mobile Computer
- Battery
- Certifications & Standards:
- Mil-StD 810G
- IP67
- Laser Safety:
- EN 60825-1
- IEC 60825-1
- IEC Class 2/FDA Class II
- EMI/RFI:
- FCC Part 15, Class B
- ICES-003 Class B
- EN55022 Class B
- EN 55024
- EN 301 489-1
- EN 301 489-3
- EN 301 489-7
- EN 301 489-17
- EN 301 489-24
- EN 60601-1-2
- EN 50121-3-2
- EN 50121-4
- AS/NZS CISPR 22
- Electrical Safety:
- IEC/UL/CSA/EN 60950-1
- RF Exposure:
- FCC Part 2
- FCC OET Bulletin 65 Supplement C
- RSS-102
- EN 50360
- EN 62311
- Radio Communications Standard 2003
- WLAN and Bluetooth (PAN):
- FCC Part 15.247, 15.407
- RSS-210
- EN 300 328
- EN 301 893
- AS/NZS 4268
- Wireless Wide Area Network:<br> GSM-HSDPA/HSUPA
- 3GPP TS 51.010
- 3GPP TS 34.121
- 3GPP TS 34.123
- GCF and PTCRB Approved
- FCC Part 22, Part 24
- RSS-132
- RSS-133
- EN301 511
- EN301 908
- AS/ACIF S042.1, 3 & 4
Network & Communication
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11a/b/g/n
- Cellular Data Connectivity Technology: HSPA+
- Wireless Security:
- WPA2 (Personal or Enterprise)
- 802.1x
- EAP-TLS
- TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
- PEAP (TLS, MSCHAPv2, EAP-GTC)
- LEAP
- EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)
Display & Graphics
- Screen Mode: QVGA
- Screen Size: 3.5"
- Display Color: Color
- Screen Resolution: 640 x 480
Memory
- Flash Memory: 2 GB
- Standard Memory: 512 MB
- Memory Card Slot: Yes
- Memory Card Supported: microSD Card
Battery Information
- Battery Capacity: 3600 mAh
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Processor & Chipset
- Processor Speed: 1 GHz
- Processor Type: OMAP 4
Touchscreen Information
- Touchscreen: Yes
Warranty
- Limited Warranty: 1 Year
Software
- Operating System: Microsoft Windows Embedded Handheld 6.5 Professional
Keyboard/Keypad
- Keyboard Layout: QWERTY
