Additional Information
| Display Resolution | 640 x 480 |
|---|---|
| IP Rating | IP54 |
| Interface Options | Bluetooth, Wi-Fi |
| Manufacturer | Motorola |
| Model Name | MC75A0-HC |
| Operating Temperature | 14 F - 122 F (-10 C - 50 C) |
| Processor | Marvell PXA320 (806 MHz) |
| RAM Memory | 256 MB |
| Scanner Capability | 2D |
| Scanner Type | Imager |
| Style | Phone-size |

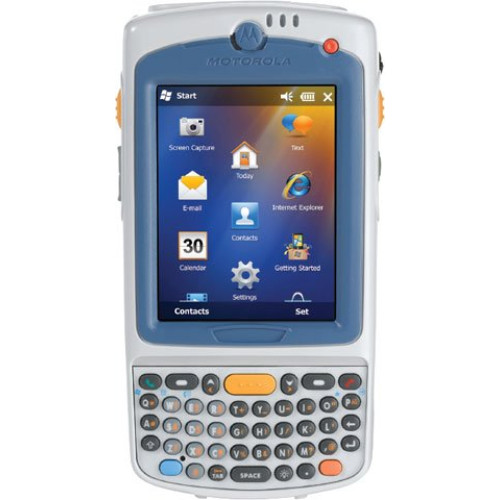

Motorola MC75A0-HC Specs
Technical Information
- Connectivity Technology: Wireless
- Image Sensor: Imager
- Electrostatic Discharge (ESD):
- +/-8 kV DC Direct Discharge
- +/-15 kV DC Air Discharge
- Drop Specification:
- 60" To Concrete
- 48" To Concrete @ 14°F (-10°C) to 122°F (50°C)
General Information
- Product Type: Handheld Terminal
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: MC75
- Product Name: MC75 Handheld Terminal
Physical Characteristics
- Height: 6"
- Width: 3.3"
- Depth: 1.7"
- Weight (Approximate): 14.89 oz
Network & Communication
- Bluetooth: Yes
- Wireless LAN: Yes
- Antenna Form Factor: External
- Infrared: Yes
- Wireless LAN Standard: IEEE 802.11a/b/g
- Wireless Security:
- WPA2
- WEP (40 or 128 bit)
- TKIP
- TLS
- TTLS (MS-CHAP)
- TTLS (MS-CHAP v2)
- TTLS (CHAP)
- TTLS-MD5
- TTLS-PAP
- PEAP-TLS
- PEAP (MS-CHAP v2)
- AES
- LEAP
Memory
- Flash Memory: 1 GB
- Standard Memory: 256 MB
- Memory Card Slot: Yes
- Memory Card Supported:
- Secure Digital High Capacity (SDHC)
- microSD Card
Display & Graphics
- Display Screen Type: LCD
- Screen Mode: VGA
- Screen Size: 3.5"
- Display Color: Color
- Screen Resolution: 640 x 480
Battery Information
- Battery Capacity: 3600 mAh
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Processor & Chipset
- Processor Manufacturer: Intel
- Processor Speed: 624 MHz
- Processor Type: XScale
Touchscreen Information
- Touchscreen: Yes
Software
- Operating System: Windows Mobile 6.5
Keyboard/Keypad
- Keyboard Layout: QWERTY
