Additional Information
| Display Resolution | 640 x 480 |
|---|---|
| IP Rating | IP54 |
| Interface Options | Bluetooth, Wi-Fi |
| Manufacturer | Motorola |
| Model Name | MC75A |
| Operating System | Windows Mobile 6.5 |
| Operating Temperature | 14 F - 122 F (-10 C - 50 C) |
| Processor | Marvell PXA320 (806 MHz) |
| RAM Memory | 256 MB |
| Scanner Capability | 1D |
| Scanner Type | Laser |
| Style | Phone-size |

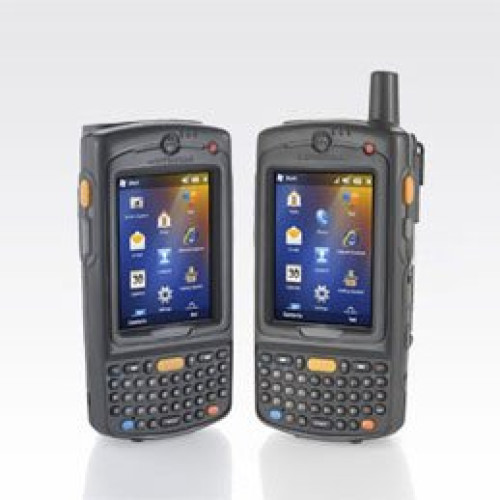

Motorola MC75A Specs
Technical Information
- Connectivity Technology: Wireless
- Light Source: Laser
- Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- Drop Specification:
- 48" To Concrete
- 60" To Concrete
General Information
- Product Type: Handheld Terminal
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: MC75A
- Product Name: MC75A Mobile Computer
Physical Characteristics
- Width: 3.3"
- Depth: 1.7"
- Length: 7"
- Weight (Approximate): 14.90 oz
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Package Contents:
- MC75A Mobile Computer
- Battery
- MC75A Mobile Computer
- Battery
- Certifications & Standards:
- Environmental sealing: IP54
- Electrical Safety:
- UL
- cUL 60950-1
- IEC
- EN60950-1
- WLAN and Bluetooth:
- FCC Part 15.247 15.407
- RSS-210
- EN 300 328
- EN 301 893
- ARIB STD-T33
- ARIB STD-T66
- ARIB STD-T71
- AS/NZS 4268
- Quad Band GSM/ Global:
- 3GPP TS 51.010
- 3GPP TS 34.121
- EDGE
- HSDPA
- FCC Part 22
- FCC Part 24
- RSS-132
- RSS-133
- EN301 511
- EN301 908
- AS/ACIF S042.1&3
- RF Exposure:
- FCC Part 2
- FCC OET Bulletin 65 Supplement C
- RSS-102
- EN 50360
- Radiocommunications Standard 2003
- EMI/RFI
- FCC Part 15 Class B
- ICES 003 Class B
- EN55022 Class B
- EN 301 489-1
- EN 301 489-3
- EN 301 489-7
- EN 301 489-17
- EN 301 489-24
- EN 60601-1-2
- AS/NZS CISPRA-22
- Laser Safety:
- IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
Network & Communication
- Bluetooth: Yes
- Wireless LAN: Yes
- Antenna Form Factor: Internal
- Cellular Network Supported: GSM
- Wireless LAN Standard: IEEE 802.11a/b/g
- Cellular Data Connectivity Technology: HSDPA
- Wireless Security:
- WPA2
- WEP (40 or 128 bit)
- TKIP
- TLS
- TTLS (MS-CHAP)
- TTLS (MS-CHAP v2)
- TTLS (CHAP)
- TTLS-MD5
- TTLS-PAP
- PEAP-TLS
- PEAP (MS-CHAPv2)
- AES
- LEAP
- CCX v4 Certified
- FIPS 140-2 certified
Display & Graphics
- Display Screen Type: LCD
- Screen Mode: VGA
- Screen Size: 3.5"
- Display Color: Color
- Screen Resolution: 640 x 480
Memory
- Flash Memory: 1 GB
- Standard Memory: 256 MB
- Memory Card Slot: Yes
- Memory Card Supported: microSD Card
Battery Information
- Battery Capacity: 3600 mAh
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Processor & Chipset
- Processor Manufacturer: Intel
- Processor Speed: 806 MHz
- Processor Type: XScale
Touchscreen Information
- Touchscreen: Yes
Software
- Operating System: Windows Mobile 6.5 Professional Edition
Warranty
- Limited Warranty: 1 Year
Keyboard/Keypad
- Keyboard Type: Numeric
