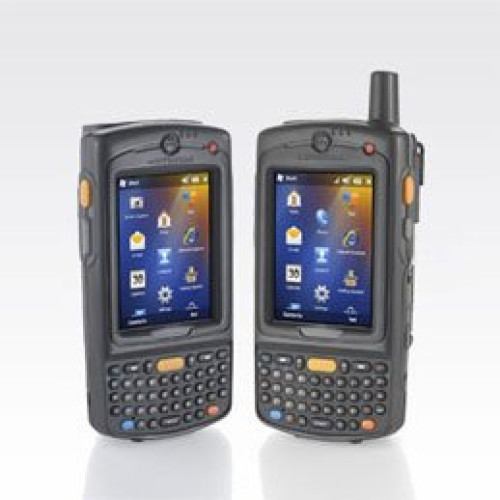

Motorola MC75A Mobile Computer

Motorola MC75A Mobile Computer
Part #: MC75A8-P4FSWQRA9WR | SKU: MOT85746

The 3.5G Motorola MC75A, one of the world's premium EDAs, offers more features and functionality, in a field-proven rugged form factor, than any other device in its class. The turbocharged MC75A addresses business critical mobility needs by maximizing processing power, rugged design, application flexibility, data capture capabilities, connectivity options, security and manageability - all in one device. Two options (3.5G WWAN/WLAN and WLAN only) enable enterprises to standardize on a single EDA to support workers inside and outside the four walls. Add a field-proven ergonomic design that is easy-to-carry and easy to use, and you have maximum value in a minimum footprint, all at the right price.

Motorola MC75A Mobile Computer

Part Details: MC75A, (Wan Evdo (Verizon), Wi-Fi, Bluetooth, GPS, 2D Scanner, Camera, Windows Mobile 6.5, 256MB/1GB, QWERTY Keypad, and 1.5x Battery. Cables and Charging Cradle Not Included.)
Need a different version of the Motorola MC75A Mobile Computer? View all 37 configurations

Additional Information

Display Resolution 640 x 480
IP Rating IP54
Interface Options Bluetooth, Wi-Fi.
Manufacturer AIDC Motorola
Model Name MC75A
Operating System Windows Mobile 6.5
Operating Temperature 14 F - 122 F (-10 C - 50 C)
Processor Marvell PXA320 (806 MHz)
RAM Memory 256 MB
Scanner Capability 2D
Scanner Type Imager
Style Phone-size
Motorola MC75A Specs Motorola MC75A Specs (pdf)

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
  • Drop Specification: 48" To Concrete @ 14°F (-10°C) to 122°F (50°C)

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC75A
  • Product Name: MC75A Handheld Terminal

Physical Characteristics

  • Height: 7"
  • Width: 3.3"
  • Depth: 1.7"
  • Weight (Approximate): 14.90 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • EMI/RFI:
    • FCC Part 15, Class B
    • ICES 003 Class B
    • EN55022 Class B
    • EN301 489-1
    • EN301 489-3
    • EN301 489-7
    • EN301 489-17
    • EN301 489-24
    • EN60601-1-2
    • AS/NZS CISPRA 2.2
    • Electrical safety:
    • EN 60950-1
    • IEC 60950-1
    • Certified to UL /cUL 60950-1
    • Laser safety:
    • EN 60825-1
    • IEC 60825-1
    • IEC Class 2/FDA Class II
    • RF exposure:
    • FCC Part 2
    • FCC OET Bulletin 65
    • Supplement C
    • RSS-102
    • EN 50380
    • Radio Communications Standard 2003
    • Environmental sealing:
    • IP54

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: External
  • Cellular Network Supported: CDMA
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • GPS: Yes
  • Cellular Data Connectivity Technology: EVDO
  • Wireless Security:
    • WPA2
    • WEP (40 or 128 bit)
    • TKIP
    • TLS
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS (CHAP)
    • TTLS-MD5
    • TTLS-PAP
    • PEAP-TLS
    • PEAP (MS-CHAP v2)
    • AES
    • LEAP
    • CCX v4 Certified
    • FIPS 140-2 certified

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB

Battery Information

  • Battery Capacity: 3600 mAh
  • Battery Chemistry: Lithium Ion (Li-Ion)

Software

  • Operating System: Windows Mobile 6.5

Warranty

  • Limited Warranty: 1 Year

Keyboard/Keypad

  • Keyboard Layout: QWERTY
Extended Details
