85752 Motorola

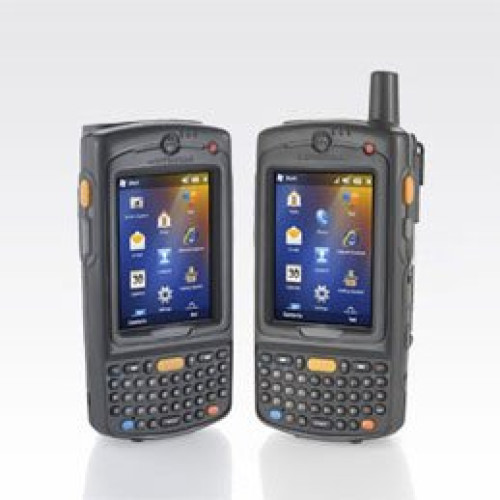

Motorola MC75A Hand Held Computer Part # MC75A8-P4FSWRRA9WR

The 3.5G Motorola MC75A, one of the world's premium EDAs, offers more features and functionality, in a field-proven rugged form factor, than any other device in its class. The turbocharged MC75A addresses business critical mobility needs by maximizing processing power, rugged design, application flexibility, data capture capabilities, connectivity options, security and manageability - all in one device. Two options (3.5G WWAN/WLAN and WLAN only) enable enterprises to standardize on a single EDA to support workers inside and outside the four walls. Add a field-proven ergonomic design that is easy-to-carry and easy to use, and you have maximum value in a minimum footprint, all at the right price.

MC75A8-P4FSWRRA9WR - Motorola MC75A Handheld Computer

Part Details: MC75A, Handheld Terminal - Marvell Xscale 806 MHz - 256 Mb Ram - 1 Gb Flash - 3.5" QVGA Lcd - Numeric Keyboard - Infrared, Bluetooth
InStock

Additional Information

Data Collection Type Wireless
Display Resolution 640 x 480
Drop Rating 5 ft.1.5 m
IP Rating IP54
Manufacturer Motorola
Network Connectivity 802.11a, 802.11a/b/g, 802.11g, Bluetooth, CDMA (Verizon)
Operating System Windows Mobile 6.5
Operating Temperature 14 F - 122 F
Processor 806 MHz Marvell PXA320
Product Condition New
RAM Memory 256 MB
Scanner Capability 2D
Scanner Type Imager
Style Phone-size

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
  • Drop Specification:
    • 60" To Concrete
    • 48" To Concrete @ 14°F (-10°C) to 122°F (50°C)
  • Barcode Symbology Supported: 2D

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC75A
  • Product Name: MC75A Handheld Terminal

Physical Characteristics

  • Width: 3.3"
  • Depth: 1.7"
  • Length: 7"
  • Weight (Approximate): 14.92 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC75A Handheld Terminal
    • Lithium Ion Battery
    • MC75A Handheld Terminal
    • Lithium Ion Battery
  • Certifications & Standards:
    • Wi-Fi Certified
    • FIPS 140-2 Certified
    • CCXv4 Certified
    • MIL-STD 810G
    • Electrical Safety:
    • Certified to UL / cUL 60950-1, IEC / EN60950-1
    • WLAN and Bluetooth:
    • USA: FCC Part 15.247, 15.407
    • Canada: RSS-210
    • EU: EN 300 328, EN 301 893
    • Japan: ARIB STD-T33, ARIB STD-T66, ARIB STD-T71
    • Australia: AS/NZS 4268
    • RF Exposure:
    • USA: FCC Part 2, FCC OET Bulletin 65 Supplement C
    • Canada: RSS-102
    • EU: EN 50360
    • Australia: Radiocommunications Standard 2003
    • EMI/RFI:
    • North America: FCC Part 15, Class B
    • Canada: ICES 003 Class B
    • EU: EN55022 Class B, EN 301 489-1, EN 301 489-3 EN 301 489-7, EN 301 489-17, EN 301 489-24, EN 60601-1-2
    • Australia: AS/NZS CISPRA-22

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: External
  • Infrared: Yes
  • Cellular Network Supported: CDMA
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Cellular Data Connectivity Technology: EVDO
  • Wireless Security:
    • WPA2
    • WEP (40 or 128 bit)
    • TKIP
    • TLS
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS (CHAP)
    • TTLS-MD5
    • TTLS-PAP
    • PEAP-TLS
    • PEAP (MS-CHAP v2)
    • AES
    • LEAP

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • Secure Digital High Capacity (SDHC)
    • Secure Digital (SD) Card

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 3600 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Software

  • Operating System: Windows Mobile 6.5

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

Keyboard/Keypad

  • Keyboard Type: Numeric
Extended Details
