Additional Information
| Manufacturer AIDC | Motorola |
|---|---|
| Model Name | MC9090-Z |
| Style | Handheld |

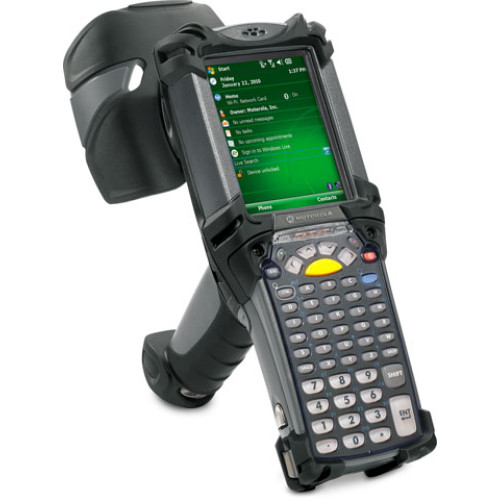

Motorola MC9090-Z Specs
Technical Information
- Connectivity Technology: Wireless
- Electrostatic Discharge (ESD):
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
- +/-15 kV DC Air Discharge
- Drop Specification: 72" To Concrete
- Barcode Symbology Supported: 1D
General Information
- Product Type: Handheld Terminal
- Product Series: MC9000
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: MC9090-G
- Product Name: MC9090-G Handheld Terminal
Physical Characteristics
- Height: 7.7"
- Width: 4.7"
- Length: 10.8"
- Weight (Approximate): 2.20 lb
Other
- Package Contents:
- MC9090-G Handheld Terminal
- Li-ion Battery
- MC9090-G Handheld Terminal
- Li-ion Battery
- Certifications & Standards:
- EMC:
- EN 301 489-1
- EN 301 489-17
- EN 301 489-7
- EN 55022
- EN 55024
- EN 61000-3-2
- EN 61000-3-3
- FCC Part 15 Class B
- ICES 003 Class B
- IEC 60601-1-2
- Electrical Safety:
- C22.2 No. 60950-1
- EN 60950-1
- IEC 60950-1
- UL 60950-1
- Laser Safety:
- EN 60825-1
- IEC 60825-1
- 21CFR1040.10
- RF Exposure:
- 787
- 788
- 789
- 2835
- Radio:
- EN 300 328
- EN 301 511
- EN 301 893
- IP64
RFID
- Maximum Read Distance: 10 ft
- Maximum Write Distance: 24"
- Maximum Coverage Angle: 70°
- Maximum Operating Frequency: 928 MHz
- Minimum Read Distance: 2.40"
- Minimum Write Distance: 12"
- Minimum Operating Frequency: 902 MHz
Memory
- Flash Memory: 128 MB
- Standard Memory: 64 MB
- Memory Card Slot: Yes
- Memory Card Supported:
- Secure Digital (SD) Card
- MultiMediaCard (MMC)
Network & Communication
- Bluetooth: Yes
- Wireless LAN: Yes
- Antenna Form Factor: Internal
- Wireless LAN Standard: IEEE 802.11a/b/g
Processor & Chipset
- Processor Manufacturer: Intel
- Processor Speed: 624 MHz
- Processor Type: XScale
Battery Information
- Battery Capacity: 2200 mAh
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Display & Graphics
- Screen Mode: QVGA
- Display Color: Color
Warranty
- Limited Warranty: 1 Year
Keyboard/Keypad
- Number of Keys: 53
Software
- Operating System: Windows Mobile 6.1
Touchscreen Information
- Touchscreen: Yes
