134176 Motorola

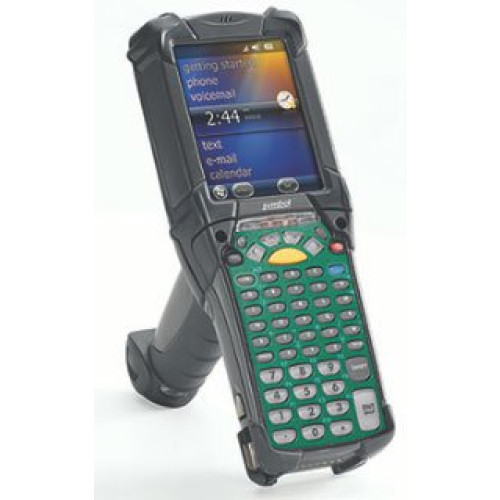

MC9190-G30SWEQA660 - Motorola MC9190-G Handheld Computer

MC9190-G, MC9190 HAZ LOC, UL Class I, II, III / DIV 2, Group A, B, C, D, F, G, WLAN 802.11a/b/g, Standard Range 1D/2D Imager, 256MB/1GB, 53 key, Windows Mobile 6.X, Bluetooth, US Government Sales Only
InStock
Free Shipping

Description

When you need to scan bar codes and collect data in the harshest of environments, the Motorola MC9190-G is ready for the job. Whether your workers are managing inventory in industrial warehouses, searching for materials in subzero temperatures out in the yard or repairing equipment on a military base in a hot sandy desert, the MC9190-G helps get the job done right and fast. You can count on dependable scanning of virtually any bar code, even if the label has been damaged. Scanning is easier than ever, with point and shoot simplicity for bar codes that are inches or meters away, on the top shelves in the warehouse or deep inside a truck. The new high resolution backlit display is easy to view in any lighting - from the dim corners of a warehouse to bright sunlight. With more processing power and memory, you can give your workers the same fast and dependable application performance they expect on their desktop. And since the MC9190-G is compatible with all existing MC9000 Series accessories, you can cost-effectively upgrade to the latest in mobile computing technologies.
  • Marvel PXA320 806 MHz processor provides blazing desktop like performance even on the most demanding multimedia applications
  • Extremely rugged IP64 design withstands multiple 6 ft. drops (1.8 m) to concrete, 2,000 1 m tumbles (4,000 hits) to ensure less down time due to accidental drops
  • Six scanning options provide linear (1D) and 2D barcode reading at any distance to deliver the best performance in any application
  • 802.11a/b/g CCX v4-compatible tri-mode radio connects to both 2.4GHz and 5GHz WLANs for cost-effective voice and data connectivity on any network
  • Best-in-class 3.7 inch high-resolution backlit color VGA touchscreen display for great readability in any lighting condition
  • Backwards compatible with MC9000 accessories to easily upgrade to the latest mobile technology while preserving your existing investment

Additional Information

Manufacturer Motorola

Recommended Accessories

Recommended Warranties

  • Motorola MC9190-G Service Contract (SCS-MC9190S-10)

    Service Contract - 1 year, Zebra OneCare Service Center Select. Includes Comprehensive Coverage. Does not include coverage for cradles. (Requires customer-supplied spares pool in NA, not available for LA.)
    Call For Price
    Ships In 3-5 Days
    Free Shipping
  • Motorola MC9190-G Service Contract (Z1BE-MC919G-1000)

    Service Contract - 1 year, 1 Year Zebra OneCare Service Center Essential. Does not include Comprehensive Coverage. Does not include coverage for cradles.
    $202.40 $156.07
    Ships In 3-5 Days
    Free Shipping
    - +
  • Motorola MC9190-G Service Contract (Z1BE-MC919G-3000)

    Service Contract - 3 year, 3 Year Zebra OneCare Service Center Essential. Does not include Comprehensive Coverage. Does not include coverage for cradles.
    $515.90 $397.82
    Ships In 3-5 Days
    Free Shipping
    - +
  • Motorola MC9190-G Service Contract (Z1RE-MC919G-1C00)

    Service Contract - 1 year, 1 Year Zebra OneCare Essential Renewal. Includes Comprehensive Coverage. Does not include coverage for cradles
    $147.40 $113.66
    Ships In 3-5 Days
    Free Shipping
    - +
  • Motorola MC9190-G Service Contract (Z1RE-MC919G-2C00)

    Service Contract - 2 year, 2 Year Zebra OneCare Essential Renewal. Includes Comprehensive Coverage. Does not include coverage for cradles. Can only be ordered ONCE after initial Zebra OneCare contract expires
    $268.40 $206.96
    Ships In 3-5 Days
    Free Shipping
    - +

Technical Information

  • Scanner Range: High Density
  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Indirect Discharge
    • +/-8 kV DC Direct Discharge
  • Drop Specification: 72" To Concrete
  • Barcode Symbology Supported: 2D

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC9000
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9190-G
  • Product Name: MC9190-G Handheld Terminal

Physical Characteristics

  • Height: 9.1"
  • Width: 3.6"
  • Depth: 7.6"
  • Weight (Approximate): 1.69 lb

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC9190-G Handheld Terminal
    • Lithium-Ion Battery
    • MC9190-G Handheld Terminal
    • Lithium-Ion Battery
  • Certifications & Standards:
    • MIL-STD 810G
    • IP64
    • Wi-Fi
    • CCX v4
    • FIPS 140-2
    • Electrical Safety:
    • Certified to UL60950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1/IEC60950-1
    • WLAN and Bluetooth USA:
    • FCC Part 15.247, 15.407
    • RF Exposure USA:
    • FCC Part 2
    • FCC OET Bulletin 65
    • Supplement C
    • EMI/RFI USA:
    • FCC Part 15
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
    • LED Safety:
    • IEC/EN60825-1
    • IEC/EN62471

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2 Enterprise
    • 802.1x
    • EAP-TLS
    • TTLS(CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
    • PEAP (TLS, MSCHAPv2, EAP-GTC)
    • LEAP
    • EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)
    • WPA2/AES
    • IPv6

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • Secure Digital (SD) Card
    • MultiMediaCard (MMC)

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.7"
  • Display Color: Color

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Software

  • Operating System: Windows Mobile 6.0

Keyboard/Keypad

  • Number of Keys: 53

Warranty

  • Limited Warranty: 1 Year

Touchscreen Information

  • Touchscreen: Yes
