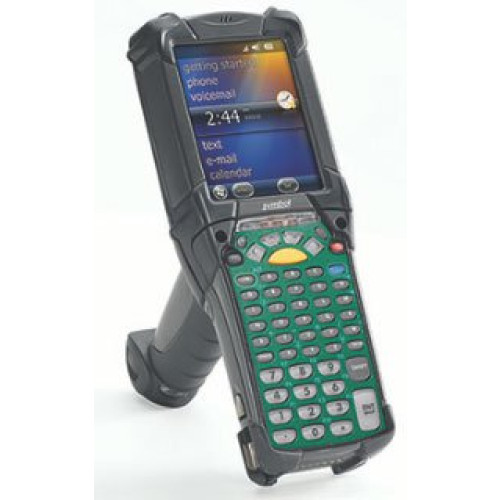

Motorola MC9190-G Mobile Computer
Part #: MC9190-GJ0SWJYA6WR | SKU: MOT106659

When you need to scan barcodes and collect data in the harshest of environments, the Motorola MC9190-G is ready for the job. Whether your workers are managing inventory in industrial warehouses, searching for materials in subzero temperatures out in the yard or repairing equipment on a military base in a hot sandy desert, the MC9190-G helps get the job done right and fast. You can count on dependable scanning of virtually any barcode, even if the label has been damaged. Scanning is easier than ever, with point and shoot simplicity for barcodes that are inches or meters away, on the top shelves in the warehouse or deep inside a truck. The new high resolution backlit display is easy to view in any lighting - from the dim corners of a warehouse to bright sunlight. With more processing power and memory, you can give your workers the same fast and dependable application performance they expect on their desktop. And since the MC9190-G is compatible with all existing MC9000 Series accessories, you can cost-effectively upgrade to the latest in mobile computing technologies.

Motorola MC9190-G Mobile Computer

Part Details: MC9190-G, Wi-Fi (802.11a/b/g), Long Range 1D Laser Scanner (LORAX) , Windows CE 6.0, Gun Grip, 256MB RAM/1GB ROM, 53-Key keypad, VGA Color Screen, Bluetooth. Interface cables and charging cradle sold separately. Single slot charging cradle kit (Part# CRD9000-110SES). Quad slot charging cradle kit (Part # CRD9101-411CES) requires AC line cord (Part# 23844-00-00R).

Additional Information

IP Rating IP64
Interface Options Bluetooth, Wi-Fi
Keypad 53 Keys
Manufacturer Motorola
Model Name MC9190-G
Operating System Windows CE 6.0
Operating Temperature -4 F - 122 F (-20 C - 50 C)
Processor Marvell PXA320 (806 MHz)
RAM Memory 256 MB
Scanner Capability 1D
Scanner Type Laser
Style Gun

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC9000
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9190-G
  • Product Name: MC9190-G Handheld Terminal

Technical Information

  • Connectivity Technology: Wireless
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete

Physical Characteristics

  • Height: 9.1"
  • Width: 3.6"
  • Depth: 7.6"
  • Weight (Approximate): 1.56 lb

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC9190-G Handheld Terminal
    • Li-Ion Battery
    • MC9190-G Handheld Terminal
    • Li-Ion Battery
  • Certifications & Standards:
    • Electrical Safety:
    • Certified to UL60950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1/IEC60950-1
    • WLAN and Bluetooth:
    • FCC Part 15.247, 15.407
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin 65
    • Supplement C
    • EMI/RFI:
    • FCC Part 15
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
    • LED Safety:
    • IEC/EN60825-1 and IEC/EN62471

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2 Enterprise
    • 802.1x
    • EAP-TLS
    • TTLS(CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
    • PEAP (TLS, MSCHAPv2, EAP-GTC)
    • LEAP
    • EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)
    • WPA2/AES
    • CCX v4
    • FIPS 140-2
    • IPv6

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • MultiMediaCard (MMC)
    • Secure Digital (SD) Card

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Display & Graphics

  • Screen Mode: VGA
  • Screen Size: 3.7"
  • Display Color: Color

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Software

  • Operating System: Windows CE 6.0

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 12 Month

Keyboard/Keypad

  • Number of Keys: 53
Extended Details

Recommended Accessories for Model: Motorola MC9190-G Mobile Computer

  • Zebra 23844-00-00R Power Device
    Part #: 23844-00-00R | SKU: ZEB26223

    Power Device - Zebra - AC Line Cord - Grounded - 7.5 Feet Or 2.3 Meters - 3-Prong - Associated Countries - Canada - Mexico - United States.
    MSRP: $17.09 Price: $14.81
    In Stock
  • Zebra PWR-BGA12V50W0WW Power Device
    Part #: PWR-BGA12V50W0WW | SKU: ZEB444912

    Power Device - Zebra - Level Vi Efficiency AC/DC Power Supply Brick Used To Power Single-Slot Cradle Or Four-Slot Battery Charger - DC Cable (CBL-DC-388A1-01) And Country-Specific AC Line Cord Are All Sold Separately.
    MSRP: $78.41 Price: $59.10
    In Stock
  • Zebra 50-16000-221R Power Device
    Part #: 50-16000-221R | SKU: ZEB26272

    Power Device - Zebra - AC Line Cord - Grounded - 6 Feet Or 1.8 Meters - 3-Prong - USA Nema 5-15P Plug - Associated Countries - Canada - Mexico - United States.
    Price: $25.21
    In Stock
  • Zebra MC17 Power Device
    Part #: 50-16000-220R | SKU: ZEB29313

    Smb AC Power Cord For Europe Rohs
    Price: $19.27
    In Stock
  • Symbol Power Accessory
    Part #: 50-16000-255R | SKU: SYM37711

    MC67 Accessories, Universal Cable, Cord, Power, Euro Plug CEE7/16
    Price: $14.44
    In Stock

Recommended Warranties for Model: Motorola MC9190-G Mobile Computer

  • Zebra Zebra OneCare Essential Service Contract
    Part #: Z1BE-MC919G-1000 | SKU: ZEB463623

    Service Contracts - Motorola Zebra OneCare Essential - MC919G - Purchased 30 Days Or More Of Hardware - 1 Year - Non-Comprehensive - Standard Logistics - Dashboard
    MSRP: $251.52 Price: $209.06
    In Stock
  • Zebra Zebra OneCare Essential Service Contract
    Part #: Z1RE-MC919G-2C00 | SKU: ZEB464014

    Service Contracts - Motorola Zebra OneCare Essential - MC919G - Renewal Of Z1A Contract - 2 Year - Comprehensive - Standard Logistics - Dashboard
    MSRP: $333.77 Price: $277.43
    In Stock
  • Zebra Zebra OneCare Essential Service Contract
    Part #: Z1AE-MC919G-3C00 | SKU: ZEB464015

    Service Contracts - Motorola Zebra OneCare Essential - MC919G - Purchased Within 30 Days Of Hardware - 3 Year - Comprehensive - Standard Logistics - Dashboard
    MSRP: $479.90 Price: $398.90
    In Stock
  • Zebra Zebra OneCare Essential Service Contract
    Part #: Z1RE-MC919G-1C00 | SKU: ZEB464013

    Service Contracts - Motorola Zebra OneCare Essential - 1 Year - Includes Comprehensive Coverage. Does not include coverage for cradles
    Price: $183.57
    In Stock
  • Motorola MC9190-G Service Contract
    Part #: SSE-MC9190G-50 | SKU: MOT369578

    Service Contract - 5 year, Zebra OneCare Essential. Includes Comprehensive Coverage. Does not include coverage for cradles.
