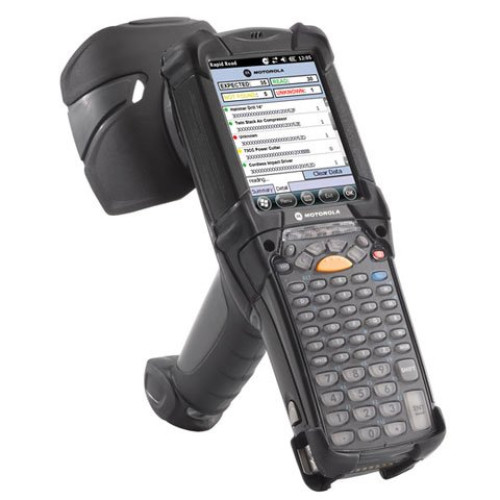

Motorola MC9190-Z RFID Reader Motorola MC9190-Z RFID Reader

Motorola MC9190-Z RFID Reader
Part #: MC919Z-GJ0SWEQZ2EU | SKU: MOT207721

The MC9190-Z is a high-performance, highly rugged RFID handheld reader targeted for use in very demanding applications and environments. Designed for medium- to long-range RFID read applications, the MC9190-Z delivers best-in-class RFID read range and accuracy in an ergonomic, integrated RFID and bar code device. Its rugged form factor excels in virtually any environment, indoors or outdoors.

Motorola MC9190-Z RFID Reader

Part Details: MC9190-Z, RFID handheld, 802.11 a/b/g, Extended Range (Lorax), Color, 256MB/1GB, 53 Key, Windows Mobile 6.5, Bluetooth, ETSI 302-208, RoHS. Interface cables and charging cradle sold separately. Single slot charging cradle kit (Part# CRD9000-110SES). Quad slot charging cradle kit (Part # CRD9101-411CES) requires AC line cord (Part# 23844-00-00R).
Need a different version of the Motorola MC9190-Z RFID Reader? View all 7 configurations

Additional Information

Manufacturer AIDC Motorola
Model Name MC9190-Z
Style Handheld
Motorola MC9190-Z Specs Motorola MC9190-Z Specs (pdf)

Technical Information

  • Scanner Range: Extended Range
  • Connectivity Technology: Wireless
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 70.87" To Concrete @ -4°F (-20°C) to 122°F (50°C)
  • Barcode Symbology Supported: 1D

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9190-Z
  • Product Name: MC9190-Z Handheld RFID Reader

Physical Characteristics

  • Height: 7.7"
  • Width: 4.7"
  • Length: 10.8"
  • Weight (Approximate): 2.15 lb

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2 Enterprise
    • 802.1x
    • EAP-TLS
    • TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
    • PEAP (TLS, MSCHAPv2, EAP-GTC)
    • LEAP
    • EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)
    • WPA2/AES
    • FIPS 140-2
    • IPv6

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • MultiMediaCard (MMC)
    • Secure Digital (SD) Card

Display & Graphics

  • Screen Mode: VGA
  • Screen Size: 3.7"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 806 MHz
  • Processor Type: PXA320

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 6.5
Extended Details
