Additional Information
| Display Resolution | 3.7 VGA, 640 x 480 |
|---|---|
| IP Rating | IP64 |
| Interface Options | Bluetooth, Wi-Fi. |
| Keypad | 53 Keys |
| Manufacturer AIDC | Motorola |
| Model Name | MC9200 |
| Operating System | Windows CE 7.0 |
| Operating Temperature | -4 F - 122 F (-20 C - 50 C) |
| Processor | Texas Instruments OMAP4 (1 GHz) |
| RAM Memory | 512 MB |
| Scanner Capability | 1D |
| Scanner Type | Laser |
| Style | Gun |

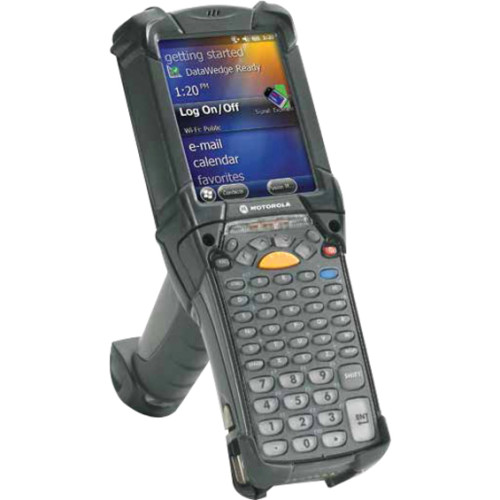

Motorola MC9200 Specs
Technical Information
- Scanner Range: Standard Range
- Connectivity Technology: Wireless
- Light Source: Laser
- Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
- Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)
- Barcode Symbology Supported: 1D
General Information
- Product Type: Handheld Terminal
- Product Series: MC9000
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: MC9200
- Product Name: MC9200 Mobile Computer
Physical Characteristics
- Height: 7.6"
- Width: 3.6"
- Length: 9.1"
- Weight (Approximate): 1.69 lb
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Package Contents:
- MC9200 Mobile Computer
- Battery
- MC9200 Mobile Computer
- Battery
- Certifications & Standards:
- IPv6
- FIPS 140-2
- CCXv4
- IP64
- MIL-STD 810G
- Electrical Safety:
- UL 60950-1
- CSA C22.2 No. 60950-1
- EN60950-1/IE C60950-1
- WLAN and Bluetooth:
- FCC Part 15.247, 15.407
- RSS-210
- EN 300 328
- EN 301 893
- RF Exposure:
- FCC Part 2, FCC OET Bulletin 65 Supplement C
- RSS-102
- EN62311
- EN50371
- EMI/RFI:
- FCC Part 15
- RSS-210
- ICES 003 Class B
- EN 301 489-1
- EN 301 489-17
- EN55022 Class B
- EN55024
- Laser Safety:
- IEC Class2/FDA Class II in accordance with IE C60825-1/EN60825-1
- LED Safety:
- IEC/EN60825-1 and IEC/EN62471
Network & Communication
- Bluetooth: Yes
- Wireless LAN: Yes
- Antenna Form Factor: Internal
- Wireless LAN Standard: IEEE 802.11a/b/g/n
- Wireless Security:
- WPA2 Enterprise
- 802.1x
- EAP-TLS
- TTLS (CHAP)
- TTLS (MS-CHAP)
- TTLS (MS-CHAPv2)
- TTLS PAP
- TTLS MD5
- PEAP TLS
- PEAP (MSCHAPv2)
- PEAP EAP-GTC
- LEAP
- EAP-FAST TLS
- EAP-FAST MS-CHAPv2
- EAP-FAST EAP-GTC
- WPA2/AES
Memory
- Flash Memory: 2 GB
- Standard Memory: 512 MB
- Memory Card Slot: Yes
- Memory Card Supported: Secure Digital High Capacity (SDHC)
Processor & Chipset
- Processor Manufacturer: Texas Instruments
- Processor Speed: 1 GHz
- Processor Type: OMAP 4
Display & Graphics
- Screen Mode: VGA
- Screen Size: 3.7"
- Display Color: Color
Battery Information
- Battery Capacity: 2200 mAh
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Software
- Operating System: Microsoft Windows Embedded Compact CE 7.0
Touchscreen Information
- Touchscreen: Yes
Warranty
- Limited Warranty: 1 Year
Keyboard/Keypad
- Number of Keys: 53
