Additional Information
| Manufacturer AIDC | Motorola |
|---|---|
| Model Name | MC9500-K |
| Style | Full-size |

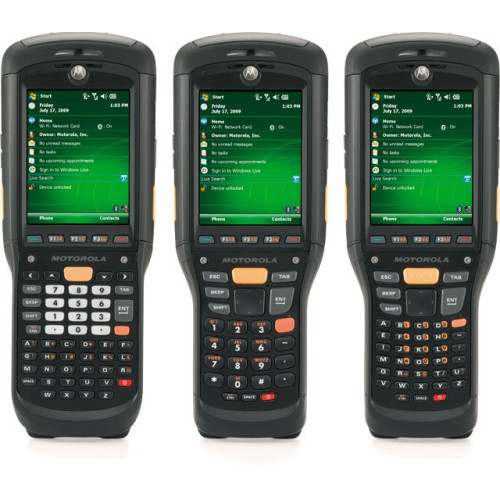

Motorola MC9500-K Specs
Technical Information
- Connectivity Technology: Wireless
- Image Sensor: Imager
- Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
- Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)
- Barcode Symbology Supported:
- 1D
- 2D
General Information
- Product Type: Handheld Terminal
- Product Series: MC9500-K
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Name: MC9500-K Premier Industrial-Class Rugged Mobile Computer
Physical Characteristics
- Height: 9.2"
- Width: 3.5"
- Depth: 2"
- Weight (Approximate): 1.37 lb
Interfaces/Ports
- USB: Yes
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Package Contents:
- MC9500-K Premier Industrial-Class Rugged Mobile Computer
- Battery
- Strap
- Stylus
- MC9500-K Premier Industrial-Class Rugged Mobile Computer
- Battery
- Strap
- Stylus
- Certifications & Standards:
- MIL-STD-810G
- IP67
- Electrical Safety:
- IEC
- UL
- CSA
- EN 60950-1
- WLAN and Bluetooth (PAN):
- FCC Part 15.247
- 15.407
- RSS-210
- EN 300 328
- EN 301 893
- ARIB STD T33
- T66
- T70
- T71
- AS/NZS 4268s
- RF Exposure:
- FCC Part 2
- FCC OET Bulletin 65 Supplement C
- RSS-102
- EN 50360
- ARIB STD T56
- Radiocommunications Standard 2003
- EMI/RFI:
- FCC Part 15
- Class B
- ICES-003 Class B
- EN55022 Class B
- EN 55024
- EN 301 489-1
- EN 301 489-7
- EN 301 489-17
- EN 301 489-19
- EN 301 489-24
- EN 60601-1-2
- EN 50121-3-2
- EN 50121-4
- AS/NZS CISPR-22
- Laser Safety:
- IEC Class2
- FDA Class II In Accordance With IEC60825-1
- EN60825-1
Network & Communication
- Bluetooth: Yes
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11a/b/g
- GPS: Yes
- Cellular Data Connectivity Technology:
- HSDPA
- 3G
- Wireless Security:
- WPA2 (Personal or Enterprise)
- 802.1x
- EAP-TLS
- TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
- PEAP (TLS, MSCHAPv2, EAP-GTC)
- LEAP
- EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)
- CCXv4 Certified
- Support for IPv6
- FIPS 140-2 Certified
Display & Graphics
- Display Screen Type: LCD
- Backlight Technology: LED
- Screen Mode: VGA
- Screen Size: 3.7"
- Display Color: Color
- Screen Resolution: 640 x 480
Memory
- Flash Memory: 1 GB
- Standard Memory: 256 MB
- Maximum Memory Card Size Supported: 32 GB
- Memory Card Slot: Yes
- Memory Card Supported: Secure Digital (SD) Card
Battery Information
- Battery Capacity: 4800 mAh
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Processor & Chipset
- Processor Manufacturer: Marvell
- Processor Speed: 806 MHz
- Processor Type: PXA320
Touchscreen Information
- Touchscreen: Yes
- Touchscreen Type: Resistive
Camera
- Camera: Yes
- Effective Camera Resolution: 3 Megapixel
Software
- Operating System: Windows Mobile 6.5
Warranty
- Limited Warranty: 1 Year
Keyboard/Keypad
- Keyboard Type: Alphanumeric
