253390 Motorola

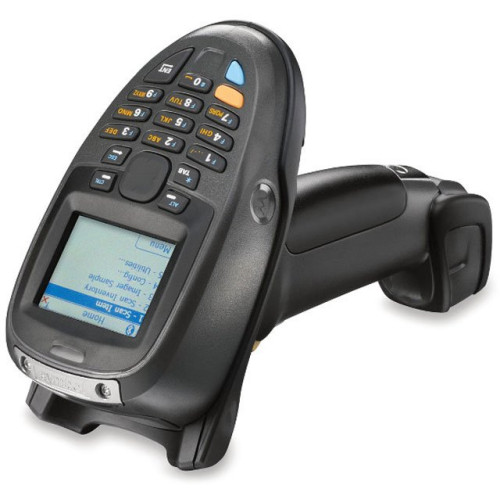

MT2070-DP4D62370WR - Motorola MT2070 Handheld Computer

MT2070, SCANNER ONLY. 2D Imager, Direct Part Mark (DPM) capable, Bluetooth, color screen, Alphanumeric Keypad, Windows CE 5.0. Does not include necessary cables or accessories. For the full kit see (Part# KT-2070-SD2078C14W).
InStock
Free Shipping

Additional Information

Manufacturer Motorola

Recommended Accessories

Universal Charger-Cradle, Single-Slot Cradle
$275.00 $208.57
Ships In 3-5 Days
Free Shipping
- +
Universal Charger-Cradle, Cradle Kit (4-Slot, Ethernet, International). Includes power supply and DC line cord. AC line cord (Part# 23844-00-00R) sold separately.
$820.00 $561.98
Ships In 3-5 Days
Free Shipping
- +
Universal Charger-Cradle, 1-Slot Battery Charger (ES, Intl)
$145.00 $109.97
Ships In 3-5 Days
Free Shipping
- +
Universal Charger-Cradle, Universal Battery Charger 4-Slot Base. Includes power supply and and DC line cord. Order 3 wire grounded AC Line Cord separately (Part# 23844-00-00R).
$215.00 $137.14
Ships Today
Free Shipping
- +
MC9500-K Mobile Computer Accessories, Cradle (4-Slot, Ethernet) For The MC9500
$565.00 $428.52
Ships Today
Free Shipping
- +

Technical Information

  • Connectivity Technology: Batch
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)
  • Barcode Symbology Supported:
    • 1D:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus supplements)
    • ISBN (Bookland)
    • Code 39 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • MSI Plessey
    • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • 2D:
    • TLC-39
    • Aztec (Standard, Inverse)
    • Maxicode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR code (Standard, Inverse, Micro)
    • PDF417:
    • PDF417 (Standard, Macro)
    • Composite Codes (CC-A,CC-B,CC-C)
    • Postal:
    • U.S. Postnet and Planet
    • U.K. Post
    • Japan Post
    • Australian Post
    • Netherlands KIX Code
    • Royal Mail 4 State Customer
    • upu fcs 4 State Postal
    • USPS 4CB

General Information

  • Product Type: Handheld Terminal
  • Product Series: MT2000
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MT2070
  • Product Name: MT2070 Handheld Terminal

Physical Characteristics

  • Height: 7.8"
  • Width: 3.1"
  • Depth: 5"
  • Weight (Approximate): 13.50 oz

Interfaces/Ports

  • USB: Yes
  • Serial: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • IP54
    • FIPS 140-2
    • Electrical Safety:
    • Certified to UL60950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1
    • EMI/RFI:
    • FCC Part 2 (SAR)
    • FCC Part 15 Subpart B - Class B
    • RSS210
    • EN 301-489-1, 489-17
    • Laser Safety:
    • IEC Class 2
    • FDA Class II in Accordance with IEC60825-1
    • EN60825-1

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 312 MHz
  • Processor Type: XScale PXA270

Display & Graphics

  • Screen Mode: QVGA
  • Display Color: Color
  • Screen Resolution: 320 x 240

Keyboard/Keypad

  • Keyboard Type: Numeric
  • Number of Keys: 21

Memory

  • Flash Memory: 64 MB
  • Standard Memory: 64 MB

Battery Information

  • Battery Capacity: 2400 mAh
  • Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 3 Year

Software

  • Operating System: Windows CE 5.0
