114288 Motorola

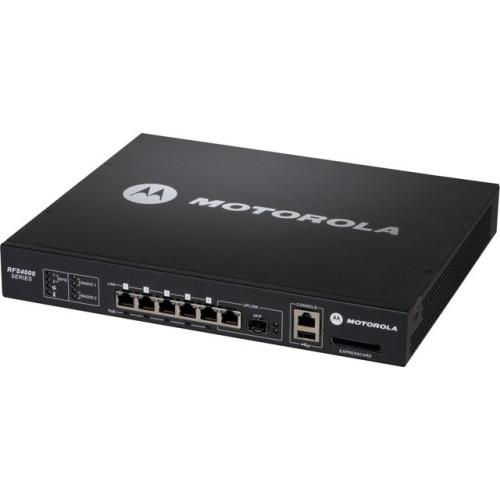

Motorola RFS4000 Wireless Controller Part # RFS-4011-11110-WR

The Motorola RFS4000 Integrated Services Controller offers multiple features that ensure reliability and survivability of branch networking services in virtually any situation. The RFS4000 Integrated Services Controller protects against access point and mesh node failure with SMART RF, a feature that keeps users on-Net with automatic optimization and healing. Motorola's patent pending clustering mechanism protects against wireless switch failure and offers Active/Active or Active/Standby controller redundancy options. In the event of a WAN outage, a redundant 3G ExpressCard guarantees Internet services by providing WAN backhaul options. With the Integrated Dual Radio Dual band form factor, the RFS4000 Integrated Services Controller is the only Services Controller in the Industry that offers concurrent access in the 2.4 and 5 GHz bands, with mesh capabilities in a multi-cell environment.

RFS-4011-11110-WR - Motorola RFS4000 Integrated Services Controller Wireless Controller

Part Details: RFS4000 Integrated Services Controller, RFS4000: with Dual .11n Radios & PS
InStock

Additional Information

Manufacturer Motorola
Product Condition New
  • Fully integrated 802.11n wireless services controller, 802.11n access point, and wired switch with 5 POE ports rolled into one
  • IPSEC VPN/firewall/WIPS security
  • RADIUS & DHCP server
  • WiNG Operating System
  • Integrated IDS/IPS provides defense against over-the-air attacks by leveraging the sensing capabilities of AP300/ AP51x1/AP7131.
  • Real Time Locationing System (RTLS)
  • Role-based wired/wireless firewall
  • 3G Wireless for WAN Backhaul
  • Enhanced End-to-End Quality of Service (QoS)

General Information

  • Product Type: Wireless LAN Controller
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: RFS 4000
  • Product Name: RFS 4000 Wireless LAN Controller

Technical Information

  • Memory Card Supported: ExpressCard
  • Features: Quality of Service (QoS)

Physical Characteristics

  • Height: 1.8"
  • Width: 12"
  • Depth: 10"
  • Form Factor: Desktop
  • Weight (Approximate): 4.74 lb

Interfaces/Ports

  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Gigabit Ethernet Port: Yes
  • Number of Network (RJ-45) Ports: 6
  • PoE (RJ-45) Port: Yes
  • USB: Yes
  • Serial Port: Yes

Management & Protocols

  • Management:
    • CLI
    • DHCP
    • Telnet
    • VLAN
    • Syslog
    • SNMP (v1, v2, v3)
    • MIB
    • HTTP/HTTPS

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: Power Supply

I/O Expansions

  • Expansion Slots: 1 x ExpressCard
Extended Details

Recommended Accessories

Recommended Warranties

  • Motorola Service Contracts Service Contract (SOB-RFS4010-30)

    Service Contracts - 3 year, Service from the Start On-site. Includes Comprehensive Coverage. Check datasheet for regional availability. Available in NA, LACR and APME only
    MSRP: $401.50 Price: $308.77
