70703 Motorola

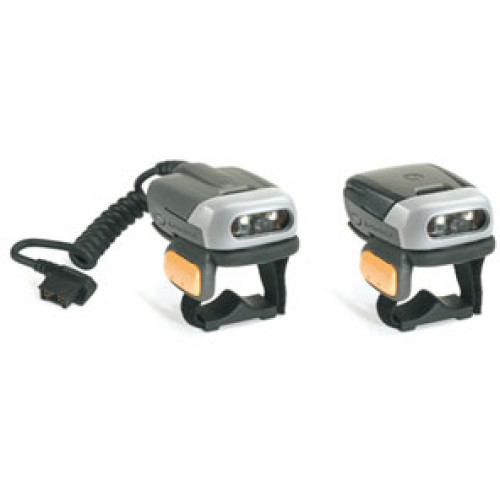

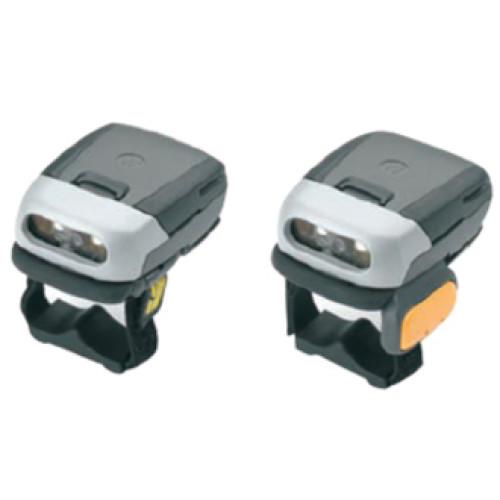

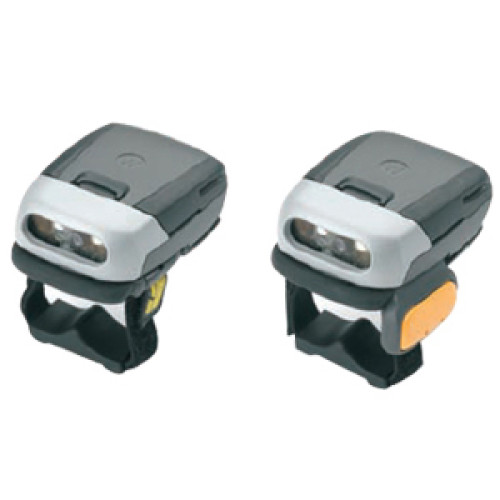

Motorola RS507 Ring Imager Bar code Scanner Part # RS507-IM20000STWR

Whether your workers are handling and sorting packages, picking or loading shipments in the warehouse or scanning bar codes to meet government regulations for tracking and tracing of product, the Motorola RS507 Ring Imager Hands-Free Imager delivers the superior blend of technology, form and function your workers need to achieve a new level of scanning efficiency in your operations. The advanced design offers more features and functionality than any other ring scanner available today. Truly superior ergonomics, including Bluetooth cordless freedom, provide unparalleled user comfort. The unmatched rugged design ensures reliable operation in the most demanding environments. Best-in-class scanning, including support for 1D and 2D bar codes, ensures first time every time fast and accurate capture of virtually any barcode. The RS507 Ring Imager pairs easily with the WT4000 Wearable Terminal.

RS507-IM20000STWR - Motorola RS507 Ring Imager Bar code Scanner

Part Details: RS507 Ring Imager, Hands-Free 2D Imager, 2-finger mounted barcode imager with manual trigger and standard capacity battery for cordless Bluetooth interface to supported mobile computer.
InStock

Additional Information

Color Dark Gray
Communication Range less than 33 ft
Communication Type Bluetooth
Connection Bluetooth
Connectivity Cordless
Form Factor Wearable
Manufacturer Motorola
Product Condition New
Ruggedness General Purpose
Scan Pattern Area
Scanner Capability 2D
Scanner Type Imager
  • Hands-free scanning
  • Bluetooth cordless freedom
  • Optional corded WT4000 adapter
  • Reads 1D and 2D barcodes
  • Exceptional motion tolerance
  • Bright central dot ensures quick, accurate scanning
  • Multiple field replaceable components
  • Compatible with Motorola"s Mobility Software Platform (MSP)
  • Motorola Interactive Sensor Technology (IST)
  • New manual triggering mechanism with easy swivel
  • Magnesium chassis with 6 ft. drop specification,
  • IP54 sealing,
  • Extended operating temperature range (-4 degrees to 131 degrees F/-20 degrees to 55 degrees C)
  • Dual rear LEDs and high power beeper

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Connectivity Technology: Wireless
  • Scanning Distance: 24"
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D:
    • Codabar
    • Code 39
    • Code 128
    • EAN 13
    • EAN 8
    • Interleaved 2 of 5
    • UPC-A and UPC-E
    • Additionally supported by 1D:
    • Code 11
    • Code 32 Pharmaceutical (PARAF)
    • Code 93
    • MSI
    • Reduced Space Symbology (RSS-14, RSS Limited, RSS Expanded)
    • Straight 2 of 5 IATA end-of-life (two-bar start/stop)
    • Straight 2 of 5 Industrial (three-bar start/stop)
    • Trioptic
    • UPC-E1
    • 2D:
    • 4-CB (4-State Customer Barcode)
    • Aztec
    • MicroPDF417
    • PDF417
    • MaxiCode
    • Additionally supported by 2D:
    • Australian Post
    • British Post (4 state code and "infomail")
    • Data Matrix
    • Japanese Post
    • KIX (Netherlands) Post
    • Planet Code
    • Postnet
    • QR Code
    • EAN/UCC Composite
    • TCIF Linked Code 39 (TLC39)
    • 1D:
    • Codabar
    • Code 39
    • Code 128
    • EAN 13
    • EAN 8
    • Interleaved 2 of 5
    • UPC-A and UPC-E
    • Additionally supported by 1D:
    • Code 11
    • Code 32 Pharmaceutical (PARAF)
    • Code 93
    • MSI
    • Reduced Space Symbology (RSS-14, RSS Limited, RSS Expanded)
    • Straight 2 of 5 IATA end-of-life (two-bar start/stop)
    • Straight 2 of 5 Industrial (three-bar start/stop)
    • Trioptic
    • UPC-E1
    • 2D:
    • 4-CB (4-State Customer Barcode)
    • Aztec
    • MicroPDF417
    • PDF417
    • MaxiCode
    • Additionally supported by 2D:
    • Australian Post
    • British Post (4 state code and "infomail")
    • Data Matrix
    • Japanese Post
    • KIX (Netherlands) Post
    • Planet Code
    • Postnet
    • QR Code
    • EAN/UCC Composite
    • TCIF Linked Code 39 (TLC39)

General Information

  • Product Type: Wearable Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: RS507
  • Product Name: RS507 Wearable Barcode Reader

Physical Characteristics

  • Height: 1.2"
  • Width: 2.1"
  • Depth: 2.9"
  • Weight (Approximate): 4.80 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Additional Information:
    • Pitch Angle: ± 60° from normal
    • Skew Tolerance: ± 60° from normal

Network & Communication

  • Bluetooth: Yes

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)
Extended Details
