100234 Motorola

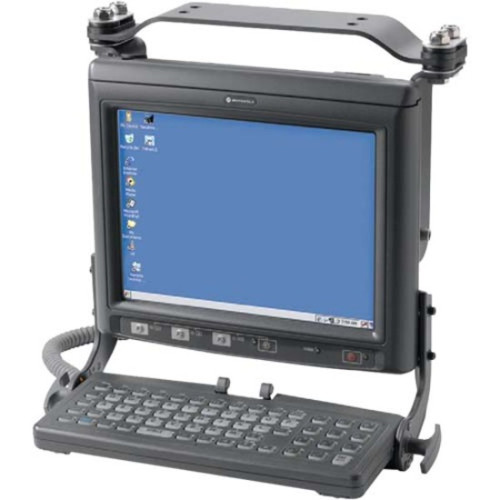

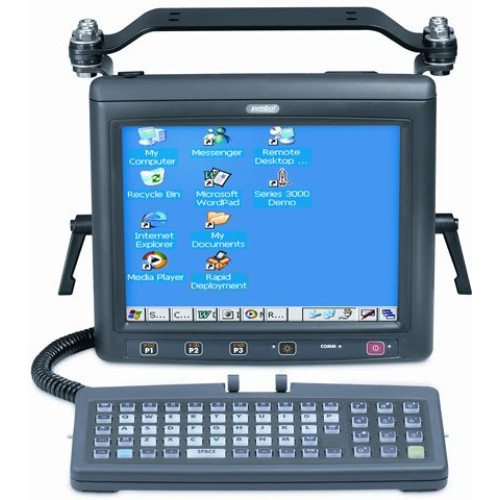

VC5090-MA0TMQGH8WR - Motorola VC5090 Fixed/Vehicle Mount Data Terminal

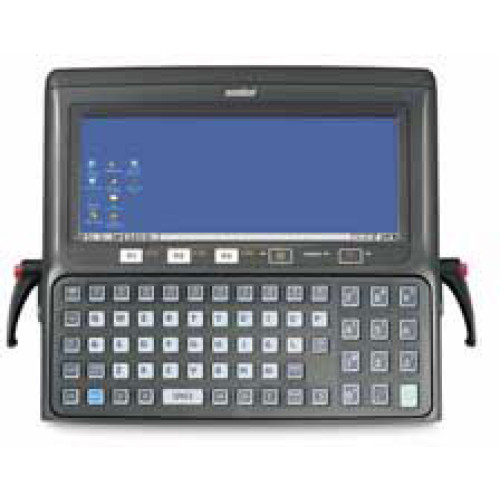

VC5090, Wireless Vehicle/Fixed-Mount Mobile Computer (Half Screen, 10.5 inch 1/2 SVGA 800 x 320 Heated Color Touch Screen, Integrated 64 key Keyboard, 10-96vdc, Windows CE 5.0 Pro English, 128MB Ram, 192MB Flash)
InStock
Free Shipping

Description

The VC5090 Vehicle/Fixed-Mount Mobile Computer from Motorola combines rugged construction and high performance wireless networking to enable real-time data access and collection in the harshest environments. Industrial and military grade specifications for vibration, shock, temperature and sealing ensure reliable year-in and year-out performance - whether your workers are on a forklift, in the freezer, moving through the warehouse or at a fixed station. The VC5090 provides support for terminal emulation, browser-based and custom Windows CE applications that streamline warehouse operations, improve decision making, increase productivity and profitability.
  • Internal antennas and support for external antenna - Ensures robust wireless connectivity, even in challenging environments
  • WPAN: Bluetooth v1.2 - Support for wireless printing and cordless scanning
  • Common Symbol architecture with Intel XScale PXA270 at 624 MHz and Windows CE 5.0 Professional - Easily leverage applications developed for other Symbol rugged mobile computers, support for a wide range of applications, realtime processing and data storage needs
  • Eligible for Service from the Start with Comprehensive Coverage - Contract extends normal wear and tear to cover accidental damage to displays, touchscreens and internal components, reduces repair costs
  • Rugged construction: IP66-sealed aluminum housing and MIL-STD-810F military rating Designed to withstand the most extreme environments, protects your investment, dramatically reduces downtime and repair costs
  • Integrated 802.11a/b/g WLAN - Seamless integration with your existing WLAN for powerful realtime data visibility
  • MSP compatible - Easy and cost-effective centralized remote management
  • Standard heater on all models at no extra cost - Reliable operation in freezer/cold store/outdoor environments as low as -22- F/-30- C

Additional Information

Manufacturer Motorola

General Information

  • Product Type: Vehicle Mount Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: VC5090
  • Product Name: VC5090 Vehicle Mount Terminal

Technical Information

  • Connectivity Technology: Wireless

Physical Characteristics

  • Height: 10.6"
  • Width: 12.2"
  • Depth: 4.5"
  • Weight (Approximate): 15.10 lb

Interfaces/Ports

  • Interfaces/Ports:
    • 1 x USB 2.0 Keyboard
    • 1 x USB 2.0
    • 2 x RS-232 Serial

Network & Communication

  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA - Enterprise
    • Wi-Fi IEEE 802.11 a/b/g/d/h/j Certified
    • Encryption - TKIP, 40/128 bit WEP
    • Rich Set of WPAEnterprise 802.1x Security Supplicants
    • CCX V1
    • WPA2 and Full CCX Support
    • WPA - Enterprise
    • Wi-Fi IEEE 802.11 a/b/g/d/h/j Certified
    • Encryption - TKIP, 40/128 bit WEP
    • Rich Set of WPAEnterprise 802.1x Security Supplicants
    • CCX V1
    • WPA2 and Full CCX Support
  • Wireless Technology: Wi-Fi

Display & Graphics

  • Touchscreen: Yes
  • Display Color: Color
  • Screen Size: 12.1"
  • Graphics Modes: SVGA
  • Display Resolution: 800 x 600

Environmental Conditions

  • Electrostatic Discharge (ESD):
    • 20 kV AC Air Discharge
    • 8 kV AC Contact Discharge

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Memory

  • Flash Memory: 192 MB
  • Standard Memory: 128 MB

Software

  • Operating System: Windows CE 5.0 Professional
