Additional Information
| Manufacturer | MultiTech |
|---|---|
| Model Name | MultiModemII |
MultiTech MultiModemII Specs
Technical Information
- Modulation:
- ITU-T V.90
- ITU-T V.92
- ITU-T V.34
- ITU-T V.32bis
- ITU-T V.22bis
- Fax Technology:
- ITU-T V.34
- Class 2.1
- ITU-T V.17
- Group 3
- Error Correction Mode (ECM)
- ITU-T V.29
- Class 2
- Class 1
General Information

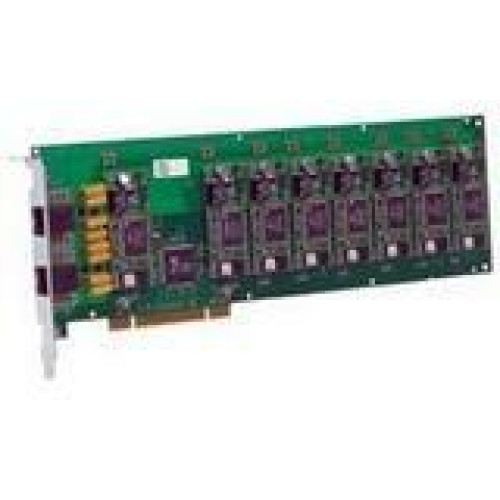

- Product Type: Data/Fax Modem
- Brand Name: Multi-Tech
- Manufacturer: Multi-Tech Systems, Inc
- Product Model: 5634UPCI/8
- Product Name: MultiModemISI 5634UPCI/8 Data/Fax Modem
- Product Line: MultiModem
Physical Characteristics
- Height: 5"
- Width: 13.5"
- Form Factor: Plug-in Card
- Thickness: 800 mil
Interfaces/Ports
- Host Interface: PCI
- Number of Network (RJ-45) Ports: 2
Other
- Platform Supported: PC
- Package Contents:
- Modem
- Phone cables
- Modem
- Phone cables
- Certifications & Standards:
- FCC Part 15B & 68
- UL 1950
- IC CS03
- CE Mark
- Compatibility:
- Windows NT 4.0
- Windows 2000
- Windows 2003
- Linux
- Additional Information:
- Quick connect feature can cut the time required for a dial-up modem to "handshake" to an ISP or other connection in half
- Sustained data rates to 460.8K per port
- Configures remotely and includes password protection to ensure only authorized users are granted remote configuration access
- Allows administrators to install four cards per server for up to 32 modems
- Flash memory for easy updates
- Cabling: Fan out cable with 2 RJ45 connectors and 8 RJ11 connectors
Media & Performance
- Modem Transmission Data Rate: 56 Kbps
- Fax Transmission Data Rate: 33.6 Kbps
Warranty
- Limited Warranty: 2 Year
Power Description
- Input Voltage: 5 V DC
