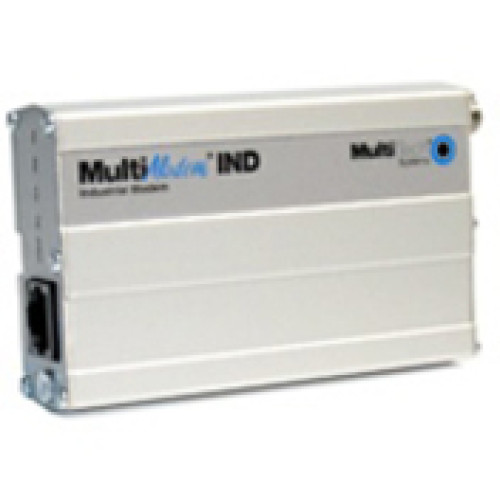

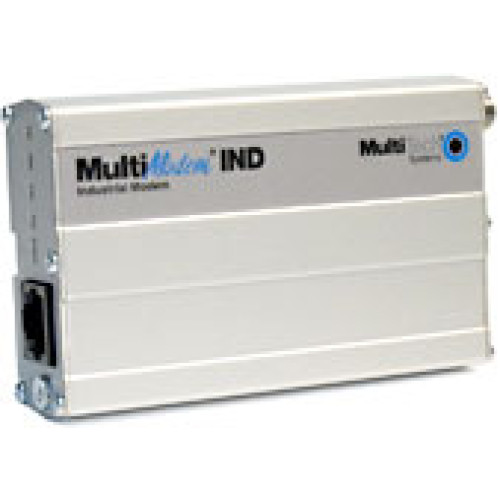

MultiTech MultiModem IND Specs
Technical Information
- Features:
- Caller ID
- Remote Configuration
- Callback Security
- Modulation:
- ITU-T V.92
- ITU-T V.90
- K56flex
- ITU-T V.34plus
- Fax Technology:
- Super G3
- Class 1.0
- Class 2.1
General Information
- Product Type: Data/Fax Modem
- Brand Name: Multi-Tech
- Manufacturer: Multi-Tech Systems, Inc
- Product Model: MT5634INDM
- Product Name: MultiModem IND Industrial Modem
- Product Line: MultiModem
Physical Characteristics
- Height: 0.9"
- Width: 4.3"
- Depth: 2.4"
- Form Factor: Desktop
- Weight (Approximate): 4.10 oz
Interfaces/Ports
- Number of Modem (RJ-11) Ports: 1
- Host Interface: Serial
- Number of Phone Line (RJ-11) Ports: 1
Other
- Platform Supported:
- PC
- Linux
- Certifications & Standards:
- EMC: FCC Part 15 Class B, EN 55022 Class B, EN 55024, EN 61000-6-2
- Safety: UL 60950-1, EN 60950-1, GR 1089
- Compatibility:
- Windows 3.1x
- Windows 95
- Windows 98
- Windows NT
- Windows Me
- Windows 2000
- Windows XP
- Linux
- SCO
- OpenServer
- Additional Information:
- Dial-up or 2-wire leased line
- Flash memory for easy updates
- Meets reliability specifications for vibration and shock
Media & Performance
- Modem Transmission Data Rate: 56 Kbps
- Fax Transmission Data Rate: 33.6 Kbps
Power Description
- Input Voltage: 48 V DC
- Input Current: 180 mA
Warranty
- Limited Warranty: 2 Year
