| Manufacturer | MultiTech |
|---|---|
| Model Name | MultiModemZDX |

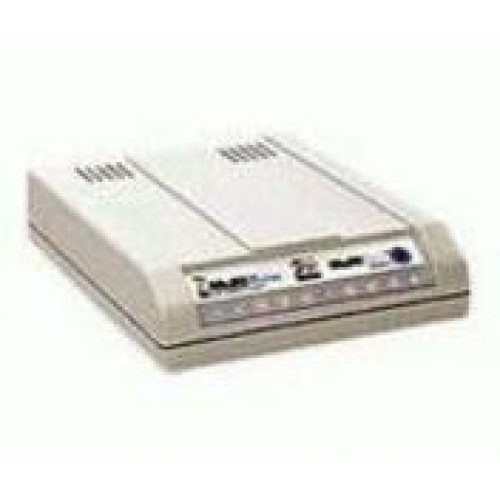

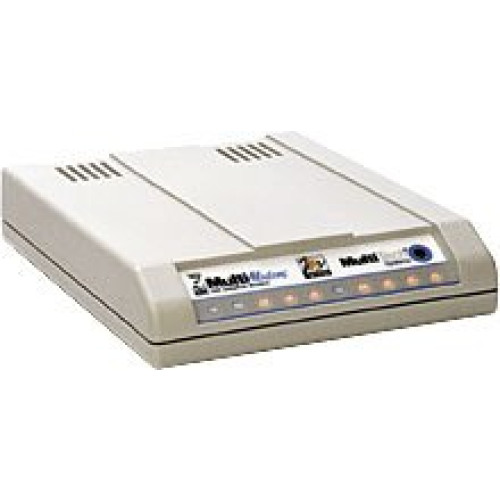

MultiTech MultiModemZDX Specs
Technical Information
- Modulation:
- ITU-T V.92
- ITU-T V.90
- ITU-T V.34
- K56flex
- Fax Technology:
- Group 3
- ITU-T V.17
- Class 1
- Class 2
General Information
- Product Type: Data/Fax/Voice Modem
- Brand Name: Multi-Tech
- Manufacturer: Multi-Tech Systems, Inc
- Product Model: MT5656ZDX-V
- Product Name: MultiModemZDX V.92 Voice/Data/Fax Modem
- Product Line: MultiModem
Physical Characteristics
- Height: 1"
- Width: 4.3"
- Depth: 5.7"
- Form Factor: Desktop
- Weight (Approximate): 8 oz
Interfaces/Ports
- Number of Modem (RJ-11) Ports: 1
- Headphone: Yes
- Number of Phone Line (RJ-11) Ports: 1
- Microphone: Yes
Other
- Platform Supported: PC
- Certifications & Standards:
- Approvals:
- CE Mark
- EMC: FCC Part 15 Class B, EN55022, EN55024
- Safety: cUL, EN60950, UL60950
- Telecom: CS03, FCC Part 68, TBR21
- Additional Information:
- Voice mail support and full-duplex speaker phone
- Quick connect and Modem-on-hold support
- Phone number storage for automatic dialing
- Automatic call answering
- Automatic rate detection and negotiation
- Small footprint and stackable design
- Connectors:
- One DB25S (EIA RS-232C/D or V.24)
Media & Performance
- Modem Transmission Data Rate: 56 Kbps
- Fax Transmission Data Rate: 14.4 Kbps
Warranty
- Limited Warranty: 2 Year
