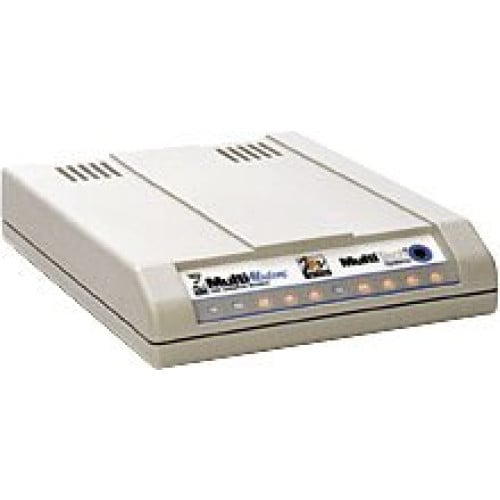

MultiTech MultiModemZDX Data Networking
Part #: MT5656ZDX | SKU: MUL19091

The MultiTech MultiModemZDX desktop modem delivers dial-up data transfer and faxing capabilities making it ideal for the mainstream PC market. It features automatic call answering, automatic rate detection and negotiation and dial-up phone line connectivity for asynchronous equipment. They also feature custom installation support (depending on model) with features like 11-bit support, Multi-Tech command set, and remote configuration.

MultiTech MultiModemZDX Data Networking

Part Details: Multi-Tech MT5656ZDX MultiModemZDX V.92 Data/Fax Modem - Serial - 2 x RJ-11 , 1 x DB-25 RS-232C Serial - 56 Kbps. All MultiTech products are Non-Cancelable and Non-Returnable.

Additional Information

Manufacturer MultiTech
Model Name MultiModemZDX

Technical Information

  • Features:
    • Caller ID
    • Auto-answer
  • Modulation:
    • ITU-T V.92
    • ITU-T V.90
    • ITU-T V.34plus
    • ITU-T V.34
    • ITU-T V.34bis
    • ITU-T V.32
    • ITU-T V.22bis
    • ITU-T V.22
    • Bell 212A
    • Bell 103
    • ITU-T V.21
  • Fax Technology:
    • Super G3
    • Class 1.0
    • Class 2.0
    • Class 2.1
    • TIA/EIA TR29.2
    • T.4
    • T.30
    • EIA/TIA-578 Class 1
    • EIA/TIA 592 Class 2

General Information

  • Product Type: Data/Fax Modem
  • Brand Name: Multi-Tech
  • Manufacturer: Multi-Tech Systems, Inc
  • Product Model: MT5656ZDX
  • Product Name: MT5656ZDX MultiModemZDX V.92 Data/Fax Modem
  • Product Line: MultiModem

Physical Characteristics

  • Height: 1.2"
  • Width: 5.8"
  • Depth: 4.3"
  • Form Factor: Desktop
  • Weight (Approximate): 8 oz

Interfaces/Ports

  • Number of Modem (RJ-11) Ports: 1
  • Host Interface: Serial
  • Number of Phone Line (RJ-11) Ports: 1

Other

  • Platform Supported:
    • PC
    • Linux
  • Package Contents:
    • MT5656ZDX MultiModemZDX V.92 Data/Fax Modem
    • A DC power transformer
    • One RJ11 phone cable
    • A printed Quick Start Guide
    • A CD containing modem drivers, communications software (PhoneTools), this User Guide, AT Commands Reference
    • Guide which includes voice commands, a Fax 1 Commands Reference Guide, and Adobe Acrobat software
    • Four vinyl gripper feet for the bottom of the modem
    • MT5656ZDX MultiModemZDX V.92 Data/Fax Modem
    • A DC power transformer
    • One RJ11 phone cable
    • A printed Quick Start Guide
    • A CD containing modem drivers, communications software (PhoneTools), this User Guide, AT Commands Reference
    • Guide which includes voice commands, a Fax 1 Commands Reference Guide, and Adobe Acrobat software
    • Four vinyl gripper feet for the bottom of the modem
  • Certifications & Standards:
    • FCC Part 15 Class B
    • FCC Part 68 Telecom
    • EMC, Safety, and R&TTE Directive
    • CE
    • 89/336/EEC
    • 73/23/EEC
    • 1999/5/EC
    • UL-CUL
  • Compatibility:
    • Windows 95
    • Windows 98
    • Windows NT
    • Windows 2000
    • Linux (2.2.x kernal)
  • Additional Information:
    • Command Buffer: 40 Characters
    • Transmission Level: -11 dBm (North America and Pan Euro) - varies by country setting
    • Frequency Stability: ±0.01%
    • Receiver Sensitivity: -43 dBm under worst-case conditions
    • AGC Dynamic Range: 43 dB
    • Data Format: Serial, binary, asynchronous
    • Voice Mode Sampling: Up to 44.100 KHz (down-sampled to 11.025KHz)

Media & Performance

  • Modem Transmission Data Rate: 56 Kbps
  • Fax Transmission Data Rate: 14.4 Kbps

Warranty

  • Limited Warranty: 2 Year

Power Description

  • Input Current: 150 mA
