model-1932 O'Neil

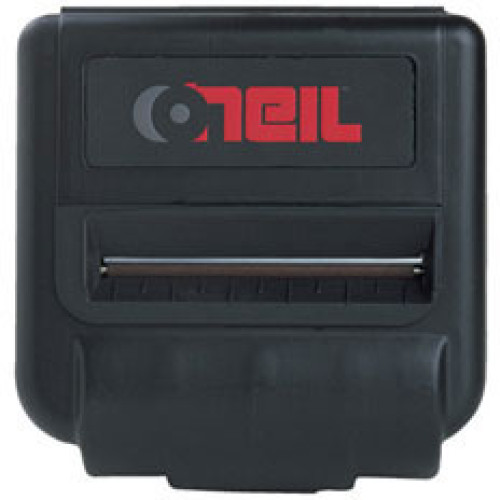

O'Neil microFlash 4t Wireless Portable Printer

The flagship of the O-Neil of reliable printing solutions is the microFlash 4t Wireless direct thermal portable printer. This workhorse portable offers the most reliable performance available, printing outstanding quality 4" receipts, proof of deliveries, labels, and invoices. The 4t offers serial printing as well as wireless, and is simply your finest choice worldwide for route accounting, direct store delivery, field service, logistics, home delivery and pre-sales systems.
  • WLAN or WPAN networking technologies
  • Supports a wide variety of handheld computers from leading manufacturers
  • Exceptional print quality (203 dpi resolution)
  • Fonts, graphics and operating system stored in flash memory
  • Supports international character sets and any Bitstream
Starting At: $1,046.00 $687.33

View all options

Refine Your Options
Shop By
Shopping Options
Manufacturer
  1. Datamax-O'Neil (6)
  2. O'Neil (7)
Interface Options
  1. Bluetooth (3)
  2. Serial (7)
  3. Wireless (3)
Printer Type
  1. Mobile (13)
Maximum Print Width
  1. 4.10 (1)
  2. 4.00 (12)
Print Speed
  1. 2 (4)
  2. 2.5 (9)
  1. 200360-100 - Datamax-O'Neil microFlash 4t Wireless Portable Bar code Printer

    microFlash 4t Wireless, Portable Direct thermal Printer, 203 dpi, 4.09 inch Print width, 2.5 ips, Bluetooth interface
    $1,046.00 $687.33
    Ships Today
    Free Shipping
    - +
  2. 200362-100 - Datamax-O'Neil microFlash 4t Wireless Portable Bar code Printer

    microFlash 4t Wireless, microFlash 4te Portable Direct thermal Printer (203 dpi, 4 inch Print width, 2.5 ips, Bluetooth and E-Charge)
    $1,046.00 $687.33
    Ships Today
    Free Shipping
    - +
  3. 200370-100 - Datamax-O'Neil microFlash 4t Wireless Portable Bar code Printer

    microFlash 4t Wireless, Portable Direct thermal Printer, 203 dpi, 4.09 inch Print width, 2.5 ips, Swivel Belt Clip, 802.11b/g interface
    $1,204.00 $788.43
    Ships Today
    Free Shipping
    - +
  4. 200361-100 - Datamax-O'Neil microFlash 4t Wireless Portable Bar code Printer

    microFlash 4t Wireless, microFlash 4te Portable Direct thermal Printer (203 dpi, 4 inch Print width, 2.5 ips, Bluetooth, Swivel Belt Clip and Linerless)
    $1,093.00 $717.54
    Ships Today
    Free Shipping
    - +
  5. 200371-100 - Datamax-O'Neil microFlash 4t Wireless Portable Bar code Printer

    microFlash 4t Wireless, microFlash 4te Portable Direct thermal Printer (203 dpi, 4 inch Print width, 2.5 ips, 802.11b/g, Swivel Belt Clip and Linerless)
    Free Shipping
  6. 200365-100 - Datamax-O'Neil microFlash 4t Wireless Portable Bar code Printer

    microFlash 4t Wireless, microFlash 4te Portable Direct thermal Printer (203 dpi, 4 inch Print width, 2.5 ips, Bluetooth, Card Reader and Swivel Belt Clip)
    Free Shipping
  7. 200235-000 - O'Neil microFlash 4t Wireless Portable Bar code Printer

    microFlash 4t Wireless, 4" DT, 203 dpi, Radio Ready (requires (Part# 430140-000) for 802.11b communications), swivel belt clip, linerless
    Free Shipping
  8. 200232-000 - O'Neil microFlash 4t Wireless Portable Bar code Printer

    microFlash 4t Wireless, 4" DT, 203 dpi, Bluetooth, swivel belt clip
    Free Shipping
  9. 200231-000 - O'Neil microFlash 4t Wireless Portable Bar code Printer

    microFlash 4t Wireless, 4" DT, 203 dpi, Radio Ready (requires (Part# 430140-000) for 802.11b communications), swivel belt clip
    Free Shipping
  10. 200250-100 - O'Neil microFlash 4t Wireless Portable Bar code Printer

    microFlash 4t Wireless, 4" DT, 203 dpi, 2.5 ips, Bluetooth, IrDA, Serial, swivel belt clip, card reader
    Free Shipping

Items 1 to 10 of 13 total

Page:
  1. 1
  2. 2

Recommended Accessories

Recommended Labels

Data Sheet

  • Prints full size, multi-part delivery receipts and invoices at point of delivery
  • Rugged enough to be used in the front seat of delivery vehicle or carried into receiving area
  • Powered by vehicle's 12-volt system (without voltage adapter), or used remotely with internal battery pack
  • Contains up to 200 sheets of 8.5" x 11" or A4 paper

Specifications

Physical Characteristics:

Size

15.5” x 11.75” x 4.25” 3.93 x 298.45 x 107.95 mm

Weight

101.4oz / 2875g

Environment:

Operating Temp

-20º C to 40º C

Storage Temp

-40º C to 70º C

Charging Temp

5º C to 40º C

Relative Humidity

10% to 90% noncondensing

ESD Protection

8kV Air, 4 kV Contact

Print Technology:

Print Head

9 pin impact

Print Speed

180 Characters per inch

Print Head Life

100 Million Dots

Ribbon Cartridge

2,000,000 Characters

Fonts & Languages:

Memory Capacity

Flash/RAM Memory: 4/1 Mbit

Available Fonts

10 CPI Pica/Elite; 12 CPI Pica/Elite

Int’l Characters

Arab-T, Arab-S, Arab-E, Cyrillic (CY110 & CY210), Greek (GRDOS & GRWIN), Hebrew (HB110, HB210, HB310), Latin

Power Source (Input):

DC Jack 1

12-15 (AC Adapter) spike and surge protected

DC Jack 2

12-15V (Cigarette Adapter) spike and surge protected

Optional Battery

12V Nickel Metal Hydride 3600 mAh

Battery Characteristics:

Type

12V NIMH 3600mAH (DR36)

Endurance

Approx. 224 invoices on one charge

Battery Life

80% of original capacity after 400 cycles

Recharged

3-4 hours (printer connected to an AC Adapter)

Communications:

RS-232 Serial

Up to 38.4k baud. Cables available for most popular laptops and handhelds.

IrDA

IrDA compliant infrared data communications up to 115.2k baud.

Media:

Paper

Fan-fold paper. 3” to 9.5” wide/A4

Number of Copies

Original + 3 copies

Capacity

200 Sheets

Agency Approvals:

Agency

FCC B, CE, C-Tick

Warranty:

Warranty

1 Year (including printer case)

Optional Accessory:

Softcase with storage for AC, Cigarette adapters, Data cable, and Notebook/ Hand held computers

Mounting Brackets - Locking/Non-locking

Battery

External Battery Charger

Accessories

Accessory List

Part Number

Description

Bag

750044-000

8i Carrying Case (Softcase)

Bag For Cradle

750063-000

Softcase, Std Cradle

Mounting Bkt.

220084-000

8i Mounting Bracket (locking)

220142-000

Mf8i Mounting Bracket (economy)

Power Adapters

220140-000

Ac Adapter (US) 19v, 45w, 2.37a

220141-000

Kit, Ac Adapter (Euro Cable) Eos 19v

220108-000

Kit, Truck Power

Battery

550032-000

Battery, 12v, 3500mah, O'Neil

Cig Adapter

510002-002

Cigarette Lighter Adapter 5 Amp Fuse, 6', Ul.

Cables

210147-000

Data Cable - Db9f - 7' (non Coiled)

Manual

110076-000

User Guide, Mf8i
