| Capacity | 320 GB |
|---|---|
| Display Resolution | 1440 x 900 |
| Display Size | 14.1" |
| Interface Options | Bluetooth, Wi-Fi |
| Manufacturer | Panasonic |
| Model Name | Toughbook F9 |
| Operating System | Windows 7 |
Panasonic Toughbook F9 Specs
General Information
- Product Type: Notebook
- Product Series: F9
- Brand Name: Panasonic
- Manufacturer: Panasonic
- Product Model: CF-F9KWJZZ1M
- Product Name: Toughbook F9 CF-F9KWJZZ1M Notebook
- Product Line: Toughbook
Physical Characteristics
- Height: 1.9"
- Width: 12.8"
- Depth: 9.9"
- Weight (Approximate): 3.60 lb

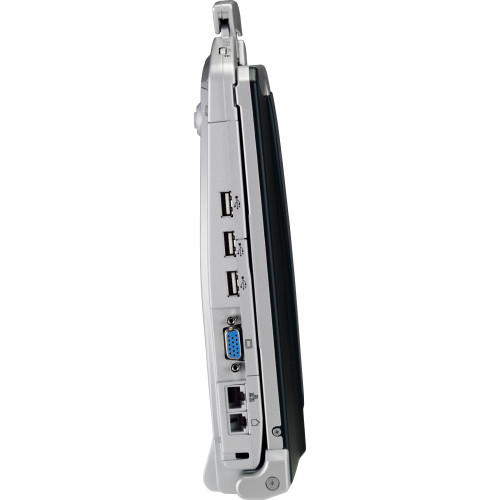

Interfaces/Ports
- Total Number of USB Ports: 3
- VGA: Yes
- Network (RJ-45): Yes
- Audio Line In: Yes
- Audio Line Out: Yes
- Number of USB 2.0 Ports: 3
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority:
- EPEAT Gold
- ENERGY STAR
- RoHS
- Package Contents:
- Toughbook F9 CF-F9KWJZZ1M Notebook
- Lithium Ion Battery
- AC Adapter
- Toughbook F9 CF-F9KWJZZ1M Notebook
- Lithium Ion Battery
- AC Adapter
- Certifications & Standards:
- ACPI
- Section 508 Standards
- Security Features:
- Cable Lock Slot
- Intel Anti-Theft Technology
- Computrace Theft Protection Agent in BIOS
- Trusted Platform Module (TPM) Security Chip v.1.2
- Password Security:
- User
- Supervisor
- Hard Disk Lock
Display & Graphics
- Graphics Controller Manufacturer: Intel
- Graphics Controller Model: HD Graphics
- Graphics Memory Accessibility: Shared
- Display Screen Type: Active Matrix TFT Color LCD
- Backlight Technology: LED
- Screen Mode: WXGA+
- Screen Size: 14.1"
- Aspect Ratio: 16:10
- Screen Resolution: 1440 x 900
- Graphics Memory Technology: DDR3 SDRAM
- Color Supported: 16.7 Million Colors
Processor & Chipset
- Cache: 3 MB
- Processor Core: Dual-core (2 Core)
- 64-bit Processing: Yes
- Processor Manufacturer: Intel
- Chipset Manufacturer: Intel
- Chipset Model: QM57 Express
- Processor Model: i5-560M
- Processor Speed: 2.66 GHz
- Processor Type: Core i5
- Hyper-Threading: Yes
- Direct Media Interface: 2.50 GT/s
Memory
- Memory Standard: DDR3-800/PC3-6400
- Memory Technology: DDR3 SDRAM
- Maximum Memory: 6 GB
- Standard Memory: 2 GB
- Memory Card Reader: Yes
- Memory Card Supported:
- Secure Digital (SD)
- Secure Digital High Capacity (SDHC)
Battery Information
- Maximum Battery Run Time: 7 Hour
- Battery Chemistry: Lithium Ion (Li-Ion)
- Battery Capacity: 5800 mAh
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
Input Devices
- Pointing Device Type: TouchPad
- Keyboard: Yes
Storage
- Hard Drive Capacity: 320 GB
Warranty
- Limited Warranty: 3 Year
Network & Communication
- Ethernet Technology: Gigabit Ethernet
I/O Expansions
- Expansion Slot Type: PC Card Type II
Built-in Devices
- Speakers: Yes
