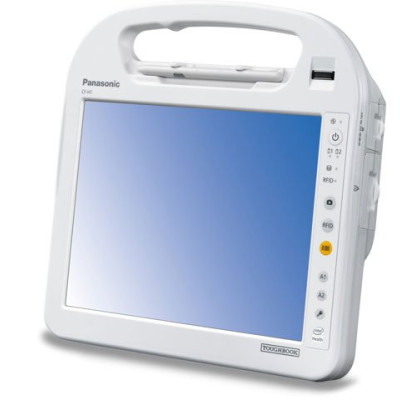

Panasonic Toughbook H1 Health Tablet

Based on Intel's reference design, Panasonic's new Toughbook H1 mobile clinical assistant (MCA), features a bright 10.4" dual-touch display that offers both tablet and touchscreen functionality. Weighing only 3.4 lbs, with hot swappable twin batteries, this mobile computing platform features an 80GB shock-mounted hard drive, the latest Intel mobile processor technology, embedded wireless capabilities, and is designed to meet the specific needs of health care professionals.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

Panasonic Toughbook H1 Health Specs (pdf)



	Software		Genuine Windows Vista^? Business (with XP Tablet downgrade option)

	CPU		Intel^? Atom™ Processor Z540 512KB L2 cache Processor speed 1.86GHz 533MHz FSB

	Storage		80GB shock-mounted HDD

	Memory		1024MB SDRAM (DDR2) standard, expandable to 2048MB

	Display		10.4" dual touch 1024 x 768 XGA daylight-readable LCD Intel^? SCH GMA500 integrated video controller Anti-glare, anti-reflective screen treatments 500 nit LCD brightness

	Audio		Analog Devices AD1883 compliant audio codec Intel^? high definition audio compliant Integrated speaker

	Keyboard & Input		Dual touch LCD (touchscreen and digitizer) Integrated stylus holder 74-key on-screen keyboard with dedicated Windows^? key 3 user-defined programmable buttons (only 2 with optional barcode reader)

	Interface		Docking connector

	Wireless		Optional integrated Gobi™ 3G global mobile Internet (WWAN) Intel^? Wireless WiFi Link 5100 802.11a/b/g/draft-n Bluetooth^? v2.0 + EDR (Class 1)

	Power Supply		Twin hot-swappable lithium ion battery packs (typical 2900mAh, nominal 2750mAh each battery) Battery op: Approximately 6 hours Battery charging time: 7hrs off, 10hrs on AC Adapter

	Security Features		Password Security TPM security chip v.1.2. Computrace^? theft protection agent in BIOS Fingerprint reader Contactless SmartCard reader (ISO 14443 type A/B Compliant)

	Integrated Features		RFID reader (ISO 15693 Compliant) 2.0MP camera with auto focus and dual LED light Fingerprint reader

	Dimensions & Weight		10.4 (L) x 10.6 (W) x 1.3-2.3 (H) Approx. 3.4 lbs (with handle, strap and both batteries)

	Durability Features		Designed to meet MIL-STD-810F and IP65 3-foot drop approved Alcohol wipe-resistant surface Sealed easily sanitizable design Integrated handle and ergonomic rubber hand strap

	Integrated Options		2D barcode reader (reads 1D and 2D) Global Mobile Broadband Internet - Gobi™ technology (EV-DO Rev. A, HSPA) GPS

	Warranty		3-year limited warranty, parts and labor

	Disclaimer		Download the Specification Sheet for the most current and detailed product information.

Extended Details

Refine Your Options

Panasonic Toughbook H1 Health Tablet
Part #: CF-H1BDJBZ6M | SKU: PAN75231

Panasonic Toughbook H1 Tablet PC - Intel Atom Z540 1.86GHz - 10.4"XGA - 2GB DDR2 SDRAM - 80GB - Wi-Fi, Bluetooth - Windows Vista
Panasonic Toughbook H1 Health Tablet
Part #: CF-H1BDBAGJM | SKU: PAN75242

Panasonic Toughbook H1 Tablet PC - Intel Atom Z540 1.86GHz - 10.4"XGA - 1GB DDR2 SDRAM - 80GB - Wi-Fi, Bluetooth - Windows Vista Business
Panasonic Toughbook H1 Health Tablet
Part #: CF-H1BDBBZ1M | SKU: PAN75251

Panasonic Toughbook H1 Tablet PC - Intel Atom Z540 1.86GHz - 10.4"XGA - 1GB DDR2 SDRAM - 80GB - Wi-Fi, Bluetooth - Windows Vista Business
Panasonic Toughbook H1 Health Tablet
Part #: CF-H1BDBBZ6M | SKU: PAN75252

Panasonic Toughbook H1 Tablet PC - Intel Atom Z540 1.86GHz - 10.4"XGA - 1GB DDR2 SDRAM - 80GB - Wi-Fi, Bluetooth - Windows Vista
Panasonic Toughbook H1 Health Tablet
Part #: CF-H1CEKTZ6M | SKU: PAN88045

Panasonic Toughbook H1 CF-H1CEKTZ6M Rugged Tablet - 10.4" XGA - 2 GB RAM - Windows 7 - Intel SoC - Intel Atom Z540 Single-core (1 Core) 1.86 GHz - 1024 x 768 - 6 Hour Maximum Battery Run Time
Panasonic Toughbook H1 Health Tablet
Part #: CF-H1CEKTG1M | SKU: PAN150166

Panasonic Toughbook H1 CF-H1CEKTG1M Rugged Tablet - 10.4" XGA - 2 GB RAM - Windows 7 - Intel Atom Z540 Single-core (1 Core) 1.86 GHz - 1024 x 768 - CDMA2000 (1xEV-DO), HSPA - 6 Hour Maximum Battery Run Time
