| Manufacturer AIDC | Peerless-AV |
|---|---|
| Model Name | Parts |
General Information
- Product Type: Wall Mount
- Brand Name: Peerless-AV
- Manufacturer: Peerless Industries, Inc
- Product Model: EPT650

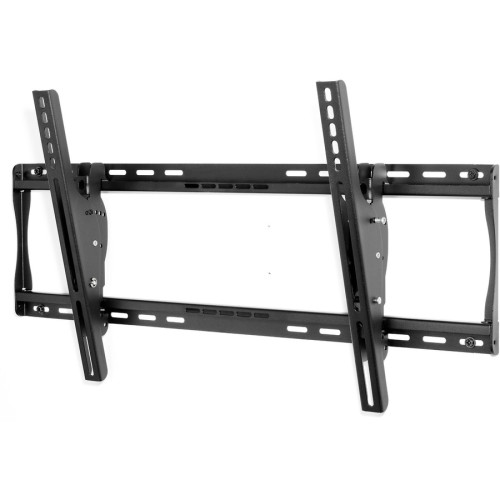

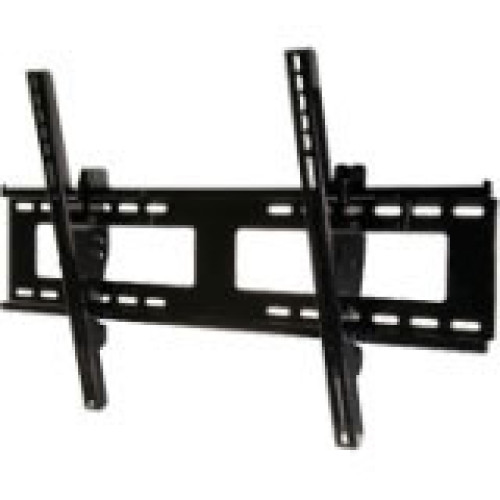

- Product Name: EPT650 Outdoor Universal Wall Mount
- Packaged Quantity: 1
Product Information
- Minimum Screen Size Supported: 32"
- Maximum Screen Size Supported: 55"
- Maximum Load Capacity: 175 lb
- Features:
- Tilt
- Corrosion Resistant
- Tamper Resistant
- Device Supported: Flat Panel Display
Physical Characteristics
- VESA Mount Compatible: Yes
- VESA Mount Standard: 600 x 400
- Height: 18.5"
- Width: 30.8"
- Depth: 2.6"
- Color: Black
- Material: Stainless Steel
- Weight (Approximate): 8.50 lb
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Country of Origin: United States
- Assembly Required: Yes
- Package Contents:
- 1 x Wall Plate
- 1 x Left Tilt Bracket
- 1 x Right Tilt Bracket
- 4 x (#14 x 2.5") Wood Screw
- 4 x Concrete Anchor
- 1 x 4mm Allen Wrench
- 1 x Wall Plate
- 1 x Left Tilt Bracket
- 1 x Right Tilt Bracket
- 4 x (#14 x 2.5") Wood Screw
- 4 x Concrete Anchor
- 1 x 4mm Allen Wrench
- Certifications & Standards:
- VESA: up to 600 x 400mm
- UL
- Additional Information:
- +15°/-5° tilt with 5° lock increments
- 8" (203mm) of horizontal screen adjustment
- Double stud mounting with 16", 20" & 24" stud placements
Warranty
- Limited Warranty: 5 Year
