Additional Information
| Manufacturer | Planar |
|---|---|
| Model Name | PT1501MU |
Technical Information
- Touch Screen Type: Capacitive
- Screen Size: 15" - Active Matrix TFT LCD
- Screen Surface: Anti-Glare
- Dot Pitch: 0.297mm
- Monitor Response Time:
- 4ms Rise
- 12ms Fall
- Mountable: Wall Mountable - VESA
- Front Panel Controls:
- Menu Button
- Select / Auto
- Brightness Minus
- Brightness Plus
- Power Switch
- Power LED
- OSD Controls:
- Brightness
- Contrast
- LCD Adjustment
- Color Temperature
- ECO Mode
- Language
- Other Setup
- Clock
- Phase
- Horizontal Position
- Vertical Position
- Smooth
- OSD Horizontal Position
- OSD Vertical Position
- OSD Transparency
- OSD Time out
- Volume
- Mode Message
- Reset
General Information
- Manufacturer: Planar

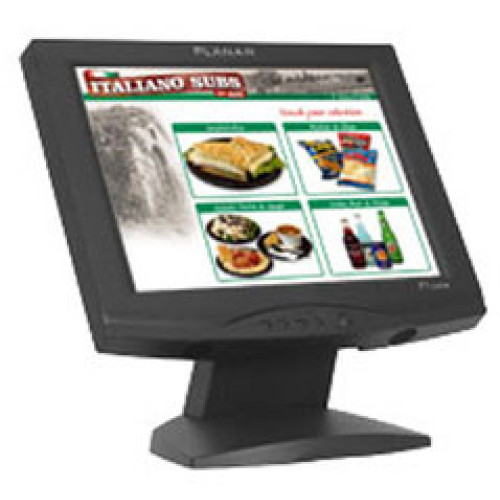

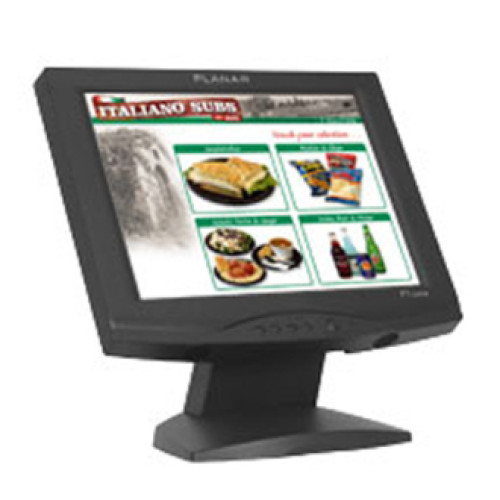

- Product Name: PT1501MU Touch Screen Monitor
Physical Characteristics
- Color: Black
- Dimensions:
- 12.3" (312mm) x 15.9" (404mm) x 2.2" (56mm) - without Stand
- 15.3" (389mm) x 15.9" (404mm) x 7.5" (190mm) - with Stand
- 12.3" (312mm) x 15.9" (404mm) x x 2.2" (56mm) - without Stand
- 15.3" (389mm) x 15.9" (404mm) x x 7.5" (190mm) - with Stand
- Weight: 11.4 lb (5.17 kg)
- Shipping Weight: 16.4lb (7kg)
Interfaces/Ports
- Interfaces:
- USB
- HD DB-15
- Audio Stereo Jack
Other
- Package Contents:
- PT1501MU Touch Screen Monitor
- Power Adapter
- Power Cord
- VGA Signal Cable
- Audio Cable
- USB Cable
- User's Guide
- Landing Strip
- Touchscreen Driver Installation CD-ROM
- Compatibility:
- Linux
- Windows 95
- Windows 98
- Windows Me
- Windows NT
- Windows 2000
- Windows XP
- Additional Information:
- Display Color: 16.7 Million Colors (24-bit)
- Refresh Rate: 60 Hz to 75 Hz
- Tilt Range: -5° to 25°
- Stereo Speakers
- Horizontal: 120°
- Vertical: 100°
Agency Approvals
- Agency Approvals:
- UL
- CSA
- FCC Class B
- CE
- TUV/GS
- TCO '99
- EPA Energy Star
Environmental Conditions
- Temperature:
- 5°C (41°F) to 35°C (95°F) Operating
- -20°C (-4°F) to 60°C (140°F) Storage
- Humidity:
- 80% Operating
- 80% Storage
Power Description
- Input Voltage Range: 110 to 220 V AC
- Power Consumption:
- 30W
- 5W - Standby
- Power Supply: External Power Adapter - Included
Display & Graphics
- Maximum Resolution: 1024 x 768
- Brightness: 350 cd/m2
- Ratio: 400:1 - Contrast Ratio
Warranty
- Manufacturer Warranty: 3 Year(s)
