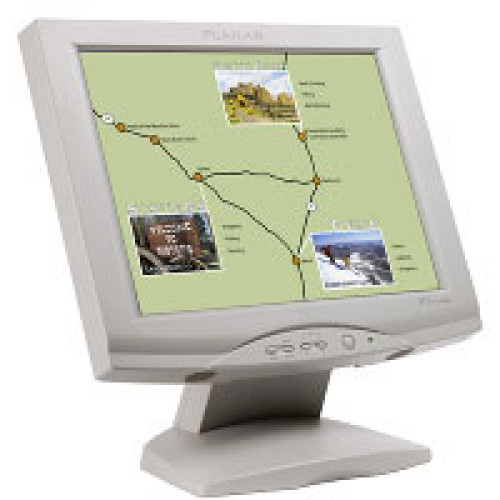

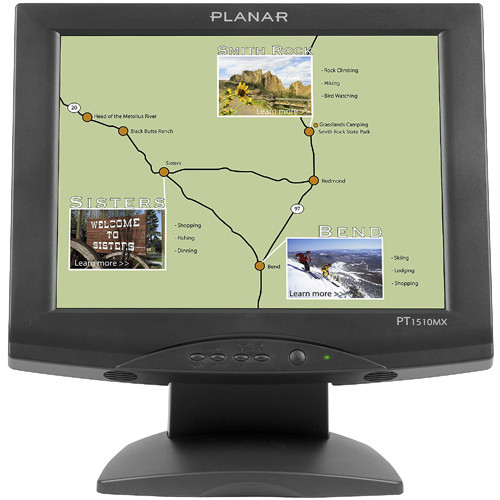

Planar PT1510MX Touchscreen
Part #: 997-3198-00 | SKU: PLA144082

The cost-effective PT1510MX 15" touchscreen monitor is ideal for use in retail, point-of-sale and hospitality applications and is available in black or white. This 5-wire resistive touchscreen is easily integrated with a variety of POS, thin client or PC systems.. The PT1510MX is compatible with mounting options using the 75mm VESA standard hole pattern on the back of the monitor. No drivers are needed for basic touchscreen operation, but for advanced features, drivers are quickly and easily loaded.

Planar PT1510MX Touchscreen

Part Details: Planar PT1510MX Touch Screen LCD Monitor - 15" - 5-wire Resistive - 4:3 - Black

Additional Information

Manufacturer Planar
Model Name PT1510MX

Technical Information

  • Horizontal Viewing Angle: 140°
  • Vertical Viewing Angle: 125°
  • Screen Mode: XGA
  • Mount Type: Wall Mountable
  • Screen Size: 15"
  • Aspect Ratio: 4:3
  • Response Time: 8 ms

General Information

  • Product Type: LCD Touchscreen Monitor
  • Product Series: PT
  • Brand Name: Planar
  • Manufacturer: Planar Systems, Inc
  • Product Model: PT1510MX
  • Product Name: PT1510MX Touch Screen LCD Monitor

Physical Characteristics

  • Height: 12.3"
  • Width: 15.9"
  • Depth: 2.2"
  • Color: Black
  • Weight (Approximate): 17.90 lb

Interfaces/Ports

  • USB: Yes
  • VGA: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • China RoHS
  • Package Contents:
    • PT1510MX Touch Screen LCD Monitor
    • Power Adapter
    • Power Cord
    • VGA Cable
    • RS-232 Cable
    • USB Cable (A to B)
    • Audio-in Cable
    • Driver CD
    • User's Guide
    • Quick Start Guide
    • PT1510MX Touch Screen LCD Monitor
    • Power Adapter
    • Power Cord
    • VGA Cable
    • RS-232 Cable
    • USB Cable (A to B)
    • Audio-in Cable
    • Driver CD
    • User's Guide
    • Quick Start Guide
  • Compatibility:
    • Windows Vista
    • Windows XP
    • XP Embedded
    • Windows 2000
  • Additional Information: Mount Type: 75mm VESA

Video

  • Standard Refresh Rate: 75 Hz
  • Brightness: 250 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1024 x 768
  • Contrast Ratio: 500:1

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: 5-wire Resistive

Audio

  • Speakers: Yes

Warranty

  • Limited Warranty: 3 Year
