The KB-3200 is a spill-proof QWERTY keyboard. It has a special cabling design to prevent accidental disconnects and a special key cap removal tool is standard. The KB-3100 has 8KB of non-volatile memory on board and allows up to 255 ASCII characters per key.
A 5 positions + 1 lockout position key allows multiple levels of programming and answer back code control. The KB-3200 is programmable under DOS and Windows 3.1/95/98/2000/NT. The KB-3200 has 8 multi-shift layers of programming on 5 levels.
|
Specifications |
|||
| Programmable Keys | 53 Keys | ||
| Numeric Keypad | Excluded from count of programmable keys | ||
| Alphanumeric Keys | N/A | ||
| Control-Key Structure |
6 Positions (L0, L1, L2, L3, L4, LP) Key is extractable at positions L0 & L1 |
||
| Control Key Function |
Programmable answer back capability, page-select (5) functions and security lock |
||
| Codes Programmable | ASCII or SCAN CODE | ||
| Capacity Per Key | 1 to 255 characters per key | ||
| Versatile Programmability | Up to 8 multi-shift levels per key, per page | ||
| Memory | Non-Volatile 8KB | ||
| Magnetic Stripe Reader | Optional 2 Track, 3 Track, or JIS | ||
| OS Supported | MS-DOS, WIN '9x / NT / 2000 | ||
| Languages Supported | English | ||
| Power Source | 5V DC / 150mA max. (Standard 200mA max. w/ MSR) | ||
| Interface |
Standard PC AT keyboard protocol 5 pin DIN AT Connector 6 pin mini DIN PS/2 connector |
||
| Key Switches | MTBF: Minimum 15 million operations per key | ||
| Data Memory | 100 years data retention | ||
| Dimensions |
364mm(W) x 210mm(D) x 51mm(H) 10.33" x 8.26" x 2.00" |
||
| Weight | 2.36kg (5.20 lbs) | ||
| Applicable Conformity | CE, FCC Class A | ||
-

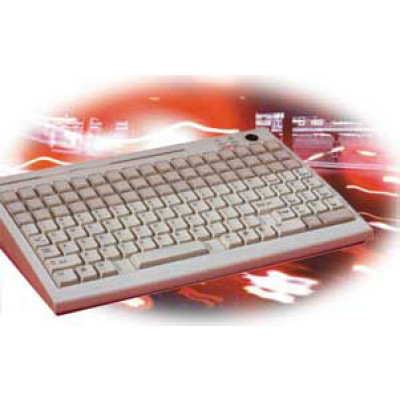

Posiflex KB 3200 Keyboards
Part #: KB-3200M2 | SKU: POS25933KB 3200, 136 key QWERTY keyboard, 53 programmable keys. Includes 2 track MSR.
