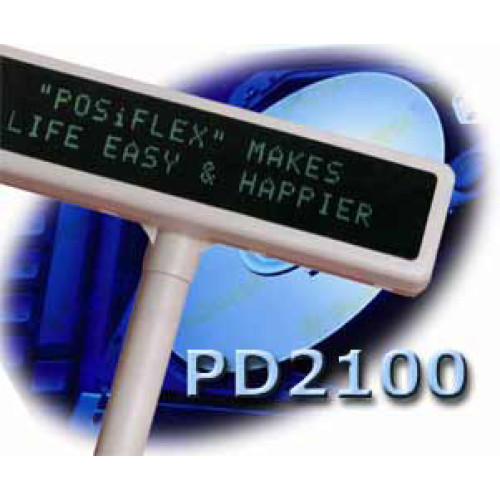

The PD-2100 has 20 large VFD alphanumeric characters on two lines. Interfaces available to connect to computers:
PD-2100S: Standard serial interface.
PD-2100SP: Serial pass-through interface.
PD-2100PP: Parallel pass-through interface.
|
Specifications |
|||
|
Number of Characters Displayed |
2 lines of 20 characters | ||
| Character Format | 5 x 7 dots | ||
| Character Size |
11.25mm(H) x 7.2mm(W) 0.44" x 0.28" |
||
| Display Type | Green Vacuum Fluorescent Display (VFD), | ||
|
Mechanically Adjustable Items |
Horizontal Slide (~100mm), Horizontal Rotation (~360°), Vertical Height (135mm), Viewing Angle (14.5°, 30°) |
||
| Display Head Size |
260mm(W) x 70mm(H) x 60mm(D) 10.24" x 2.76" x 2.36" |
||
| Overall Height | 309 ~ 444mm (12.16" x 17.48") | ||
| Base Size |
80mm(W) x 51mm (H) x 60mm(D) 3.15" x 2.00" x 2.36" |
||
| Application |
Mounting Plate to attach base to counter or to the bottom of cash drawer |
||
| Weight | 0.681 kg (1.5 lbs.) | ||
| Power Supply | Adapter Included | ||
| Interface | Serial, Serial pass through, and Parallel pass through models available | ||
| Command Sets | 4 modes including EPSON command emulation | ||
| Operating Temperature | -20°C ~ +50°C | ||
| Storage Temperature | -40°C ~ +80°C | ||
| Relative Humidity | 90%, non-condensing | ||
| Vibration | 4G | ||
| Shock | 40G | ||
Refine Your Options
-
Posiflex PD 2100 Customer Display
Part #: PD-2100S-110 | SKU: POS7653PD 2100, PD2100, 2x20 character, serial interface. Includes power supply/AC adapter & cable.
