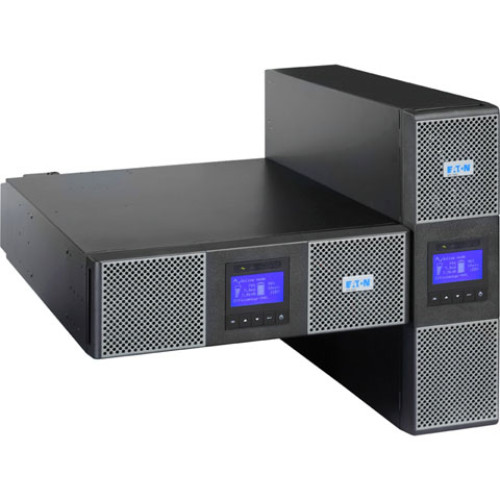

Powerware UPS UPS
Part #: 9PX6KTF5 | SKU: POW210233

If the power goes out, will your Avaya telecommunications equipment remain up and running? The answer is a resounding, Yes! if you have an Avaya-labled UPS protecting it. Designed with a robust, online design and extended battery runtimes, the Avaya UPS completely isolates connected equipment from power disturbances so you don't have to worry about downtime. To make sure the UPS is fully integrated into your application, we have a full line of software and connectivity devices. Avaya UPS models range from 300 VA to 18kVA and most can be mounted in a 2-or 4-post rack enclosure.

Powerware UPS UPS

Part Details: 6 kVA 9PX UPS and 5 kVA Transformer
MSRP: $9,344.00 Price: $6,713.01

Additional Information

Manufacturer Powerware
Model Name UPS

Technical Information

  • Receptacles:
    • 2 x NEMA L6-20R
    • 1 x NEMA L6-30R
    • 18 x NEMA 5-20R
    • Hardwired
  • Plug/Connector Type: NEMA L6-30P
  • Interfaces/Ports:
    • RJ-45
    • RS-232 Serial
    • USB
  • Switching Time: 0 ns

General Information

  • Product Type: Dual Conversion Online UPS
  • Product Series: 9PX
  • Brand Name: Eaton
  • Manufacturer: Eaton Corporation
  • Product Name: 9PX6K 6kVA UPS

Physical Characteristics

  • Height: 10.2"
  • Width: 17"
  • Depth: 28"
  • Form Factor: 6U Tower/Rack Mountable
  • Weight (Approximate): 200.62 lb

Interfaces/Ports

  • Interfaces/Ports:
    • RJ-45
    • RS-232 Serial
    • USB

Other

  • Package Contents:
    • 9PX6K 6kVA UPS
    • Network-MS Web/SNMP Card
    • 4-Post Rail Kit
    • User Manual
    • Quick Start Guide
    • Tower Pedestals
    • Intelligent Power Software Suite CD
    • RS-232 Serial Cable
    • USB Cable
    • Cable Gland for Hardwire Conection
    • Phillips Head Screw Driver
    • 9PXTFMR5 120V Stepdown Transformer
    • 9PX6K 6kVA UPS
    • Network-MS Web/SNMP Card
    • 4-Post Rail Kit
    • User Manual
    • Quick Start Guide
    • Tower Pedestals
    • Intelligent Power Software Suite CD
    • RS-232 Serial Cable
    • USB Cable
    • Cable Gland for Hardwire Conection
    • Phillips Head Screw Driver
    • 9PXTFMR5 120V Stepdown Transformer
  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Software Included: Eaton Intelligent Power Software

Power Description

  • Input Voltage Range:
    • 100 V AC to 276 V AC
    • 120 V AC Nominal
    • 208 V AC Nominal
    • 230 V AC Nominal
    • 240 V AC Nominal
    • 200 V AC Nominal
  • Load Capacity: 6 kVA/5.40 kW
  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Output Voltage:
    • 120 V AC Nominal
    • 208 V AC Nominal
    • 220 V AC Nominal
    • 230 V AC Nominal
    • 240 V AC Nominal
  • Current: 20 A
  • Frequency: 50 Hz to 70 Hz Input

Battery Information

  • Batteries: Sealed, Maintenance-free Lead Acid Hot-swappable
  • Backup/Run Time:
    • 0.05 Hour 5.40 kW Full Load
    • 0.13 Hour 2.70 kW Half Load

Management

  • Network Management: SNMP Manageable Included
  • Bypass Switch: Optional
  • Emergency Power OFF: Yes
  • Overload Protection: Circuit Breaker

Warranty

  • Limited Warranty: 2 Year
