Powerware Products
Part #: 9PX8KTF5 | SKU: POW267089

Products and parts from Powerware.

Powerware Products

Part Details: KIT: (9PX8KPM + 9PXEBM240RT + MBP11K208 + 9PXTFMR5)
MSRP: $12,302.00 Price: $8,838.13

Additional Information

Manufacturer Powerware
Model Name Parts

Technical Information

  • Receptacles:
    • 2 x NEMA L6-30R
    • 18 x NEMA 5-20R
    • Hardwired
  • Plug/Connector Type: Hardwired
  • Interfaces/Ports:
    • RJ-45
    • RS-232
    • USB
  • Switching Time: 0 ns

General Information

  • Product Type: Dual Conversion Online UPS
  • Product Series: 9PX
  • Brand Name: Eaton
  • Manufacturer: Eaton Corporation

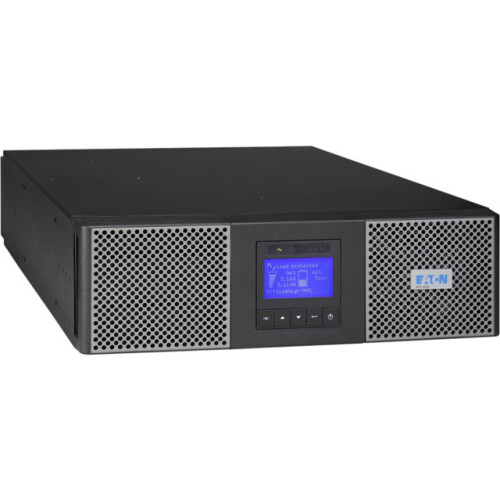

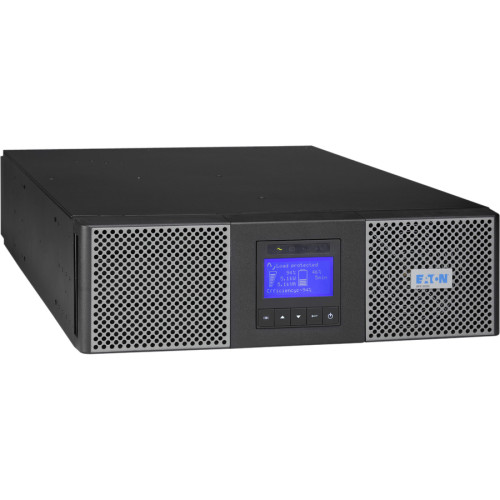

  • Product Name: 9PX 8kVA Tower/Rack Mountable UPS

Physical Characteristics

  • Height: 15.3"
  • Width: 17"
  • Depth: 30"
  • Form Factor: 9U Tower/Rack Mountable
  • Weight (Approximate): 300 lb

Interfaces/Ports

  • Interfaces/Ports:
    • RJ-45
    • RS-232
    • USB

Other

  • Package Contents:
    • 9PX 8kVA Tower/Rack Mountable UPS
    • 9PX8KPM 8 kVA 3U UPS Power Module
    • 9PXEBM240RT 3U Extended Battery Module
    • MBP11K208 Rear-Mount Maintenance Bypass
    • 9PXTFMR5 120V Stepdown Transformer
    • Network-MS Web/SNMP Card
    • 4-Post Rail Kit
    • User Manual
    • Quick Start Guide
    • Tower Pedestals
    • Intelligent Power Software Suite CD
    • RS-232 Serial Cable
    • USB Cable
    • Cable Gland For Hardwire Conection
    • Phillips Head Screw Driver
    • 9PX 8kVA Tower/Rack Mountable UPS
    • 9PX8KPM 8 kVA 3U UPS Power Module
    • 9PXEBM240RT 3U Extended Battery Module
    • MBP11K208 Rear-Mount Maintenance Bypass
    • 9PXTFMR5 120V Stepdown Transformer
    • Network-MS Web/SNMP Card
    • 4-Post Rail Kit
    • User Manual
    • Quick Start Guide
    • Tower Pedestals
    • Intelligent Power Software Suite CD
    • RS-232 Serial Cable
    • USB Cable
    • Cable Gland For Hardwire Conection
    • Phillips Head Screw Driver
  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Software Included: Eaton Intelligent Power Software

Power Description

  • Input Voltage Range:
    • 100 V AC to 276 V AC
    • 200 V AC Nominal
    • 208 V AC Nominal
    • 230 V AC Nominal
    • 240 V AC Nominal
    • 250 V AC Nominal
  • Load Capacity: 8 kVA/7.20 kW
  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Output Voltage:
    • 200 V AC Nominal
    • 208 V AC Nominal
    • 220 V AC Nominal
    • 230 V AC Nominal
    • 240 V AC Nominal
    • 250 V AC Nominal
  • Current:
    • 20 A
    • 30 A
  • Frequency:
    • 50 Hz to 70 Hz Input
    • 40 Hz to 60 Hz Input

Battery Information

  • Batteries: Sealed, Maintenance-free Lead Acid Hot-swappable
  • Backup/Run Time:
    • 0.08 Hour 7.20 kW Full Load
    • 0.27 Hour 3.6 MW Half Load

Management

  • Network Management: SNMP Manageable Included
  • Bypass Switch: Maintenance
  • Emergency Power OFF: Yes
  • Overload Protection: Circuit Breaker

Warranty

  • Limited Warranty: 2 Year
