Printronix T5000r Series Barcode Label Printer Printronix T5000r Series Barcode Label Printer Printronix T5000r Series Barcode Label Printer Printronix T5000r Series Barcode Label Printer Printronix T5000r Series Barcode Label Printer

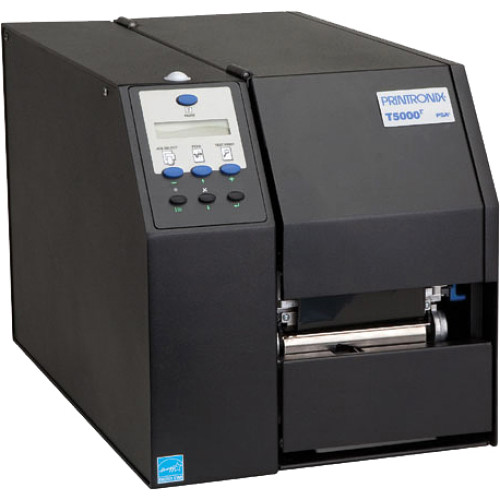

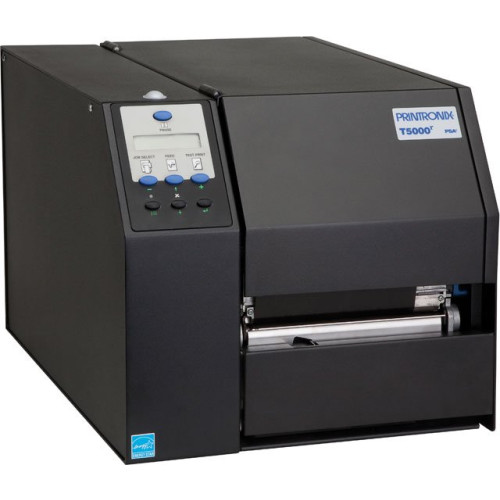

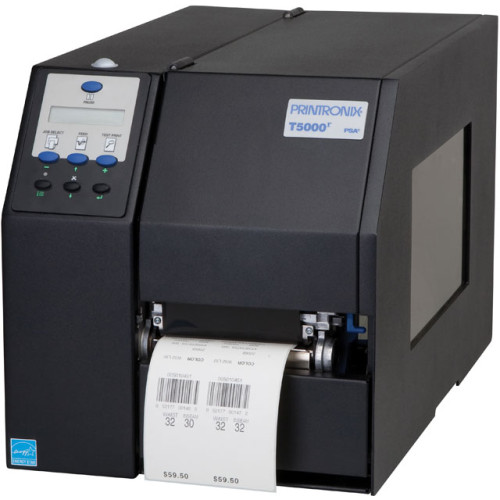

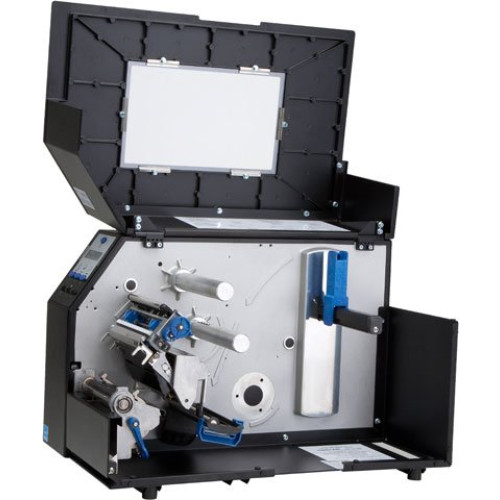

Printronix T5000r Series Barcode Label Printer
Part #: T52X4-0400-000 | SKU: PRI98635

The T5000r Series delivers dependable and reliable barcode printing for compliance labeling and accommodates higher density barcodes, increased graphics or smaller text with snap-in print heads. When used in conjunction with ODV technology (Online Data Validation), the T5000r Series provides verification of scannable barcodes at the point of label creation. Designed as RFID Smart Ready, the T5000r Series converts to an UHF RFID printer encoder as RFID requirements enter the supply chain. Combining barcode compliance and RFID technology the T5000r Series links barcode and EPC data together for storage, retrieval, electronic audits and data synchronization.

Printronix T5000r Series Barcode Label Printer

Part Details: Printronix ThermaLine T5204r Direct Thermal/Thermal Transfer Printer - Monochrome - Desktop - Label Print - Ethernet - USB - Serial - 4.10" Print Width - 10 in/s Mono - 203 dpi - Roll Fed, Fanfold, Tag, Ticket, Film, Synthetic Media, Thermal Transfer Label, Direct Thermal Label - 4.50" Label Width
Need a different version of the Printronix T5000r Series Barcode Label Printer? View all 45 configurations

Additional Information

Manufacturer Printronix
Max Roll Outer Diameter 8
Model Name T5000r Series
Print Resolution 203 dpi
Print Speed 10 ips
Printer Type Industrial
Printing Technology Thermal Transfer
Printronix T5000r Series Specs Printronix T5000r Series Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 10 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.10"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • AUSTPORT
    • Aztec Code
    • BC35
    • BC412
    • Codabar
    • Code 11
    • Code 35
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • EAN-8
    • EAN-13
    • FIM
    • German I-2/5
    • GS1-128
    • GS1 DataBar
    • GS1 DataMatrix
    • IMB
    • Interleaved 2 of 5
    • ITF-14
    • Matrix
    • Maxi Code
    • MSI
    • PDF-417
    • Planet Code
    • Plessey
    • POSTNET
    • PostBar
    • ROYALBAR
    • Telepen
    • UPC-A
    • UPC-E
    • UPC-EO
    • UPCSHIP
    • UPS11

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: T5000r
  • Brand Name: Printronix
  • Manufacturer: Printronix, Inc
  • Product Model: T5204r
  • Product Name: ThermaLine T5204r Label Printer
  • Product Line: ThermaLine

Physical Characteristics

  • Height: 13"
  • Width: 11.7"
  • Depth: 20.5"
  • Form Factor: Desktop
  • Weight (Approximate): 37 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Tag
    • Ticket
    • Film
    • Synthetic Media
    • Thermal Transfer Label
    • Direct Thermal Label
  • Media Thickness: 10 mil
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8"

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: ENERGY STAR
  • Platform Supported: PC
  • Certifications & Standards:
    • IEC60950-2
    • EN55022 Class B
    • EN55024
    • EN61000-3-2
    • EN61000-3-3
    • FCC Part 15 Class B

Fonts & Emulation

  • Language Emulation:
    • PGL
    • ZGL
    • TGL
    • IGL
    • STGL
    • DGL
    • IEGL
    • MGL
    • XML

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Maximum Power Consumption: 150 W
  • Power Source: AC Supply

Memory

  • Standard Memory: 64 MB
  • Memory Technology: SDRAM
  • Flash Memory: 16 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet
