| Interface Options | Ethernet, Serial (RS-232), USB |
|---|---|
| Labels Per Day | more than 10,000 |
| Manufacturer AIDC | Printronix |
| Max Roll Outer Diameter | 8 |
| Model Name | T5304 |
| Print Resolution | 300 dpi, 305 dpi |
| Print Speed | 8 ips |
| Printer Type | Industrial |
| Printing Technology | Thermal Transfer |

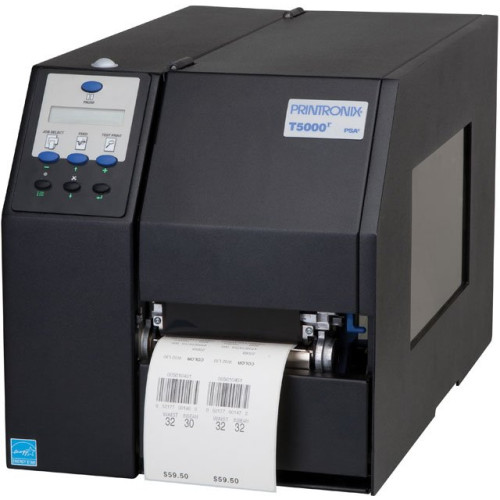

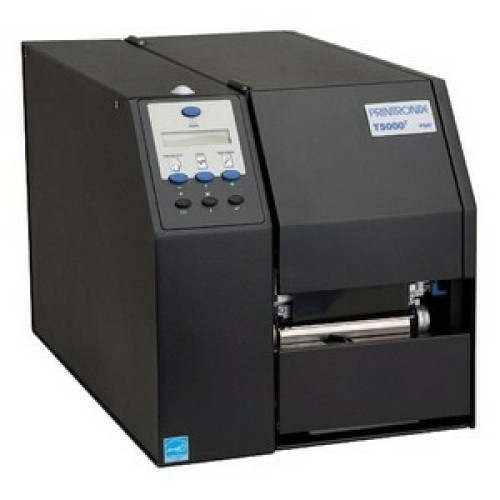

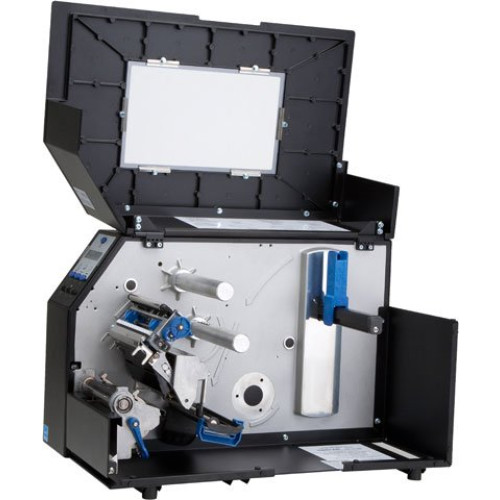

Printronix T5304 Specs
Technical Information
- Maximum Mono Print Speed: 7.99 in/s
- Peel Facility: Yes
- Maximum Print Resolution: 300 dpi
- Print Color: Monochrome
- Maximum Print Width: 4.09"
- Recommended Use: Label Print
- Features:
- Tear-off
- Peel Facility
- Barcode Symbology Supported:
- Aztec Code
- BC35
- BC412
- Codabar
- Code 11
- Code 35
- Code 39
- Code 93
- Code 128-A
- Code 128-B
- Code 128-C
- EAN-8
- EAN-13
- FIM
- GS1-128
- GS1 DataBar
- Interleaved 2 of 5
- ITF-14
- Matrix
- Maxi Code
- MSI
- PDF-417
- Planet Code
- Plessey
- POSTNET
- PostBar
- ROYALBAR
- Telepen
- UPC-A
- UPC-E
- UPC-E0
- UPCSHIP
- UPS11
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Product Series: T5000r
- Brand Name: Printronix
- Manufacturer: Printronix, Inc
- Product Model: T5304r
- Product Name: ThermaLine T5304r Label Printer
- Product Line: ThermaLine
Physical Characteristics
- Height: 13"
- Width: 11.7"
- Depth: 20.5"
- Form Factor: Desktop
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
- Parallel Port: Yes
Media Types & Handling
- Maximum Label Width: 4.50"
- Media Type:
- Roll Fed
- Fanfold
- Label
- Tag
- Ticket
- Film
- Synthetic Media
- Media Thickness: 10 mil
- Media Sensor:
- Transmissive Media Sensor
- Reflective Media Sensor
- Label Core Size: 2.99"
- Maximum Roll Diameter: 8"
Fonts & Emulation
- Language Emulation:
- PGL
- ZGL
- TGL
- IGL
- STGL
- DGL
- IEGL
- MGL
- XML
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: ENERGY STAR
- Platform Supported: PC
Memory
- Standard Memory: 64 MB
- Memory Technology: DRAM
- Flash Memory: 16 MB
Network & Communication
- Ethernet: Yes
- Ethernet Technology: Fast Ethernet
