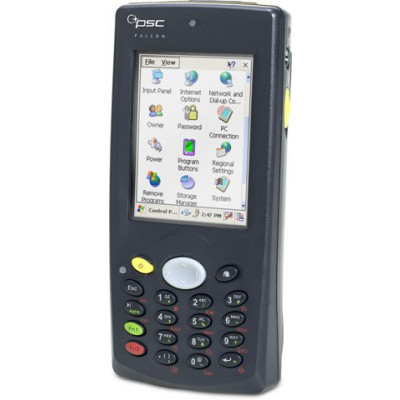

PSC Falcon 4220 Mobile Computer

Falcon 4420 Features

• Intel® XScale™ PXA255 400MHz Processor
• Windows CE .NET Operating System
• Integrated Barcode Scanner (Laser or Linear Imager)
• Ruggedized (IP54 & 4' Drop)
• Optional Handle for Scan Intensive Applications
• Open Architecture – User Accessible SD and CF Slot
• 802.11b Wireless LAN (optional)

The Falcon® 4220 is PSC’s latest generation PDA device, combining a compact, ruggedized form factor with the flexibility of Microsoft’s CE .NET operating system. The Falcon 4220 is designed for retail, warehousing and logistics applications where maximum performance and durability is required in a compact handheld device.

Performance is Power
Under the hood, the Falcon 4220 uses cutting edge technologies from the leaders in mobile and wireless technology, such as Microsoft, Intel, Agere and others. The Falcon 4220 features the Intel® XScale™ PXA255 400MHz processor and the Microsoft™ Windows CE .NET operating system, providing you with the power and flexibility to deploy sophisticated mobile applications in your enterprise.

The Intel XScale processor provides you with the highest performing mobile processor available today along with advanced power management capabilities for extended battery life. Microsoft’s Windows CE .NET operating system gives you the freedom to select the software solution that best meets your needs.

Rugged Yet Versatile
The Falcon 4220 is designed from the ground up for rugged applications. With its IP54 sealing, 4 foot (1.2m) repeated drops to concrete, and wide operating temperature range, the Falcon 4220 stands up to most any demanding application.

Easy To Read Color Display
The Falcon 4220 incorporates the latest technology in Color TFT displays. With its super-bright, high contrast display, the 4220 works as well outdoors as it does inside. The integrated touchscreen allows for pen/touch based input and handwriting recognition.

Maximum Flexibility
The Falcon 4220 offers maximum flexibility with both a user accessible Compact Flash (CF) slot and a Secure Digital (SD) slot.

Falcon 4220 Specifications

Mechanical

Dimensions

• Length: 6.6” / 16.8 cm
• Width: 3.1” / 7.8 cm
• Height: 1.3” / 3.3 cm

Weight

• With battery 12.7 oz / 360 g
• Without battery 11.1 oz / 315 g

Display

• 3.5" / 8.9 cm 240 x 320 graphic, transflective TFT
• 256,000 colors
• Sunlight readable (for outdoor use)

Keypad

• 17 Keys plus 4-way navagation

Construction

• Industrial, high-strength polycarbonate/ ABS-blend plastic

Indicators

• One triple-color LED for ALARM notification (R) and charger indicator (G/B)
• One dual-color LED for scanner indicator

Environmental

Temperature rating

• Operating: 14° to 122° F / -10° to 50° C
• Storage: -4° to 140° F / -20° to 60° C

Humidity

• 5 to 95% NC

Shock

• Multiple 4.0’ / 1.2m drops to concrete

Water & Dust

• IEC529 rating IP54

Optical

Linear Imager

• Light source: 617nm Highly Visible LED
• Scan rate: Up to 200 scans/second
• Depth of Field: See table below

Laser

• Light source: 650nm VLD
• Scan rate: 39 scans/second nominal
• Depth of Field: See table below

Depth of Field

* Minimum distance determined by symbol length and scan angle.
Printing resolution, contrast and ambient light dependent

Decoding Capability (autodiscriminates between)

• UPC-E
• UCC/EAN 128
• EAN-8/JAN-8
• EAN-13/UPC-A
• IATA-25
• ISBN
• Codabar/NW7
• Matrix 2 of 5
• MSI/Plessey
• Korea Code 35
• Italian Pharmacy
• Industrial 2 of 5
• Code 4, 11, 32, 39, 93, 128
• Interleaved 2 of 5
• UPC-EAN Add-on 2/5
• EAN-8 Convert to EAN -13
• UPC-E Convert to UPC-A
• China Postage/Datalogic 25

Safety & Regulatory

Battery

• EN60950
• UL60950-1
• IATA/UN

Electrical

• EN60950
• UL60950
• CSA 60950

Emissions

• FCC Part 15-B
• VCCI
• CISPR 22

Radio

• FCC Part 15-C
• R&TTE
• IC
• IDA

Radio Approved Countries

• Contact PSC

Linear Imager Safety

• Class 1 LED (Europe)

Laser Classification

• CDRH Class II; (CAUTION: Laser Radiation – do not stare into beam)
• IEC 60825-1, Class 2

Docking Station

• Spare battery charging slot
• USB host and client interface
• Standard RS232 communication
• Ethernet module ready (optional)

System

Operating System

• Windows® CE .NET

Microprocessor

• Intel® XScale™ PXA255, 400 MHz

Memory

• 64MB Flash ROM
• 64MB SDRAM

Communication Ports

• Infrared: One IrDA 1.2 compliant port
• Serial: RS232 via optional cable or cradle
• USB: Supports USB v1.1 both host and client (dock and terminal)

I/O Slots

• SD: (Secure Digital) Card Slot
• CD: (Compact Flash) Type II Slot (3.3V)

Audio

• One mono speaker
• 2.5mm stereo earphone jack with microphone input (headset)

Power Options

• 1800mAh Lilon removable/rechargable battery
• Optional 2700mAh hour battery
• 25mAh rechargable backup battery ( Holds system data at least 2 hours without main battery)
• AC adapter with 100-240 VAC, 50-60Hz
• Support for Xscale application modes including: Turbo Mode, Normal Mode, Idle Mode, Sleep Mode

Radio Support

• Optional integrated 802.11b

System Support

• VT100/220, HP700/92, IBM 3270/5250 terminal emulators
• Browser support via Microsoft® Internet Explorer
• TCP/IP Communications

Management Tools

• Falcon Desktop Utility (FDU) for security & configuration
• Falcon Management Utility (FMU) or Wavelink Avalanche for remote device managment & software distribution

Development Environments

• Many standard Windows CE development tools (Embedded Visual C++, Visual C# .NET, Visual Basic .NET, Personal Java 1.1)
• Java Virtual Machine (JVM)
• Falcon® CE Developers Toolkit
• Wavelink Studio
