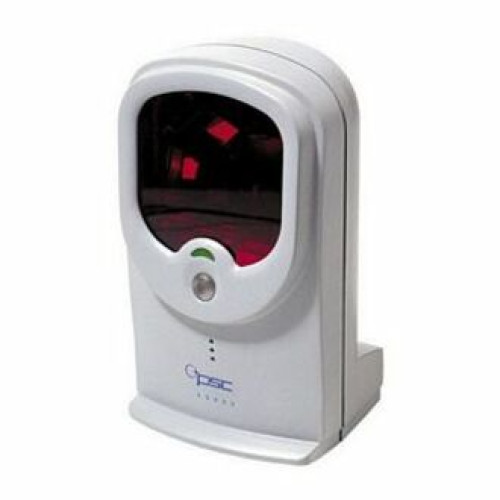

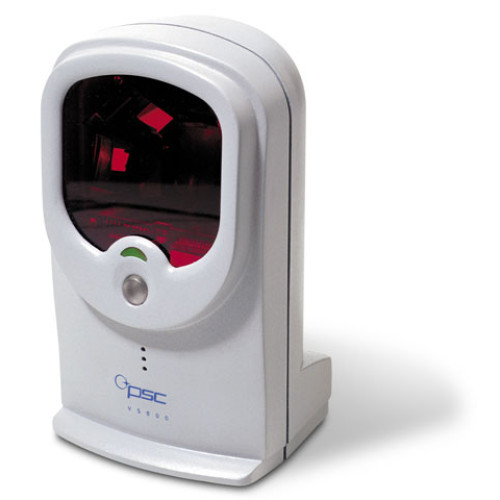

PSC VS800 Barcode Scanner
Part #: 06812001-020001-04 | SKU: PSC30045

The VS800 was designed specifically for point of sale, where space is always at a premium and where scanner performance is a critical component of efficiency and success. The VS800 is the scanner to choose when you need reliable, full-functioned barcode scanning without sacrificing counter space. With optional mounts, operators can position the scanner at various angles to create a work environment that is highly convenient.

PSC VS800 Barcode Scanner

Part Details: VS800, Scanner, Keyboard wedge, RS-232, Standard, 8 ft./3 ft., Gray

Need a different version of the PSC VS800 Barcode Scanner? View all 3 configurations

Additional Information

Manufacturer AIDC	PSC
Model Name	VS800
Scanner Capability	1D

PSC VS800 Specs (pdf)

Technical Information

Scan Pattern: Omni-directional
Connectivity Technology: Cable
Light Source: Laser
Barcode Symbology Supported:
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- JAN-8
- JAN-13
- Code 128
- Code 39
- Code 93
- Interleaved 2 of 5
- Codabar
- MSI/PLESSEY
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- JAN-8
- JAN-13
- Code 128
- Code 39
- Code 93
- Interleaved 2 of 5
- Codabar
- MSI/PLESSEY
Maximum Scan Resolution: 5 mil
Depth of Field:
- 3" - 5"@5 mil
- 2.50" - 9"@7.50 mil
- 2.50" - 13"@10 mil
- 2.50" - 19"@13 mil

General Information

Product Type: Desktop Barcode Scanner
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Model: VS800
Product Name: VS800 Compact Barcode Reader

Physical Characteristics

Weight (Approximate): 12.80 oz

Interfaces/Ports

Host Interface: Multi-interface

Other

Package Contents:
- VS800 Compact Barcode Reader
- EURO Power Supply
- Keyboard Wedge Cable (8-0466-15)
- VS800 Compact Barcode Reader
- EURO Power Supply
- Keyboard Wedge Cable (8-0466-15)
Additional Information:
- Supported Interfaces:
- Serial
- Keyboard Wedge

Warranty

Limited Warranty: 1 Year
