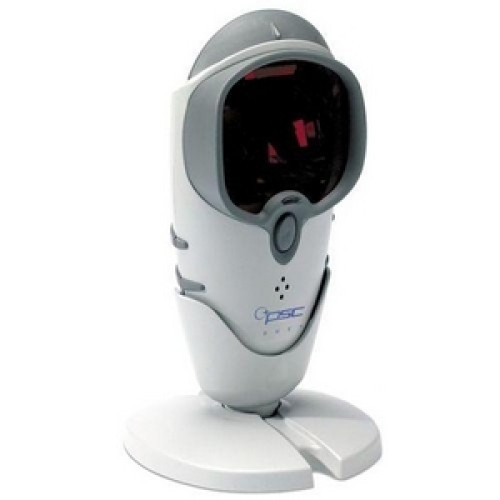

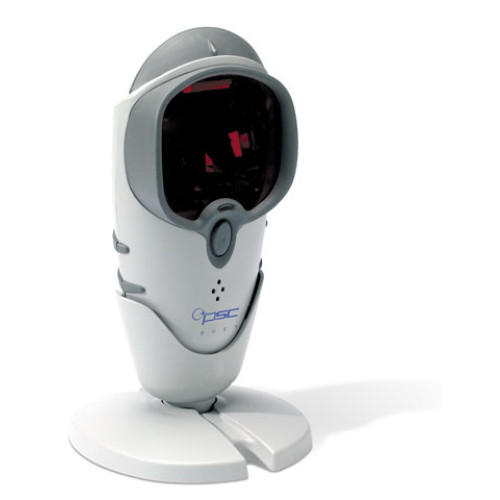

PSC Duet Barcode Scanner
Part #: 4310001-1100008003 | SKU: PSC23163

With the Duet Dual Action Scanner retailers can now scan anything at the point-of-sale: small items large bulky items even items that aren't individually barcoded. Duet's unique Targeted Handheld capability eliminates the need to manually key items without barcodes such as unpackaged or specialty products. Simply direct the Scanner's pointer beam at a barcoded PLU list target the correct item press the trigger button and the correct data is captured. By isolating a single barcode this capability avoids reading the wrong barcode in a cluster of items. Using an advanced visible laser diode scanning system the Duet scanner offers a large 9 (22.9 cm) depth-of-field and wide scan area for higher performance hands-free scanning. With enhanced decoding capabilities the Scanner is fast with high first-pass read rates on a variety of barcodes including labels that are long highly truncated partially obscured and difficult to read. It also includes the patented PSC Edge software which automatically reconstructs torn or disfigured labels. And it reads labels with elements as small as 5 mils (0.127 mm). This versatile scanner autodiscriminates UPC or EAN plus 5 industrial symbologies and supports P2 P5 and C128 add-ons. With two scan windows the scanner can easily adapt to either fixed or handheld scanning applications: the omnidirectional pattern for general fixed retail scanning or the single scanline when held in the hand for reading large bulky items or barcoded PLU lists.

PSC Duet Barcode Scanner

Part Details: Duet, Includes power supply and cable for Dresser Wayne

Additional Information

Manufacturer PSC
Model Name Duet

Technical Information

  • Scan Pattern:
    • Single Line
    • Omni-directional
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC-A
    • UPC-E
    • EAN-13
    • EAN-8
    • JAN-13
    • JAN-8
    • UPC P2 Add-ons
    • UPC P5 Add-ons
    • UPC Add-on C128
    • Code 128
    • Code 39
    • Interleaved 2 of 5
    • Codabar
    • MSI/PLESSEY
    • Autodiscriminate UPC Edge with Add-ons & 5 industrials
    • Label Code
    • Autodiscriminate UPC Edge with Add-ons & 5 industrials
    • UPC-A
    • UPC-E
    • EAN-13
    • EAN-8
    • JAN-13
    • JAN-8
    • UPC P2 Add-ons
    • UPC P5 Add-ons
    • UPC Add-on C128
    • Code 128
    • Code 39
    • Interleaved 2 of 5
    • Codabar
    • MSI/PLESSEY
    • Autodiscriminate UPC Edge with Add-ons & 5 industrials
    • Label Code
    • Autodiscriminate UPC Edge with Add-ons & 5 industrials
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 1" - 2.50"@5 mil
    • 0 mil - 6"@7.50 mil
    • 0 mil - 7"@10 mil
    • 0 mil - 9"@13 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Name: Duet Dual Action Barcode Reader
  • Product Line: Duet

Physical Characteristics

  • Height: 7"
  • Width: 3.4"
  • Depth: 2.6"
  • Weight (Approximate): 9 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Package Contents:
    • Duet Dual Action Barcode Reader
    • Power Supply
    • Cable
    • Duet Dual Action Barcode Reader
    • Power Supply
    • Cable
  • Certifications & Standards:
    • Electrical :
    • Gost R
    • TÜV
    • UL
    • cU
    • Emissions:
    • FCC-A
    • 47 CFR Part 15J
    • BCIQ CNS 13438
    • EN 55022-B;
    • AS/NZ 3548
    • CCI Class B
    • Laser classification:
    • CDRH Class IIa
    • IEC 60825 Class 1
  • Additional Information:
    • Supported Interface:
    • RS-232
    • IBM 46XX
    • OCIA
    • Standard and Universal Keyboard Wedges
    • Wand Emulation

Power Description

  • Input Voltage: 14 V DC
Extended Details

Recommended Accessories for Model: PSC Duet Barcode Scanner

  • PSC Duet Accessory
    Part #: 8-0466-15 | SKU: PSC18252

    Keyboard Wedge cable assembly, 11ft, 5-6 Din, Universal, E-P
    MSRP: $74.00 Price: $57.66
  • PSC Duet Accessory
    Part #: 8-0434-08 | SKU: PSC3142

    RS-232 cable, 12ft, 9-pin D
    MSRP: $101.00 Price: $78.70
  • PSC Duet Accessory
    Part #: 54697 | SKU: PSC61754

    Kit (Base/Stand Assembly - Fixed) for the Duet
  • PSC Duet Accessory
    Part #: 8-0434-02 | SKU: PSC6057

    RS-232 cable, 12 ft., 25-pin D
  • PSC Duet Accessory
    Part #: 4004-0710 | SKU: PSC6058

    AC adapter with US power cord
