rf IDEAS pcProx Plus Accessory

The RF-IDeas pcProx Plus is a cutting-edge card reader that combines proximity and contactless technologies into one single reader. It is a desktop reader that possesses the capabilities of reading both 125 kHz proximity cards and 13.56 MHz contactless cards. The pcProx Plus reader eliminates the need for manual entry and provides error-free identification and security throughout the workplace. The pcProx Plus allows users to use their building access card or any 125 kHz or 13.56 MHz tags/labels for other forms of identification. The plug-n-play reader comes with flash memory, allowing the user to quickly configure the output to meet their needs. With its dual-frequency multi-technology, the pcProx Plus is highly configurable and capable of simultaneously handling any two of the available technologies.

Starting at: $8.86

See all options

Specs & Info
All Options

rf IDEAS pcProx Plus Specs (pdf)

Features

Easy interface

USB models connect directly to a USB port and can be configured to send data as keystroking, non-keystroking or serial ASCII.

RS-232 models connect to a serial port and send data as ASCII. Ethernet models connect through an RJ45 connection and are sent data as either ASCII or E/IP. Note: To utilize PoE and E/IP features with some models, a C-6200 adapter may be required

Compatibility

Compatible with Windows CE/2000/XP/ Vista/7, Macintosh, Solaris, ThinManager thin clients, and Linux. (Free configuration software required on Windows operating system.)

Improves accuracy of information and productivity

Eliminates errors associated with individual identification.

Versatile mounting options

Featuring an articulated cable, the standard housing reader can easily be mounted on kiosks, monitors, time clocks, and more. *Also available in a wall mount design.

Meets Medical/Healthcare HIPAA Requirements

When used as a log-on reader

Meets CJIS Compliance Requirements

All pcProx readers are CJIS compliant and designed to keep law enforcement and criminal justice organizations current with compliance requirements

Meets IP67 Compliance Requirements

pcProx Wall Mount Only-When the IP67 Wall Mount reader is installed in accordance with the IP67 Wall Mount instructional guide

pcProx125 kHz Supported Cards-Partial List

AWID
Cardax*
CASI-RUSCO
Deister*
DIGITAG
EM 410x
Farpointe Data
GProx II*
HID Prox
HiTag 1, S & 2
IDTECK
Indala (Motorola)
ioProx (Kantech)
Keri NXT
Keri* Nexwatch (Honeywell)
Pyramid
Radio Key
ReadyKey Pro**Unique ID

pcProx13.56 MHz Supported Cards-Partial List

iCLASSSE
iCLASS ID
iCLASS CSN
NFC CSN Type 2/4
Advant CSN (Legic)
I-Code CSN
Tag-It CSN
eTag CSN
I-tag CSN
ISO 14443A CSN¹
ISO 15693 CSN
MIFARE CSN
MIFARE Ultralight CSN
my-d CSN
DESFire CSN¹Select NFC credentials

Specifications

Typical Maximum Read Range: 1.0" - 3.0" (2.5 - 7.6cm) dependent upon proximity card type and environmental conditions. Slightly diminished performance for certain card type as compared to pcProx reader.
Dimensions: 3 3/8" x 2" x 0.6" (8.57 x 5.08 x 1.52cm)
Weight: 4.0 oz (113.39g)
Power Supply: USB Self-powered; PoE; Serial RS-232: several power options exist
Interface: USB, Serial RS-232, Ethernet
Transmit Frequency: 125 kHz & 13.56 MHz
Operating Temperature Range: -22F to 150F (-30C to 65C)
Operating Humidity Range: 5% to 95% relative humidity, non-condensing
Storage Temperature Range: -40F to 185F (-40C to 85C)
Indicators: Tri-state LED, dual tone beeper
Desktop Unit Color: Black & Pearl
Cable Length: 6", 16" & 60" (Custom Lengths Available)
Certifications: FCC, United States; CE Mark, Europe; C-TICK, RoHS, Industry Canada, UL

Extended Details

Refine Your Options

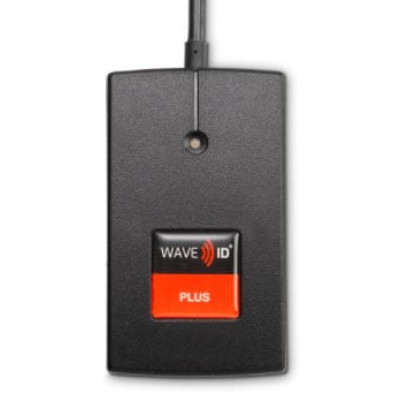

rf IDEAS WAVE ID Plus Keystroke Access Control Reader
Part #: KT-800W1AK7-IP67 | SKU: RF 522063

Access Control Readers - rf IDEAS WAVE ID Plus Keystroke - V2 with iCLASS SE & Seos Surface Mount IP67 Black 9v External Power Supply RS-232 Reader

MSRP: $346.51 Price: $285.30
rf IDEAS WAVE ID Plus Keystroke Access Control Reader
Part #: RDR-800W1AK8 | SKU: RF 509908

Access Control Readers - rf IDEAS WAVE ID Plus Keystroke - V2 with iCLASS SE & Seos Surface Mount Black 5v External Power Supply RS-232 Reader
rf IDEAS WAVE ID Plus Keystroke Access Control Reader
Part #: KT-805W1AKE-P-IP67 | SKU: RF 509884

Access Control Readers - rf IDEAS WAVE ID Plus Keystroke - V2 Surface Mount IP67 Black TCP/IP Ethernet POE Reader
rf IDEAS WAVE ID Plus Keystroke Access Control Reader
Part #: RDR-805W1AK0 | SKU: RF 509935

Access Control Readers - rf IDEAS WAVE ID Plus Keystroke - V2 Surface Mount Black USB Virtual COM Reader
rf IDEAS WAVE ID Plus Keystroke Access Control Reader
Part #: RDR-805W1AK9 | SKU: RF 509941

Access Control Readers - rf IDEAS WAVE ID Plus Keystroke - V2 Surface Mount Black 5v USB pwr tap RS-232 Reader
rf IDEAS WAVE ID Plus Keystroke Access Control Reader
Part #: RDR-80581AKU-C16 | SKU: RF 258510

Access Control Readers - rf IDEAS WAVE ID Plus Keystroke - V2 Black 16in. USB Reader
rf IDEAS Wave ID Plus
Part #: RDR-80581AKU | SKU: RF 182781

Access Control Reader - RF-Ideas Wave ID Plus - Keystroke - V2 Black - USB Reader. Card Technology: HID?Prox - AWID - CASI-RUSCO - EM 410x (4100/4102/4105/4200) - NFC Type 3 CSN (Felica) - Honeywell Nexwatch - Indala - Kantech ioProx - HID?iCLASS?CSN - ISO 14443A CSN - ISO 14443B CSN - ISO 15693 CSN - MIFARE?Classic CSN - MIFARE?DESFire?EV1 CSN - MIFARE?Plus CSN - MIFARE?Ultralight CSN - LEGIC Advant CSN (ISO 15693 / 14443A) - aptiQ?MIFARE?CSN - Bosch ReadyKey Pro UID - Cardax UID - CDVI - CEPAS CAN - Corbin Russwin?UID - Cotag - DIGITAG - Dimpna UID - Farpointe Data Pyramid - Farpointe Data Pyramid UID - GProx-II ID - GProx-II UID - HiTag 1 CSN - HiTag 2 CSN - HiTag S CSN - ID Teck (128 Bits) - Infineon my-d?CSN - ISONAS - I-tag CSN - Keri KC-10x UID - Keri KC-26x - Keri NXT UID - NEDAP Prox - NFC Type 1 CSN (Topaz) - NFC Type 2 CSN - NFC Type 4 CSN - NXP ICODE?SLI CSN - Oyster CSN - Paradox - Postech - RF Logics UID - Rosslare - SecuraKey e*tag?CSN - SecuraKey-02 Radio Key - TechnoGym (Key Fob) CSN - Urmet - XceedID?MIFARE?CSN - Sony FeliCa CSN
rf IDEAS WAVE ID Plus Keystroke Access Control Reader
Part #: KT-800W1AKU-IP67 | SKU: RF 509879

Access Control Readers - rf IDEAS WAVE ID Plus Keystroke - V2 with iCLASS & Seos Surface Mount IP67 Black USB Reader
rf IDEAS WAVE ID Plus Keystroke Access Control Reader
Part #: KT-805W1AK9-IP67 | SKU: RF 509883

Access Control Readers - rf IDEAS WAVE ID Plus Keystroke - Surface Mount IP67 V2 Black 5v USB pwr tap RS-232 Reader

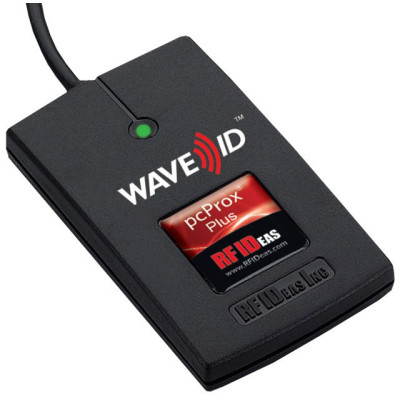

rf IDEAS pcProx Plus Access Control Reader
Part #: KT-805W1AKU-C72-IP67 | SKU: RF 509885

pcProx Plus, Enroll Surface Mount IP67 Black 6 ft. USB Reader
