215124 Ruckus

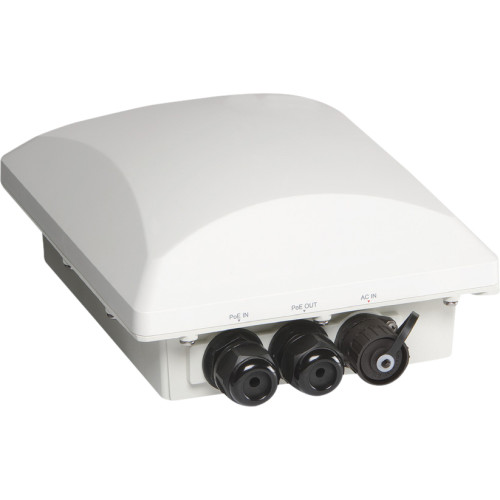

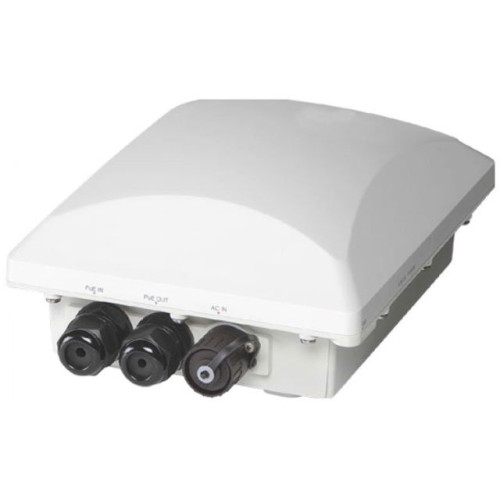

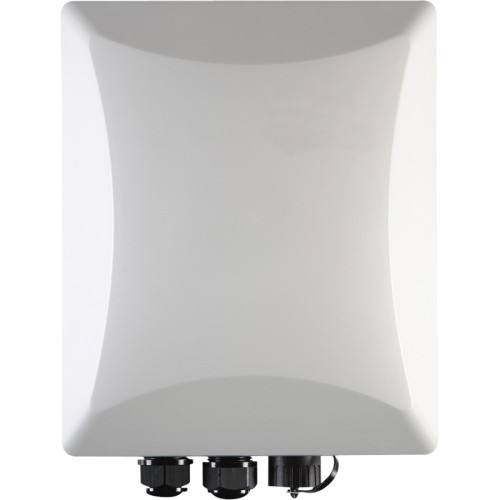

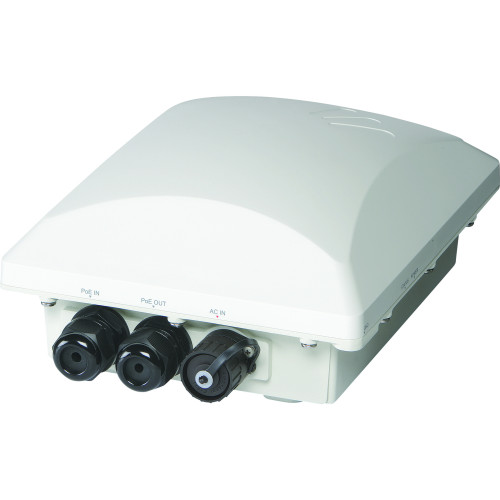

Ruckus ZoneFlex 7782 Access Point Part # 901-7782-US51

The Ruckus ZoneFlex™ 7782 Series comprise the industry"s first 802.11n outdoor access points featuring the option of a 30 degree narrow beam antenna, a 120 degree antenna, internal omnidirectional antennas, or an external antenna version along with BeamFlex™ technology to deliver up to 7 dB of additional signal gain and up to 15 dB of interference mitigation. The ZF 7782 Series was specifically designed to address the needs of very high-density deployments such as would be found around stadiums, arenas, airports, etc. These venues are characterized by tens of thousands of people in close proximity to each other and most are carrying mobile data devices of some sort. These are amongst the most challenging wireless environments imaginable and are ideally suited to Wi-Fi technology. High-density best practices usually call for a large number of AP's to get the needed capacity, but care must be taken to limit co-channel interference. The narrow beam antenna in the ZF 7782-N is able to focus RF energy into a specific area, which greatly reduces the opportunity for interference and increases network performance.

901-7782-US51 - Ruckus ZoneFlex 7782-S Access Point

Part Details: ZoneFlex 7782-S, 802.11n Outdoor Wireless Access Point, 3x3: 3 Stream, 120-degree sector Beamflex coverage, 2.4GHz and 5GHz concurrent dual band, Dual 10/100/1000 Ethernet ports, 90-264 Vac, POE in and POE out, GPS, IP-67 Outdoor enclosure, -40 to 65C Operating Temperature. Includes weatherized AC connector, flexible AnyAngle mounting kit and standard 1 year warranty. Does not include power adapter, PoE injector or AC power cord. Requires user supplied AC cord. This part requires the purchase of WatchDog Support.

Additional Information

Antenna Internal - 120 degree
Antenna Gain 4 dB
Data Transfer rate 900 Mbps
Environment Outdoor
MIMO 3x3:3
Manufacturer Ruckus
Mesh Yes
Power AC
Product Condition New
Radio Count Dual
Wi-Fi Band 5GHz
Wireless Type 802.11a/b/g/n
