Additional Information
| Interface Options | Ethernet |
|---|---|
| Manufacturer | SATO |
| Max Roll Outer Diameter | 8.6 |
| Model Name | CL412e |
| Print Resolution | 305 dpi |
| Print Speed | 6 ips |
| Printer Type | Industrial |
| Printing Technology | Thermal Transfer |
| Ribbon Core Size | 1 inch |

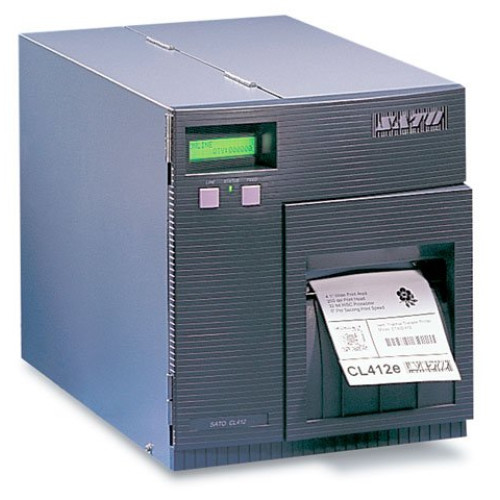

SATO CL412e Specs
Technical Information
- Maximum Mono Print Speed: 6 in/s
- Maximum Print Resolution: 305 dpi
- Maximum Print Width: 4.10"
- Recommended Use: Label Print
- Features: Rewinder
- Barcode Symbology Supported:
- UPC-A
- UPC-E
- ITF-14
- UCC/EAN 128
- Code 128
- Interleaved 2 of 5
- Code 39
- RSS
- POSTNET
- EAN-13
- EAN-8
- Code 93
- MSI
- Codabar
- Bookland
- Matrix 25
- Data Matrix
- Maxi Code
- PDF-417
- QR Code
- Micro PDF-417
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Product Series: e Series
- Brand Name: Sato
- Manufacturer: Sato Corporation
- Product Model: CL412e
- Product Name: CL412e Thermal Label Printer
Physical Characteristics
- Height: 12.6"
- Width: 10.7"
- Depth: 16.9"
Media Types & Handling
- Maximum Label Width: 5.10"
- Maximum Label Length: 0.24"
- Media Type:
- Roll Fed
- Fanfold
- Die-cut Label
- Continuous Form
- Direct Thermal Label
- Synthetic Media
- Tag Stock
- Thermal Transfer Label
- Media Sensor:
- Reflective Media Sensor
- Transmissive Media Sensor
- Label Core Size: 3"
- Maximum Roll Diameter: 8.60"
Other
- Platform Supported: PC
- Certifications & Standards:
- UL
- CSA
- FCC Class A
- Additional Information:
- WPC Plus printer control server
- Graphic Support: Printing and storage of *.PCX, *.BMP format, SATO Hex/binary
- Sensing:
- Adjustable transmissive sensor for gap
- Reflective sensor for black mark
- Automatic, programmable top of form
- Ribbon-out sensor
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
Memory
- Standard Memory: 16 MB
- Flash Memory: 2 MB
Network & Communication
- Ethernet: Yes
- Ethernet Technology: Fast Ethernet
Warranty
- Limited Warranty: 1 Year
