Additional Information
| Interface Options | Wi-Fi |
|---|---|
| Manufacturer | SATO |
| Max Roll Outer Diameter | 10.43 |
| Model Name | GT424e |
| Print Resolution | 609 dpi |
| Print Speed | 6 ips |
| Printer Type | Industrial |
| Printing Technology | Thermal Transfer |

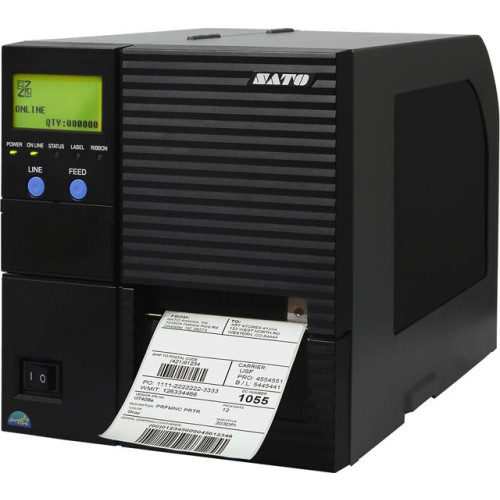

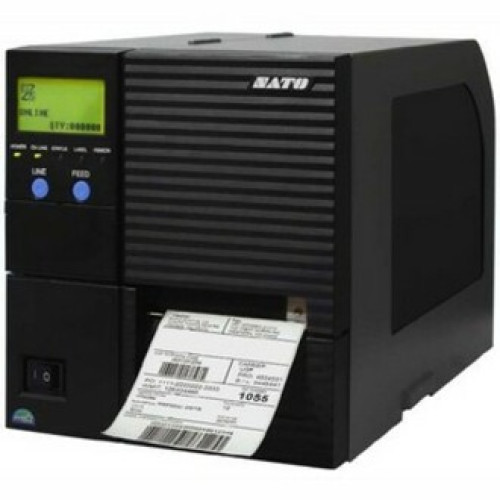

SATO GT424e Specs
Technical Information
- Maximum Mono Print Speed: 6 in/s
- Maximum Print Resolution: 609 dpi
- Print Color: Monochrome
- Maximum Print Width: 4.10"
- Recommended Use: Label Print
- Features: Dispenser
- Barcode Symbology Supported:
- UPC-A
- UPC-E
- UCC/EAN 128
- Interleaved 2 of 5
- Code 39
- Code 128
- EAN-8
- EAN-13
- Code 93
- RSS-14
- POSTNET
- NW-7
- Matrix 25
- MSI
- Bookland
- Data Matrix
- PDF-417
- Micro PDF
- Maxi Code
- Micro PDF-417
- QR Code
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Product Series: e Series
- Brand Name: Sato
- Manufacturer: Sato Corporation
- Product Model: GT424e
- Product Name: GT424e Thermal Label Printer
Physical Characteristics
- Height: 12"
- Width: 10.7"
- Depth: 17.9"
Other
- Certifications & Standards:
- FCC Class A
- U/L
- CSA
- CE
- TÜV
- CCC
- Additional Information:
- Wireless Ethernet (802.11g)
- Reflective Sensor (for use with pre-printed marks)
- Adjustable See -Through Sensor (for die-cut label with gap)
- Self Diagnosis Tools:
- Test Print
- Head Check
- Paper End Detection
- Open Cutter-Cover Detection
- Memory Card Error Detection
- Auto Sensing for Continuous Forms
- Ribbon Near-End/End Detection (remaining 49' - 98' detection)
Media Types & Handling
- Maximum Label Width: 5.04"
- Maximum Label Length: 32.80"
- Media Type:
- Roll Paper
- Fanfold
- Die-cut Label
- Media Size:
- Custom Size - 5" x 32.80"
- 5" x Roll Paper
- Media Sensor:
- Reflective Media Sensor
- Transmissive Media Sensor
- Maximum Roll Diameter: 10.43"
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
Warranty
- Limited Warranty: 1 Year
Network & Communication
- Wireless LAN: Yes
Memory
- Flash Memory: 6 MB
