| Interface Options | USB |
|---|---|
| Labels Per Day | 5,001 - 10,000 |
| Manufacturer | SATO |
| Max Roll Outer Diameter | 8.6 |
| Model Name | M-10e |
| Print Resolution | 305 dpi |
| Print Speed | 5 ips |
| Printer Type | Industrial |
| Printing Technology | Thermal Transfer |
| Ribbon Core Size | 1 inch |

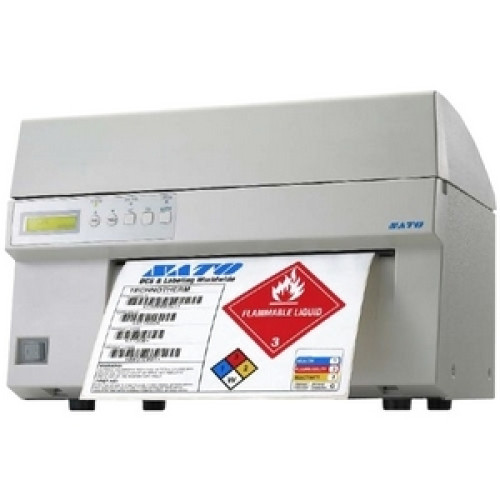

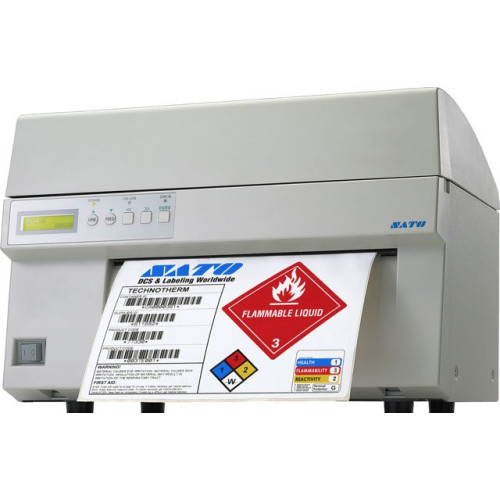

SATO M-10e Specs
Technical Information
- Maximum Mono Print Speed: 5 in/s
- Maximum Print Resolution: 305 dpi
- Maximum Print Width: 10.50"
- Recommended Use: Label Print
- Barcode Symbology Supported:
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- Code 39
- Code 93
- Code 128
- Codabar
- MSI
- Bookland
- Industrial 2 of 5
- Interleaved 2 of 5
- Matrix 25
- POSTNET
- UCC/EAN 128
- RSS
- PDF-417
- Micro PDF-417
- Truncated PDF417
- Maxi Code
- Data Matrix
- QR Code
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Product Series: e Series
- Brand Name: Sato
- Manufacturer: Sato Corporation
- Product Model: M-10e
- Product Name: M-10e Thermal Label Printer
Physical Characteristics
- Height: 12.6"
- Width: 18.7"
- Depth: 12.3"
Interfaces/Ports
- USB: Yes
Media Types & Handling
- Maximum Label Width: 11.80"
- Maximum Label Length: 17"
- Media Type:
- Fanfold
- Roll Fed
- Die-cut Label
- Continuous Form
- Direct Thermal Label
- Synthetic Media
- Notched
- Black Bar
- Tag Stock
- Maximum Roll Diameter: 7.80"
Other
- Platform Supported: PC
- Additional Information:
- Adjustable transmissive sensor for gap
- Reflective sensor for black mark
- Automatic programmable setting of top of form
- Label present sensor
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
Memory
- Standard Memory: 16 MB
- Flash Memory: 6 MB
Warranty
- Limited Warranty: 1 Year
